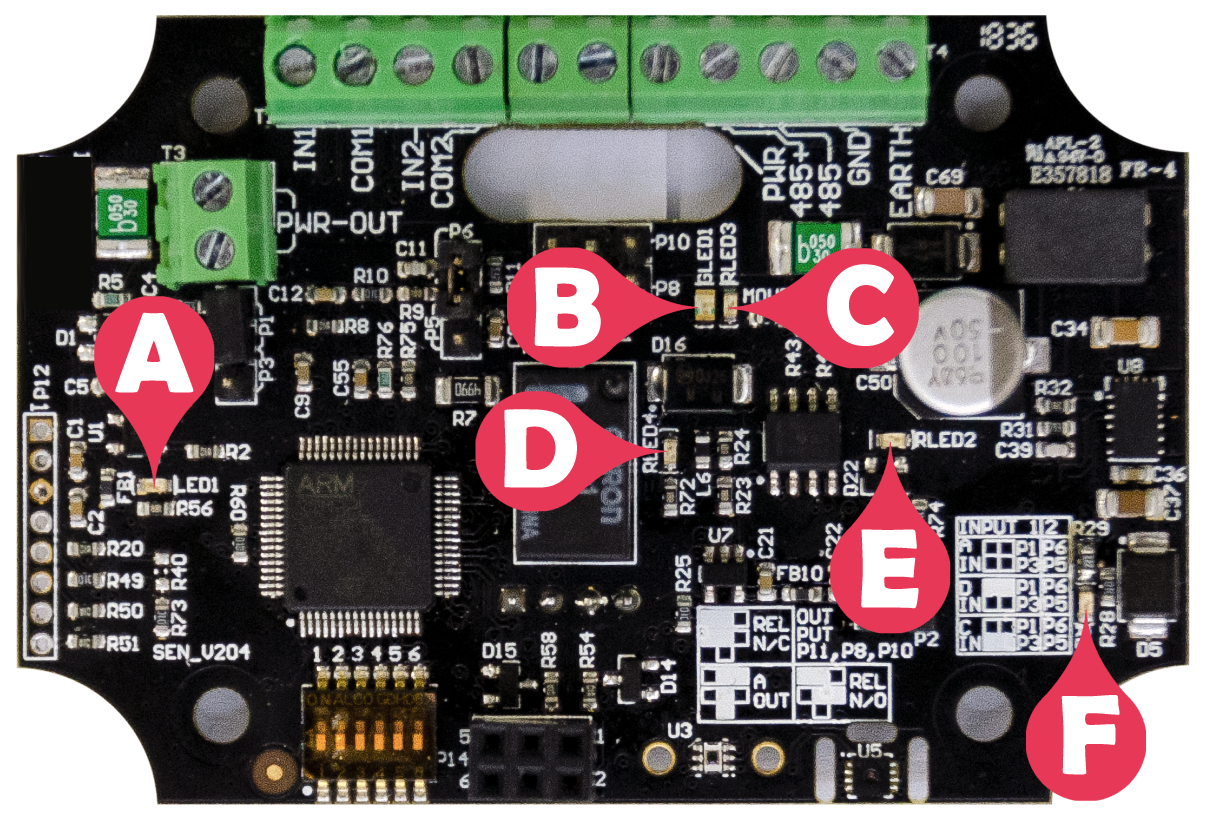

LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1 |
System status 1 |
ON - indicates that the device is online to the S1000 Controller |
|
B |
GLED1 |
RS485 port transmit |
Flashing - indicates data is being transmitted on the communication line |
|
C |
RLED3 |
RS485 port receive |
Flashing - indicates data is being received on the communication line |
|
D |
RLED4 |
Output |
ON - indicates output is activated |
|
E |
RLED2 |
+10V |
ON - indicates power is available |
|
F |
RLED1 |
+5V |
ON - indicates power is available |
