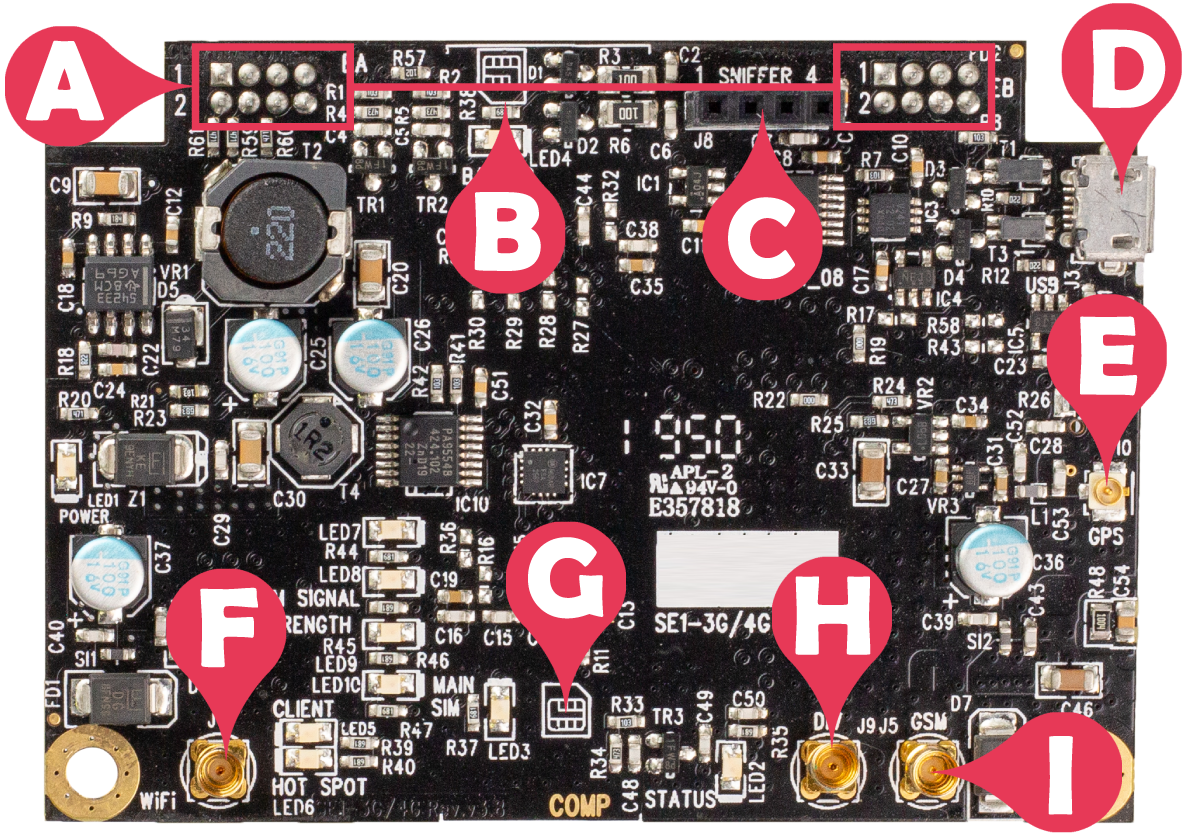

Connections
|
Label # |
Name |
Description |
|---|---|---|
|
A |
Expansion plug |
Connects to the S1000 Controller |
|
B |
SIM socket 2 |
Backup SIM card (underneath the PCB) |
|
C |
Sniffer |
Connects a serial data analyzer to monitor sync data to the modem |
|
D |
USB |
Used for troubleshooting and debugging |
|
E |
GPS antenna |
A connection for the GPS antenna cable (SE1-CELL-PCB-L only) |
|
F |
WiFi antenna |
A connection for the WiFi antenna cable |
|
G |
SIM socket 1 |
The main SIM card (underneath the PCB) |
|
H |
DIV antenna |
A connection for a diversity antenna cable |
|
I |
Cellular antenna |
A connection for a GSM antenna cable |
Tip: The Cellular Expansion Card enables you to install different types of antennas depending on your required network environment.
