Wiring

Connect to a Sensor Remote Device to provide local light, temperature, humidity and motion detection. Wiring can use the connection pairs PL4-PL5 or PL5-PL6 using standard connections.

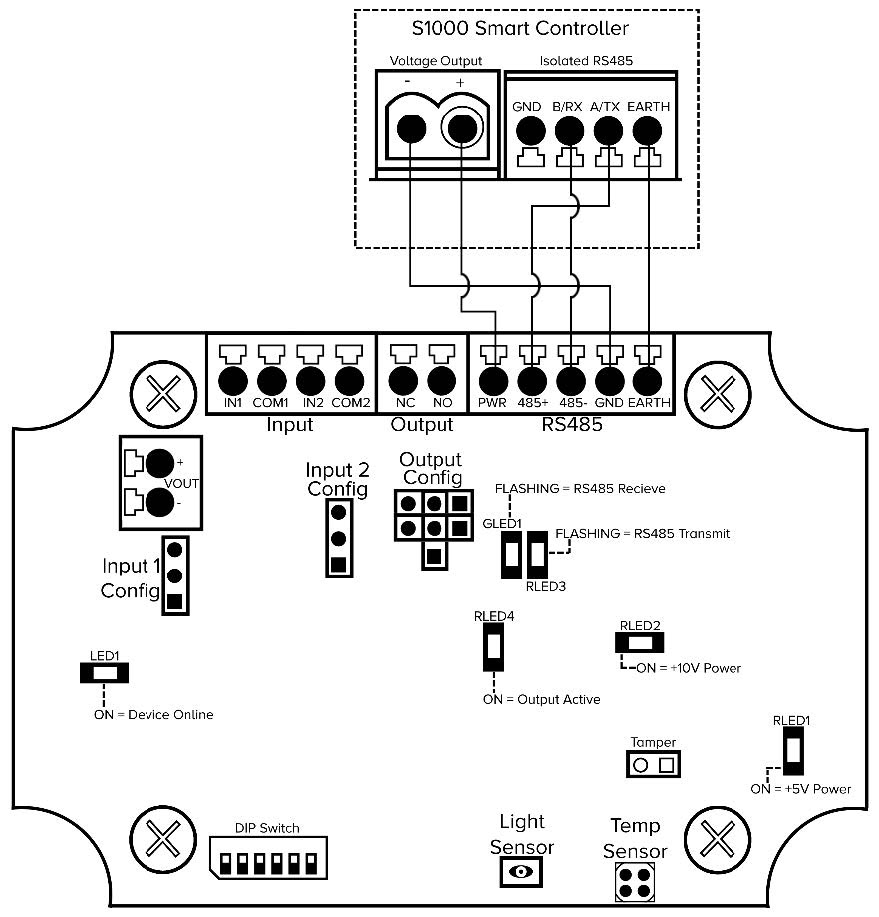

Connection pairs for wiring labeled on the S1000.

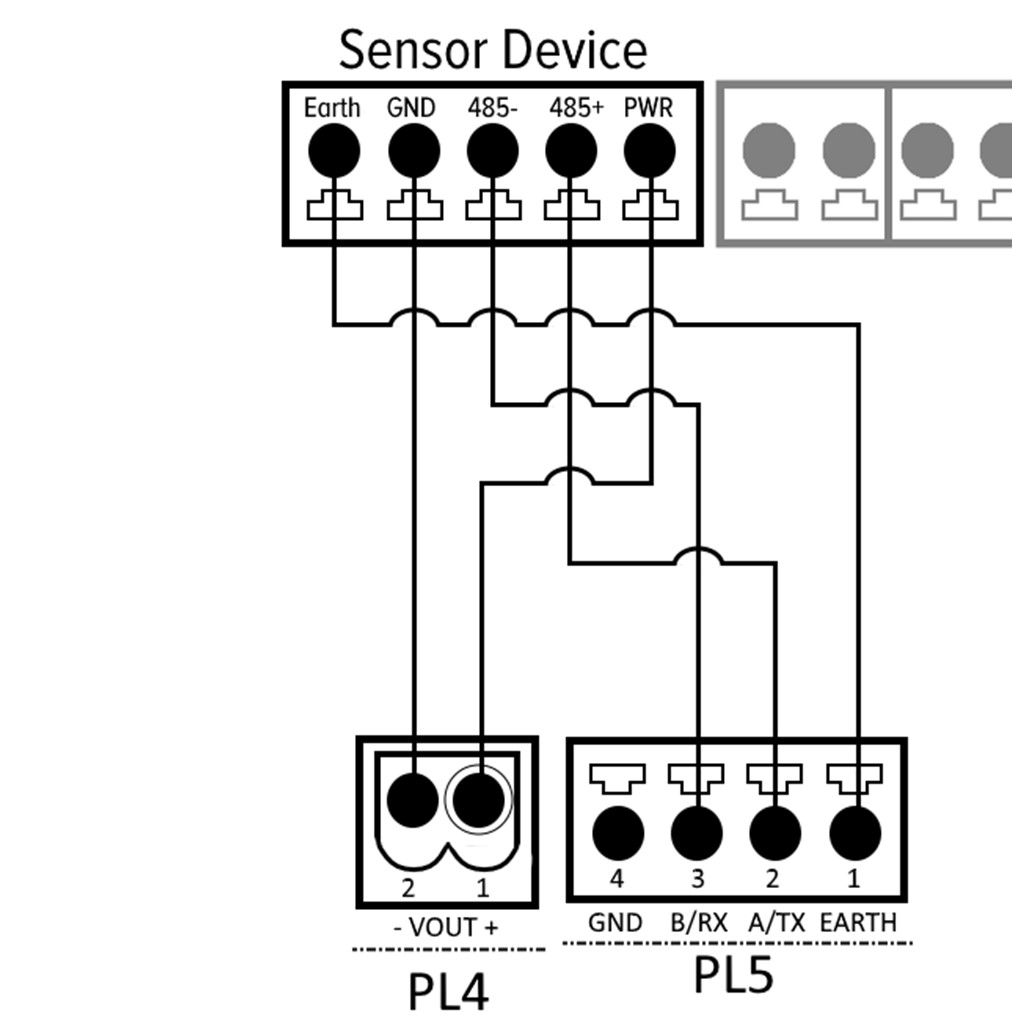

RS485 PL4 and PL5 connection

Wiring the Sensor Remote Device using the PL4 and PL5 connection pairs.

RS485 PL5 and PL6 connection

Wiring the Sensor Remote Device using the PL5 and PL6 connection pairs.

The Sensor Remote Expansion Device allows you to receive a pulse signal from a third party device (water meter, power meter, and so on) to count the number of actuations. Wiring can use the IN1 or IN2 connection.

Wiring for the Sensor Input Pulse Counter.

Tip: Unlike the S1000 Controller, the sensor inputs do not lock out a connection pair.

Input 1

Input 2

Input type

Voltage input pulse

Dry contact

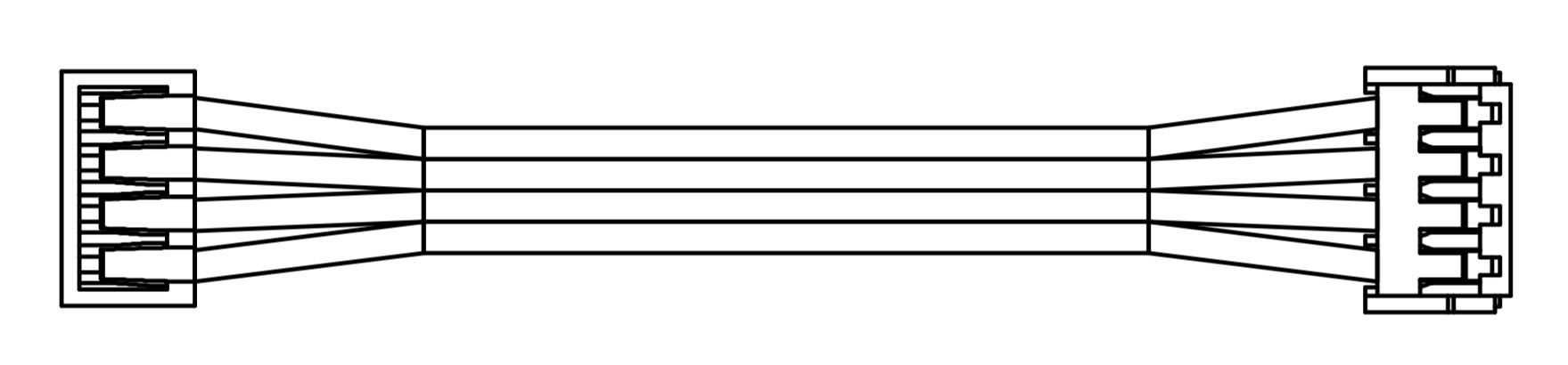

Connect the sensor expansion P1 to the sensor remote devices P4 using the attached cable harness.

Connecting the sensor expansion to the sensor remote device using the attached cable harness.

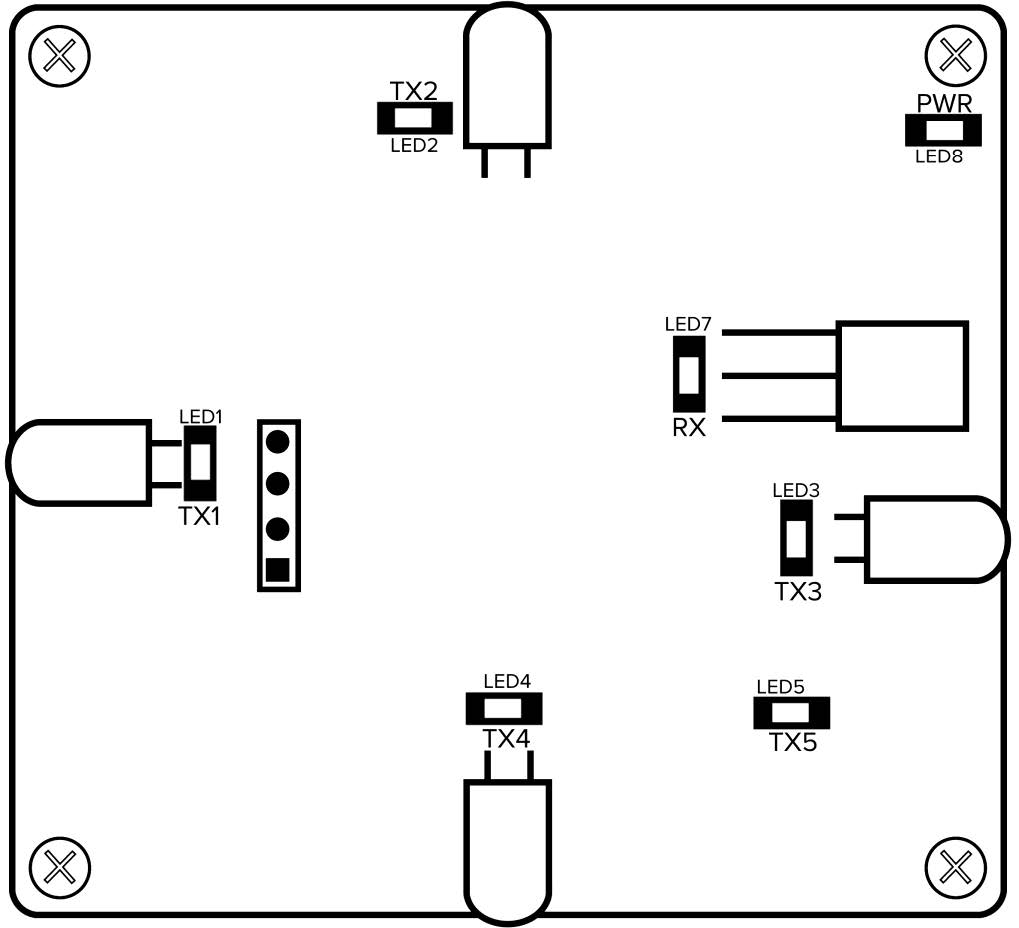

Connection diagram for the Sensor Expansion Card.

Connection diagram for sensor remote expansion device.

There is only one way to connect the sensor expansion board to the analog sensor interface.

A Sensor Expansion Board attached to the Analog Sensor Interface Board.
