Motion Sensors
Use a 6-axis Motion Tracker that combines a 3-axis gyroscope and a 3-axis accelerometer, for inertial measurements.
Features
- Digital output X-, Y- and Z-axis angular rate sensors (gyroscopes) with a full scale range of ±250°/sec, ±500°/sec, ±1000°/sec and ±2000°/sec and integrated 16-bit ADCs
- Digital output X-, Y- and Z-axis accelerometer with a full scale range of ±2g (0.07oz), ±4g (±0.14oz), ±8g (±0.3oz) and ±16g (±0.6oz), and integrated 16-bit ADCs
- Factory calibrated sensitivity scale factor
- Wake-on-motion interrupt for low power operation of applications processor
- Minimal cross-axis sensitivity between the accelerometer and gyroscope axes.
Performance graphs
Sensor bias at 25°C (77°F)

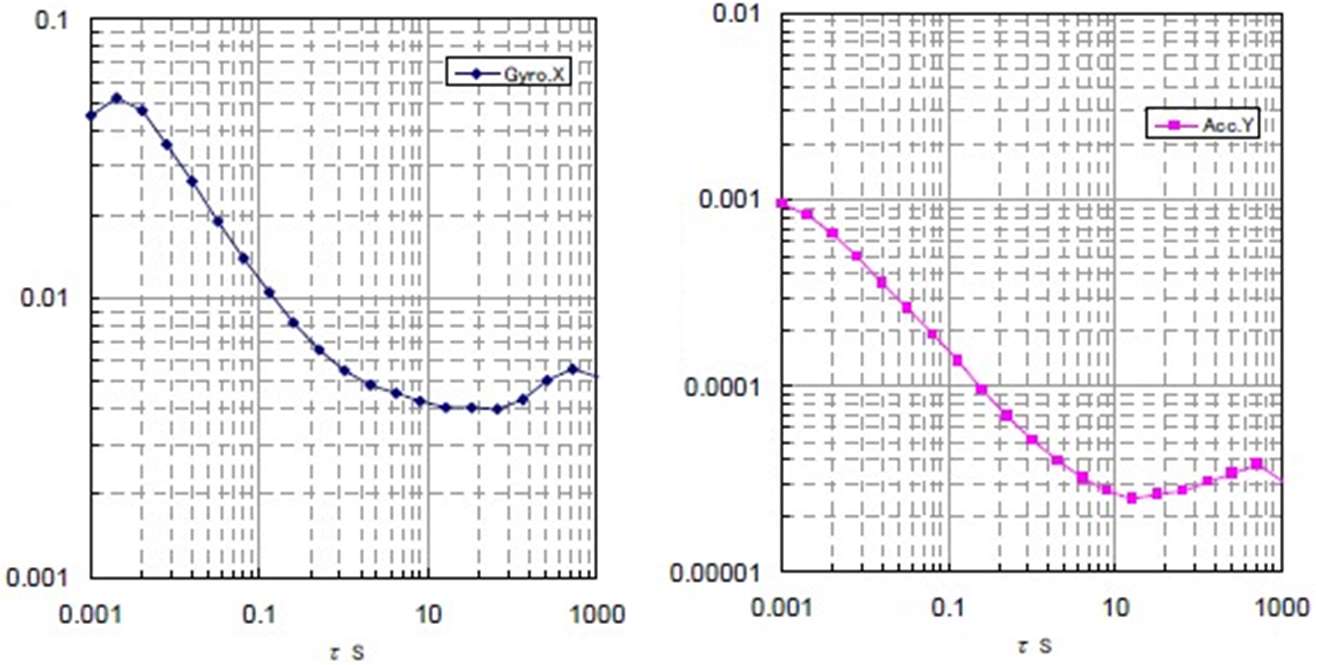

Allan variance
