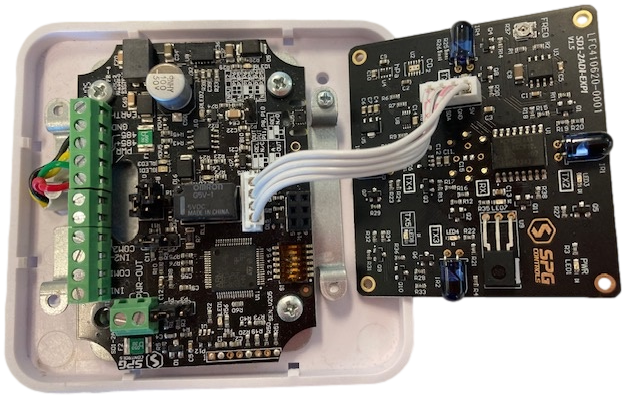

Sensor Remote Device
The Sensor Remote Device (SD1-2ADI-PCB) provides analog sensing information that is collected by the S1000 Controller and then used to make local decisions, as well as to being passed to Sonitrol CORE for logging.
The Sensor Remote Device runs on an OSDP communication. Up to 16 devices can be connected to the S1000 Controller. Each sensor device supports onboard temperature and humidity, light detection and an accelerometer for movement detection.
There are 2 additional digital / analog inputs, with the analog inputs supporting both voltage and current monitoring of third party sensor devices. There is also 1 digital / analog output.
Sensor remote devices include:
