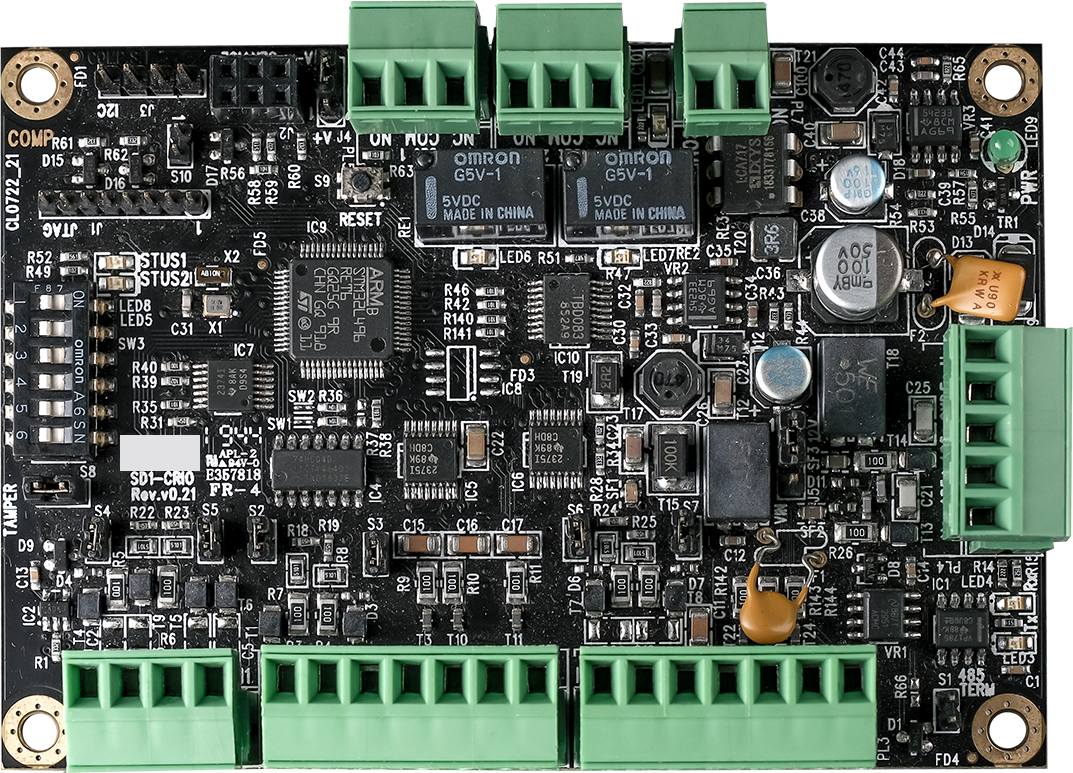

Card Reader Interface Board
The Card Reader Interface Board connects to the S1000 Controller using the encrypted OSDP bus. Each of the 2 OSDP buses can connect up to 16 devices, making a total of 32 Card Reader Interface Boards that can be connected to the S1000. If each of the 32 Card Reader Interface Boards supports 2 doors, then a maximum of 64 doors can be accommodated - this can be 32 doors with read IN and read OUT or 64 doors with read IN and egress OUT.
The board has built-in inputs for dual Wiegand with LEDs and buzzer connections, 2 normal relays, and 1 solid state relay which provides unlimited activation of strikes. There are 2 digital inputs. Each input is configurable to perform multiple functions, such as door contact and egress.
Dual flash memory provides operating redundancy, with no down time while upgrading new firmware. The 2-Door Controller also can be used as an I/O device. It provides 6 inputs, 3 relays and 6 open collector outputs. All inputs are configurable as either digital or analog inputs.
The Card Reader Interface Board can support up to 1000 offline degraded mode users.
If the Card Reader Interface Board loses connection with the S1000 Controller, users can still access the connected doors in degraded mode. Up to 1000 offline transactions are stored and reported to the S1000 Controller when the Card Reader Interface Board re-connects online. The degraded mode user access expires after 24 hours of the last valid login.
