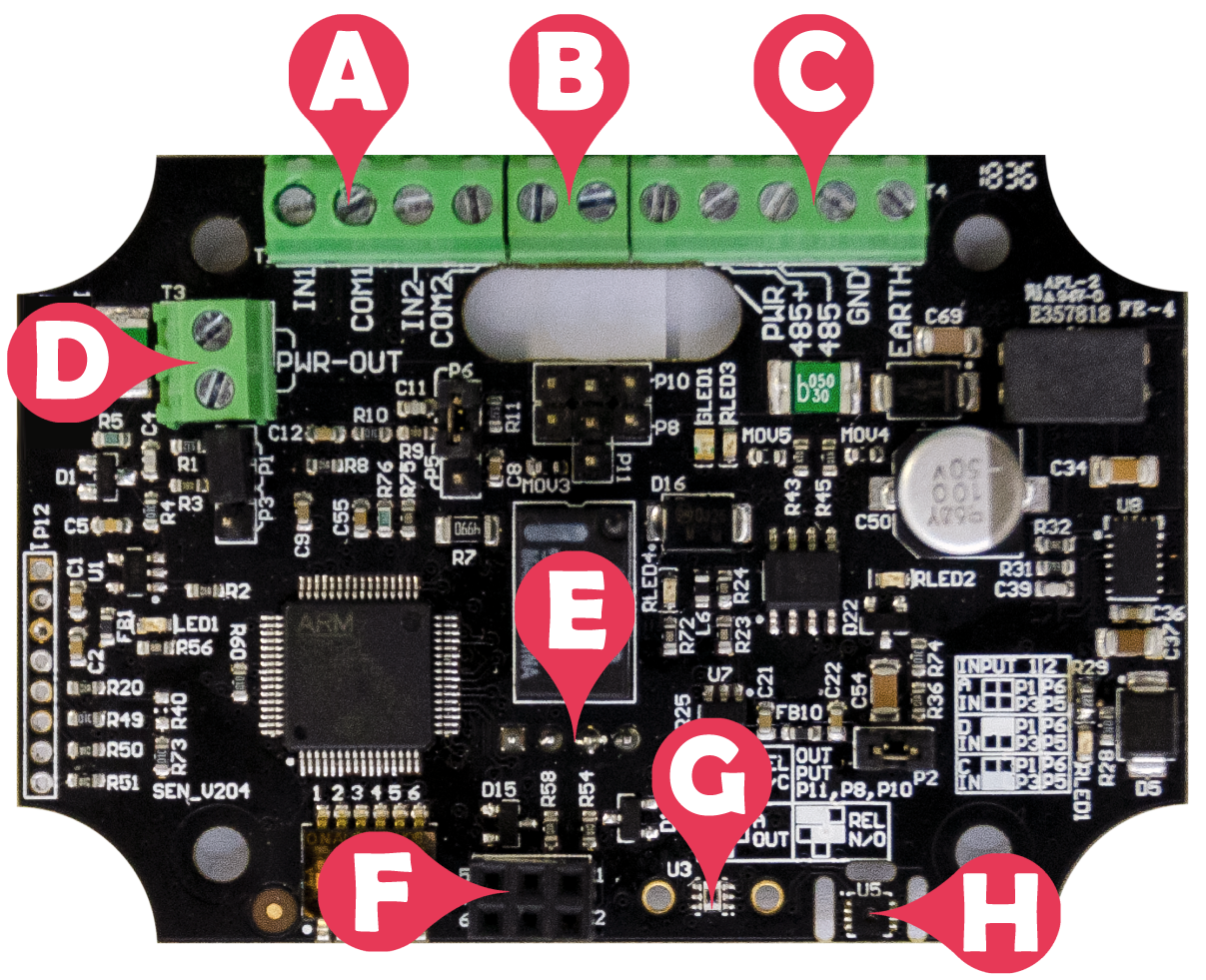

Connections
|
Function |
Connection |
Default value |
Range |
Indicator |
|---|---|---|---|---|
|
Label #A End-of-line (EOL) monitored analog current or voltage 1 and 2 |
||||
|
EOL monitored input 1 |
IN1 and COM |
10K |
1K to 50K |
|
|
Analog input 1 |
IN1 and COM |
|
0VDC to 10VDC or 0mA to 20mA |
|
|
EOL monitored input 2 |
IN1 and COM |
10K |
1K to 50K |
|
|
Analog input 2 |
IN1 and COM |
|
0VDC to 10VDC or 0mA to 20mA |
|
|
Label #B Relay output |
||||
|
Relay output |
1-NC and 2-NO |
|
1A at 24VDC |
|
|
Label #C RS485 serial port (PL5) |
||||
|
Power in |
PWR |
|
|
|
|
RS485 D+ |
485+ |
|
|
|
|
RS485 D- |
485- |
|
||
|
Ground |
GND |
|
||
|
Cable shield connection |
EARTH |
|
|
|
|
Label #D Voltage output (PL4) |
||||
|
Voltage output + |
VOUT+ |
|
0.5A at 10VDC to 16VDC |
|
|
Voltage output - |
VOUT- |
|
0V |
|
|
Label #E 12C port |
||||
|
Connection port for the sensor expansion |
|
|
|
|
|
Label #F Service port |
||||
|
Label #G Light sensor |
||||
|
Label #H Temperature and humidity sensor |
||||
