Expansion Cards
Three expansion module sockets are available on the S1000 Controller. A maximum of 3 expansion cards, in any combination, can therefore, be added to the S1000 Controller.
A number of expansion cards are available:
- 6 Output Expansion Card
- 8 Input 2 Output Expansion Card
- Audio Converter Expansion Card
- Card Reader Interface Expansion Card
- Cellular Expansion Card

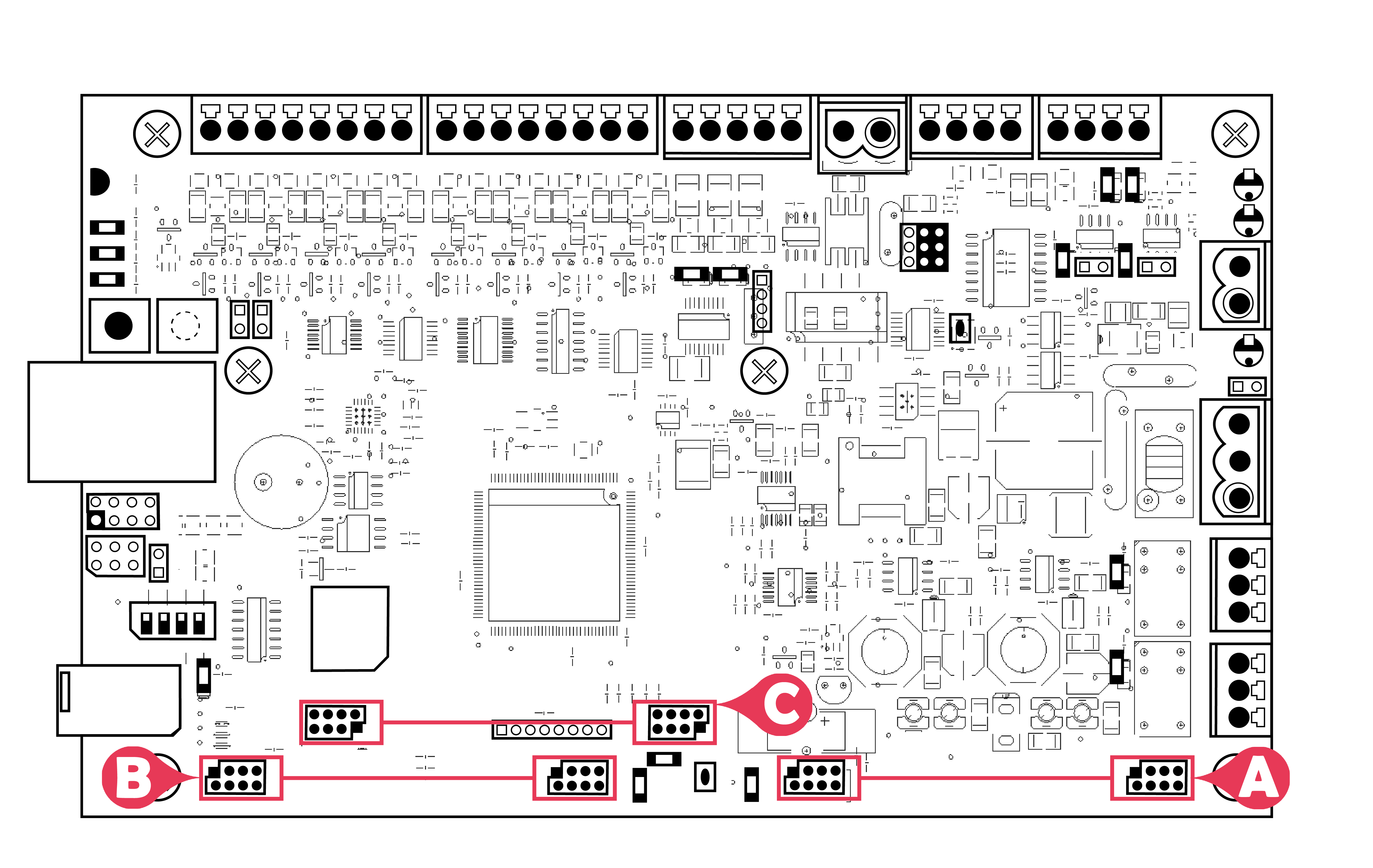

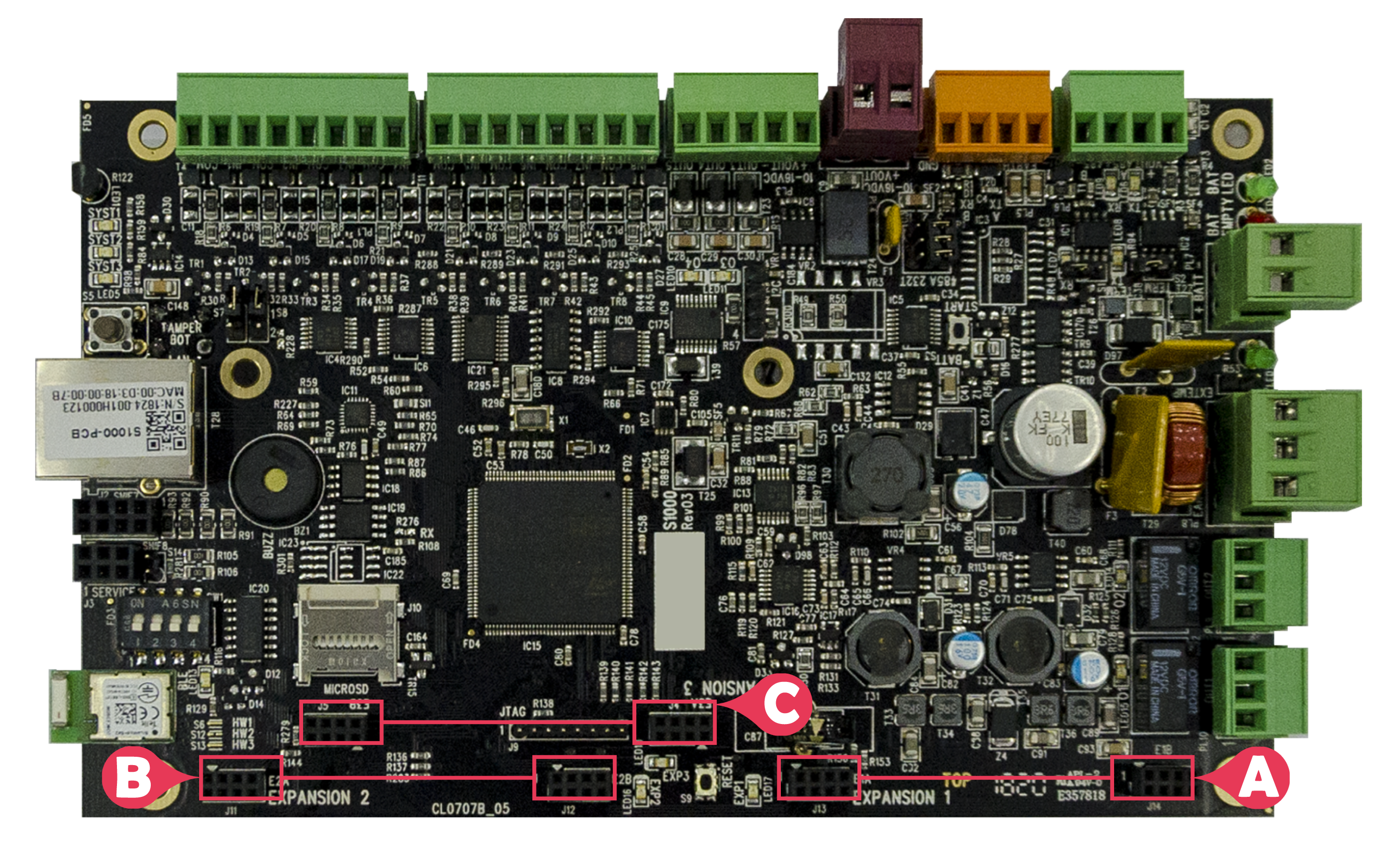

The expansion module sockets on the S1000 Controller are shown below:
|
Label # |
Socket |
Connection |
Indicator |
Function |
|---|---|---|---|---|
|
A |
1 |
Expansion 1 E1A and E1B (J13 and J14) |
LED17 |
Connect an expansion card |
|
B |
2 |
Expansion 2 E2A and E2B (J11 and J12) |
LED16 |
|
|
C |
3 |
Expansion 3 E3A and E3B (J4 and J5) |
LED18 |
