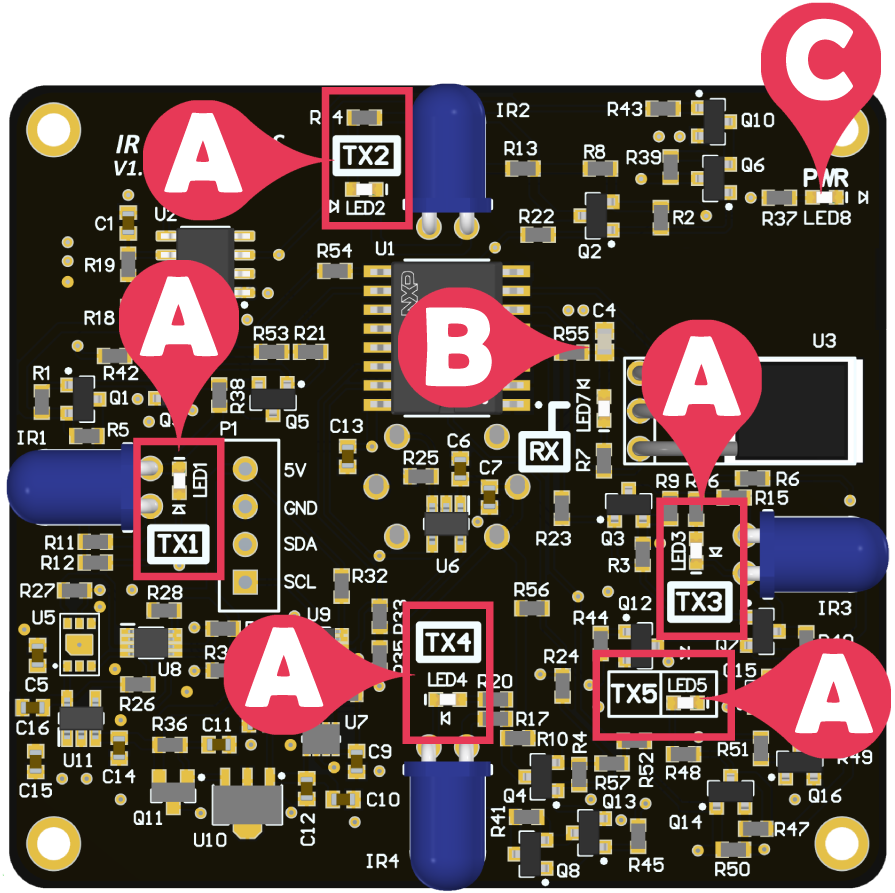

Expansion Device LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1-5 |
Tx infrared transmission direction |
Flashing - indicates infrared data is being transmitted on the relative direction |
|
B |
LED7 |
Rx infrared receiver |
Flashing - indicates infrared data is being received |
|
C |
LED8 |
Power |
ON - indicates the device is online to the Sensor Remote Device |
