Light Sensors
You can measure the intensity of light using the Sensor Remote device. The spectral response of the sensor tightly matches the photopic response of the human eye and includes significant infrared rejection.
Features
- Precision optical filtering to match the human eye
- Typically rejects >99% of infrared
- 23-bit effective dynamic range with automatic gain ranging
- 12 binary-weighted full scale range settings
- Typically <0.2% matching between ranges
- Flexible interrupt system.
Performance graphs
|

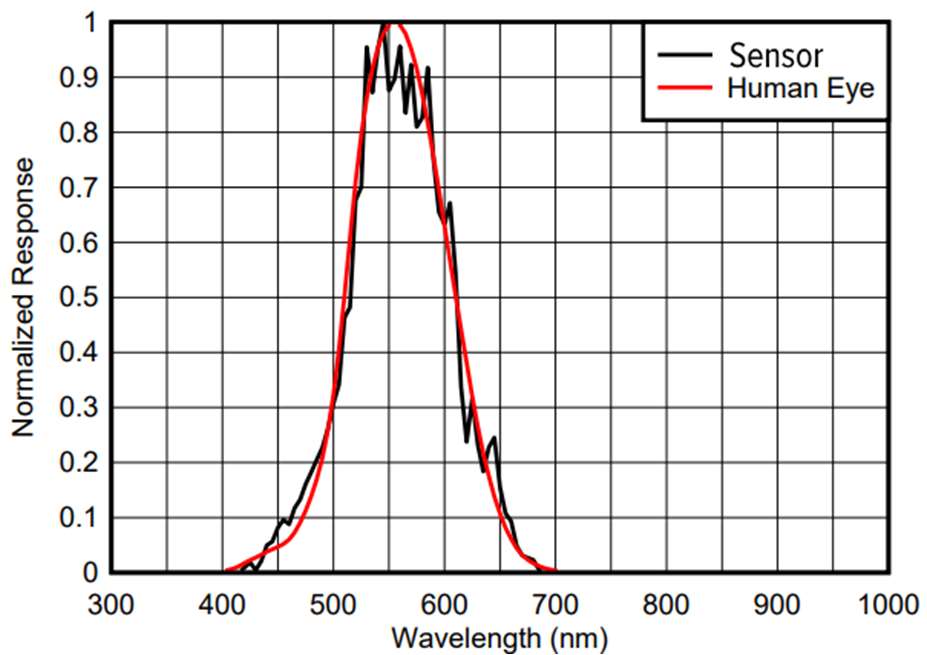

Spectral response vs wavelength (sensor and human eye)
|

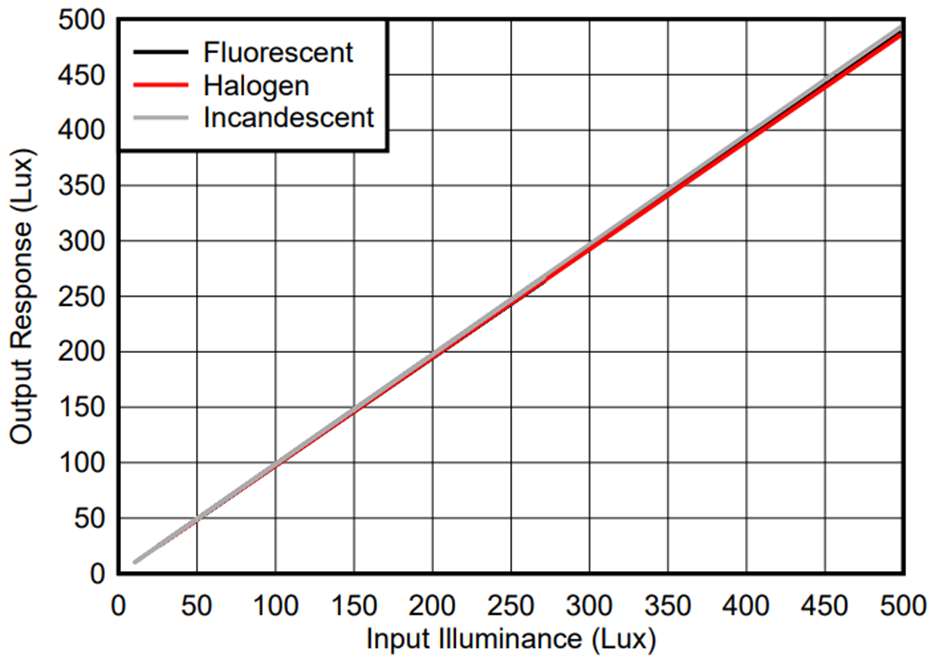

Multiple light sources (fluorescent, halogen, incandescent)
|
|

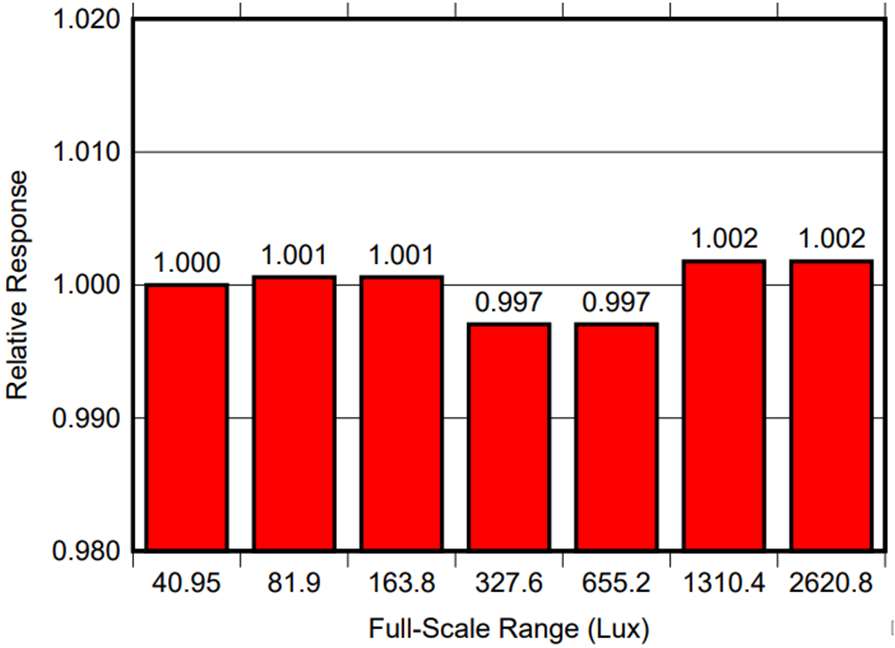

Full scale range matching (lowest 7 ranges)
|
