Power Supplies

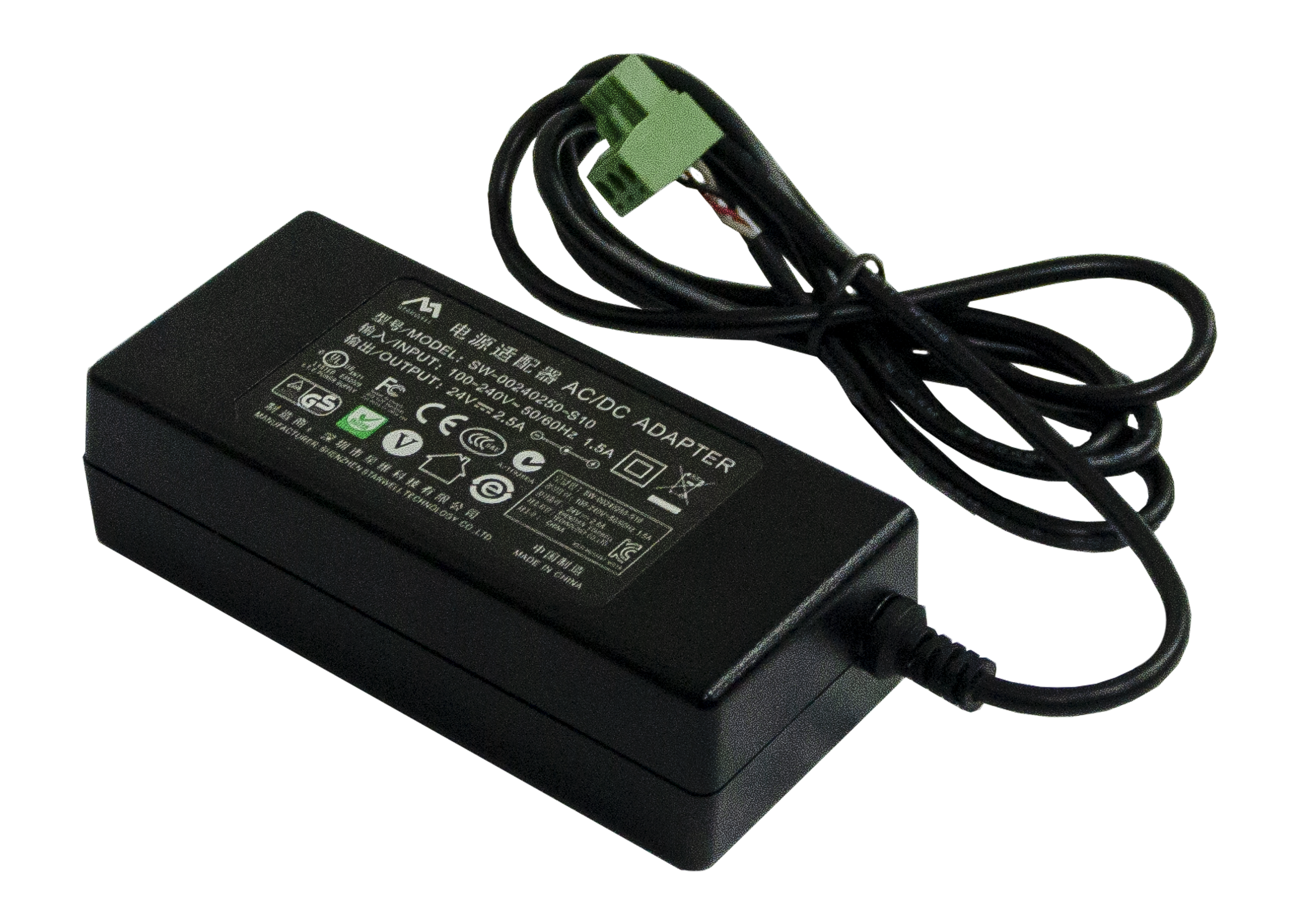

The Sonitrol Power Supply is used with the S1000 Controller and related components to offer optimum performance. The power supply kit SP1-PSU-2A-UL includes a surge protection device along with the power supply.
Note: Power Supply SP1-PSU-2A-UL is not suitable for use in external or supervised facilities.
In a normal set up with 1 keypad, a 4G card, an I/O card and PSTN card, the average current consumption is 187mA at 24V.
With only the board powered, the average current consumption is 35mA.
The maximum current the board can consume at 24V is 2A.
