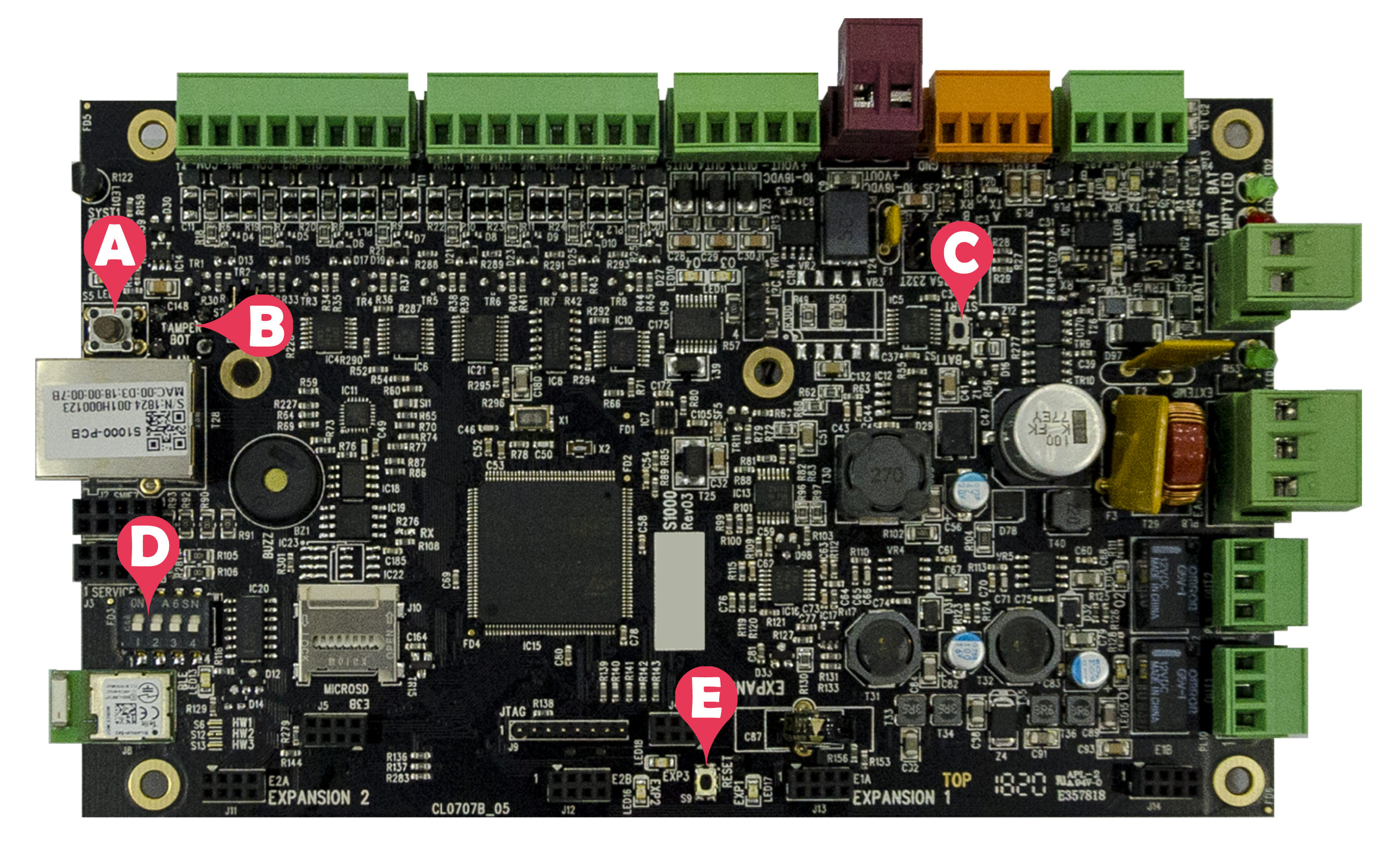

Switches

Label #	Switch	Description
A	Pushbutton switch S5	Enclosure lid tamper sensor
B	Pushbutton switch S11	Enclosure off-the-wall tamper sensor
C	Pushbutton switch S3	Start the Remote IO with battery power only
D	DIP switch SW1	Switch 1 to Switch 4: Set the OSDP address on the bus Switch 5 and Switch 6: Unused Device address 1 Device address 2 Device address 3 Device address 4 Device address 5
E	Pushbutton switch S9	Reset the Remote IO
