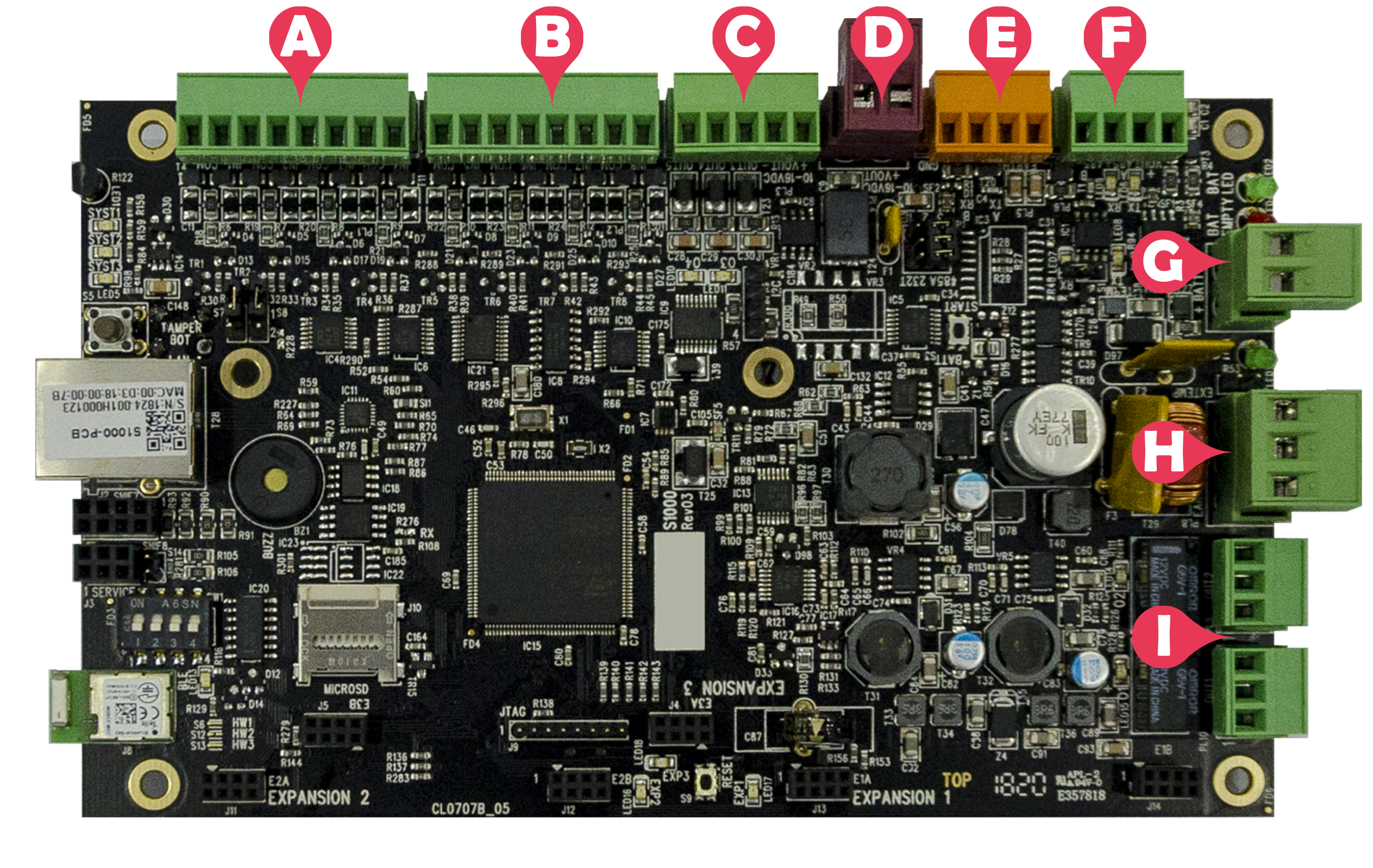

Connections
|
Function |
Connection |
Default value |
Range |
Indicator |
|---|---|---|---|---|
|
Label #A End-of-line (EOL) monitored and analog inputs 1 to 4 (PL1) |
||||
|
EOL monitored input 1 |
IN1 and COM (PL1, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 1 |
IN1 and COM (PL1, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 2 |
IN2 and COM (PL1, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 2 |
IN2 and COM (PL1, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 3 |
IN3 and COM (PL1, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 3 |
IN3 and COM (PL1, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 4 |
IN4 and COM (PL1, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 4 |
IN4 and COM (PL1, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #B End-of-line (EOL) monitored and analog inputs 5 to 8 (PL2) |
||||
|
EOL monitored input 5 |
IN5 and COM (PL2, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 5 |
IN5 and COM (PL2, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 6 |
IN6 and COM (PL2, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 6 |
IN6 and COM (PL2, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 7 |
IN7 and COM (PL2, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 7 |
IN7 and COM (PL2, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 8 |
IN8 and COM (PL2, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 8 |
IN8 and COM (PL2, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #C Voltage output and O/C (open collector) outputs 3 to 5 (PL3) |
||||
|
Voltage output |
VOUT+ (PL3, 1) |
|
0.5A at 10VDC to 16VDC |
|
|
Voltage output |
VOUT- (PL3, 2) |
|
0V |
|
|
O/C output 3 |
OUT3 (PL3, 3) |
|
0mA to 100mA |
LED11 |
|
O/C output 4 |
OUT4 (PL3, 4) |
|
0mA to 100mA |
LED10 |
|
O/C output 5 |
OUT5 (PL3, 5) |
|
0mA to 100mA |
|
|
Label #D Voltage output (PL4) |
||||
|
Voltage output + |
VOUT+ (PL4, 1) |
|
0.5A at 10VDC to 16VDC |
|
|
Voltage output - |
VOUT- (PL4, 2) |
|
0V |
|
|
Label #E RS485/RS232 (optionally isolated) serial port (PL5) |
||||
|
Cable shield connection |
EARTH (PL5, 1) |
|
|
|
|
RS485 D+/RS232 Tx |
A/TX (PL5, 2) |
|
|
LED8 |
|
RS485 D-/RS232 Rx |
B/RX (PL5, 3) |
|
|
LED7 |
|
Ground |
OUT3 (PL5, 4) |
|
|
|
|
Figure #F RS485 serial port (PL6 ) Any devices connected to data ports (RS485 or RS232) of the Remote IO and external power supply providing power to the system, must comply with the Information Technology Equipment (ITE) Safety Standard EN 60950-1:2006+A2:2013 or EN 62368-1:2014. |
||||
|
Voltage output + |
VOUT+ (PL6, 1) |
|
10VDC to 16VDC |
|
|
RS485 D+ |
A (PL6, 2) |
|
|
LED6 |
|
RS485 D- |
B (PL6, 3) |
|
|
LED9 |
|
Voltage output - |
VOUT- (PL6, 1) |
|
0V |
|
|
Label #G Battery input (PL7 ) |
||||
|
Battery input + |
BATT+ (PL7, 1) |
|
12VDC |
LED2 |
|
Battery input - |
BATT- (PL7, 2) |
|
0V |
|
|
Label #H Power supply input (PL8 ) The Remote IO power supply can be the same connection as the S1000 Controller. |
||||
|
Power supply earth |
EARTH (PL8, 1) |
|
|
|
|
Power supply input |
V+ (PL8, 2) |
|
10VDC to 16VDC |
LED12 |
|
Power supply ground |
0V (PL8, 3) |
|
0V |
|
|
Label #I Relay outputs 1 to 2 (PL10 and PL9 ) All communication between the Remote IO and the supervising station receiving equipment is protected by message data encryption and communication connection authentication using industry standard encryption. |
||||
|
Relay output 1 |
OUT1 (PL10, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED15 |
|
Relay output 2 |
OUT2 (PL9, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED14 |
