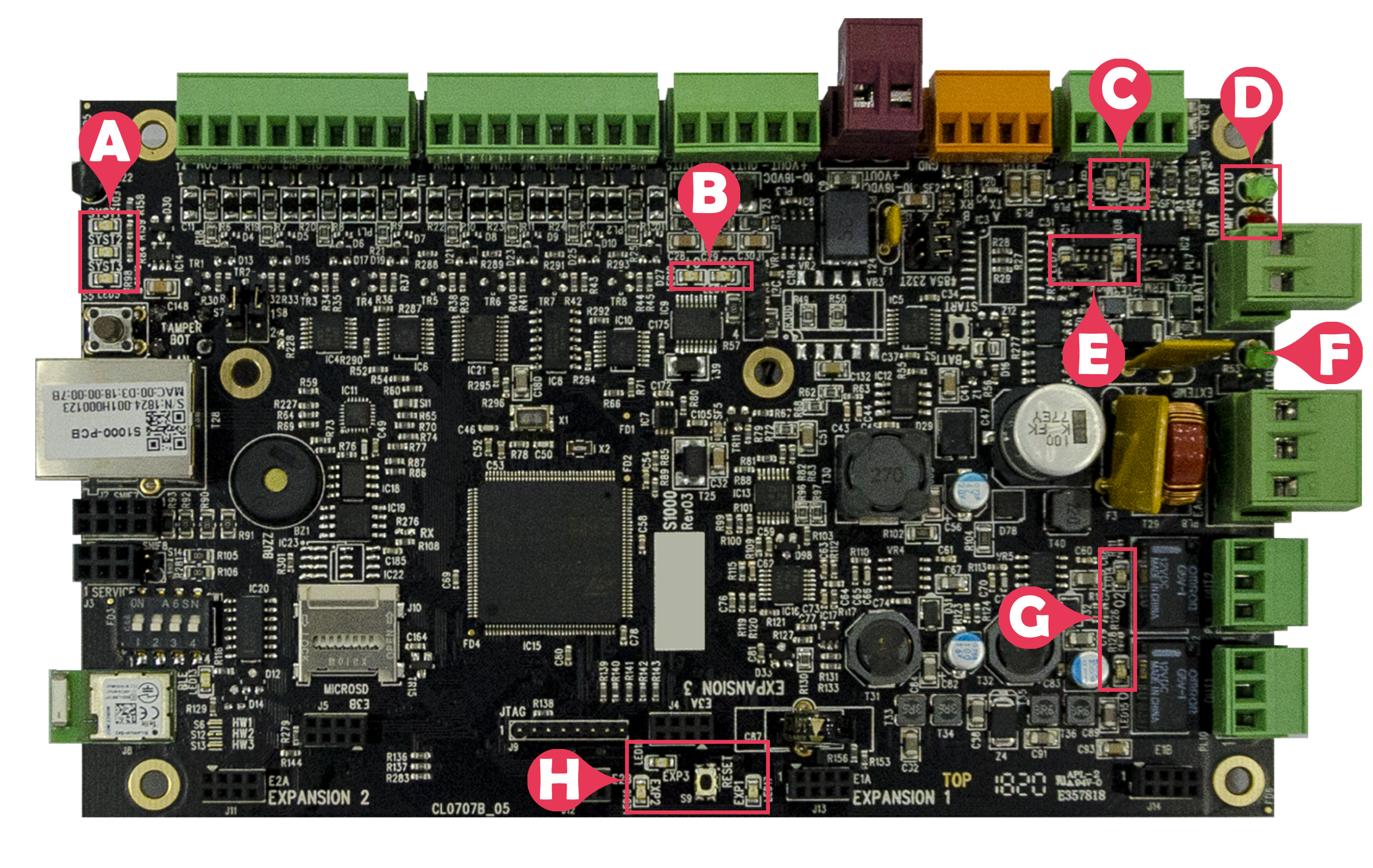

LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1 |
System status 1 |
OFF - indicates there is no communication to Sonitrol CORE Flashing - indicates connecting ON - indicates sending/receiving data from Sonitrol CORE |
|
LED3 |
System status 2 |
ON - indicates a system error OFF - indicates the system is healthy |
|
|
LED5 |
System status 3 |
Flashing slowly - indicates the system is normal OFF - indicates the system is booting Flashing fast - indicates the system is initializing |
|
|
B |
LED11 |
O/C output 3 (PL3, 3) |
ON - indicates that the O/C output is activated |
|
LED10 |
O/C output 4 (PL3, 4) |
||
|
B |
LED6 |
RS485 port (PL6) transmit |
Flashing indicates data is being transmitted or received on the communication line |
|
LED9 |
RS485 port (PL6) receive |
||
|
D |
LED2 |
Battery status |
ON - indicates the battery is normal and charged Flashing - indicates the battery is charging OFF - indicates no battery is detected or running on a battery |
|
LED4 |
Battery low |
OFF - indicates there are no problems with the battery ON - indicates battery failure or battery is not present Flashing slowly - indicates running on battery Flashing fast - indicates battery is getting low |
|
|
LED2 + LED4 |
Battery status and battery low |
Flashing fast - indicates the charger is not operational |
|
|
E |
LED8 |
RS482/RS232 port (PL5) transmit |
Flashing - indicates data is being transmitted or received on the communication line |
|
LED7 |
RS482/RS232 port (PL5) receive |
||
|
F |
LED12 |
Power supply input present |
ON - indicates power is available OFF - indicates power has been shut down |
|
LED12 + LED4 |
Power supply and battery low |
If LED12 is ON and LED4 is Flashing, this means that the battery is faulty |
|
|
G |
LED15 |
Relay output 1 (PL10) |
ON - indicates that the relay output is activated |
|
LED14 |
Relay output 2 (PL9) |
||
|
H |
LED17 |
Expansion module socket 1 |
ON - indicates the expansion card is connected and working properly OFF - indicates no expansion card is detected Flashing fast - indicates the expansion card is initializing |
|
LED16 |
Expansion module socket 2 |
||
|
LED18 |
Expansion module socket 3 |
|
Flash type |
ON (seconds) |
OFF (seconds) |
|---|---|---|
|
Normal |
1 |
1 |
|
Fast |
0.5 |
0.5 |
|
Pulse |
0.5 |
2 |
|
Slow |
2 |
0.5 |
