Switches and Links

Caution: Incorrect link settings may cause serious damage to the S1000 Controller.

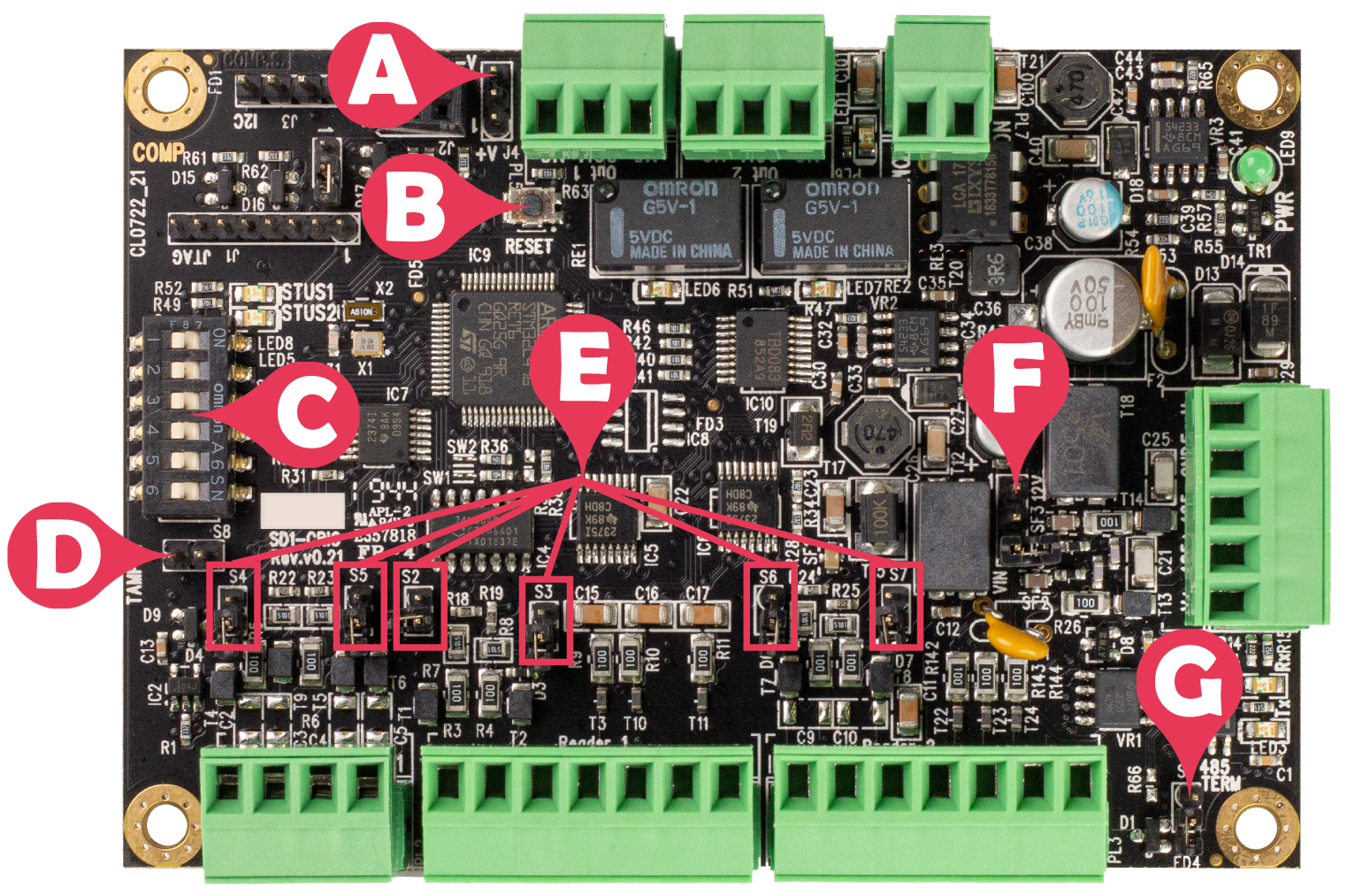

Switches and links labeled on the CRI Board.

Label #

Connections

Description

A

Termination link

Link to GND (-V) to provide this supply to Relay Output 1: PL5, 3-NO

Link to +V to provide this supply to Relay Output 1: PL5, 1-NC

B

Pushbutton switch S9

Reset the card reader interface

C

DIP switch

Switch 1 to Switch 4: set the OSDP address on the bus

Switch 5 and Switch 6 OFF: no degraded mode

Switch 5 ON; Switch 6 OFF: 1 door in degraded mode

Switch 5 OFF; Switch 6 ON: 2 doors in degraded mode

D

S8

Enclosure lid tamper

E

S2 to S7

Select pull-up resistor termination

Short link for normal EOL or Wiegand operation

Open link for analog input operation

F

J5 voltage supply

Link to VIN if CRI power is supplied by the S1000 Controller

Link to 12V if CRI power is supplied by an external 24V source

G

S1

Termination link for RS485 port at PL4
