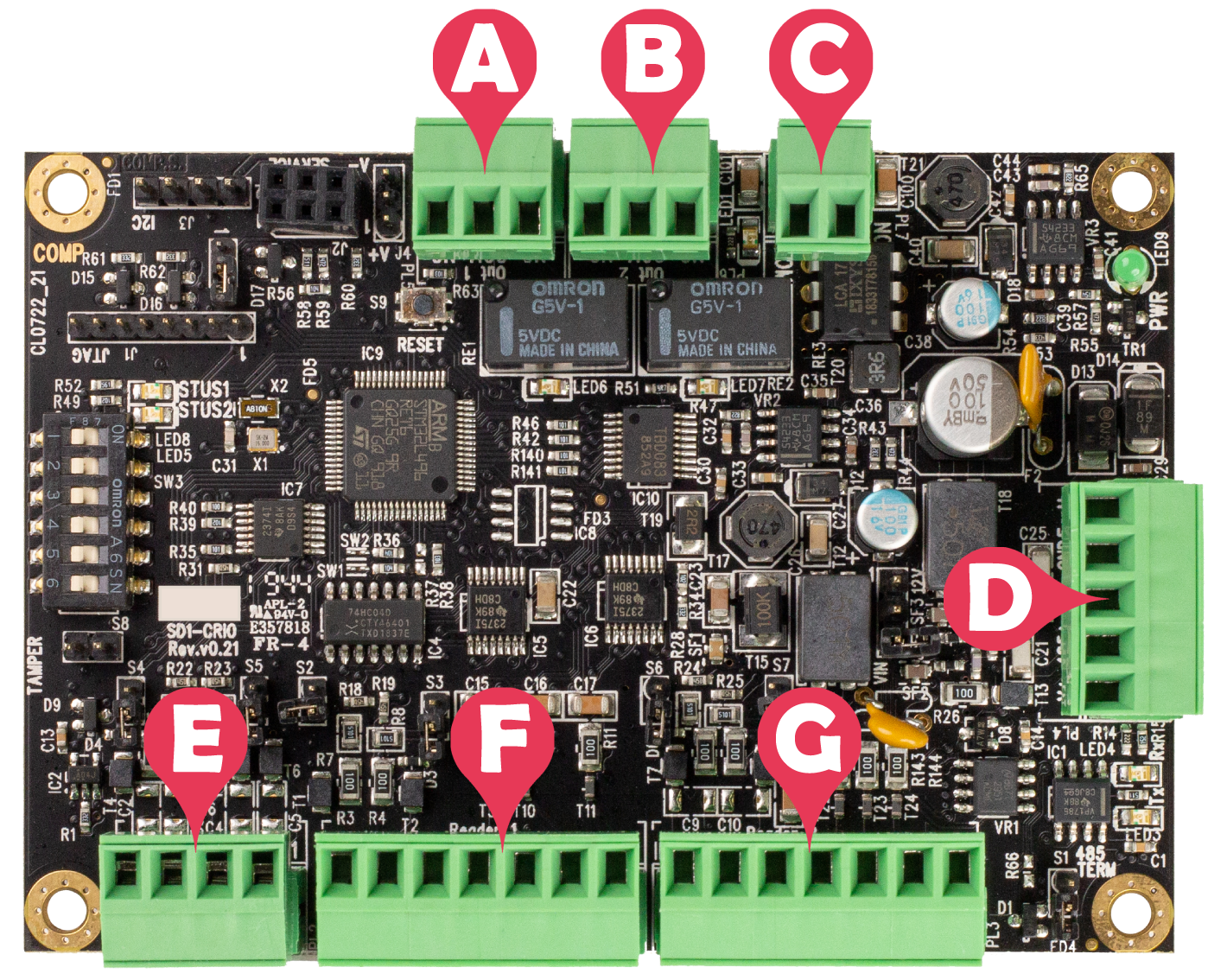

Connections
|
Function |
Connection |
Default value |
Range |
Indicator |
|---|---|---|---|---|
|
Label #A Relay output 1 (PL5) |
||||
|
Relay output 1 |
OUT1 (PL5, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED6 |
|
Label #B Relay output 2 (PL6) |
||||
|
Relay output 2 |
OUT2 (PL6, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED7 |
|
Label #C Solid state output 3 (PL7) Note: Devices connected to Relay output 2 (PL6) and Solid state output 3 (PL7) have no termination links and require an external power supply. |
||||
|
Solid state output 3 |
COM - NO |
|
1A at 24VDC |
LED1 |
|
Label #D RS485 serial port (PL4) |
||||
|
Power in |
V+ |
|
||
|
RS485 D+ |
485+ |
|
|
LED4 |
|
RS485 D- |
485- |
|
|
LED3 |
|
Ground |
GND |
|
|
|
|
Cable shield connection |
EARTH |
|
|
|
|
Label #E End-of-line (EOL) monitored and analog inputs 1 and 2 (PL1) |
||||
|
EOL monitored input 1 |
IN1 and COM1 (PL1, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 1 |
IN1 and COM1 (PL1, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 2 |
IN2 and COM2 (PL1, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 2 |
IN2 and COM2 (PL1, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #F Reader 1 connection |
||||
|
EOL monitored input 3 |
IN3D0 (PL2, 1) |
10K |
1K to 50K |
|
|
Analog input 3 |
IN3D0 (PL2, 1) |
|
0VDC to 10VDC |
|
|
EOL monitored input 4 |
IN4D2 (PL2, 2) |
10K |
1K to 50K |
|
|
Analog input 4 |
IN4D2 (PL2, 2) |
|
0VDC to 10VDC |
|
|
Voltage output |
-V (PL2, 3) |
|
0V |
|
|
Voltage output |
+V (PL2, 4) |
|
0.5A at 10VDC to 16VDC |
|
|
O/C output 4 |
O4 (PL2, 5) |
|
0mA to 100mA |
|
|
O/C output 5 |
O5 (PL2, 6) |
|
0mA to 100mA |
|
|
O/C output 6 |
O6 (PL2, 7) |
|
0mA to 100mA |
|
|
Label #G Reader 2 connection |
||||
|
EOL monitored input 3 |
IN5D0 (PL3, 1) |
10K |
1K to 50K |
|
|
Analog input 3 |
IN5D0 (PL3, 1) |
|
0VDC to 10VDC |
|
|
EOL monitored input 4 |
IN6D2 (PL3, 2) |
10K |
1K to 50K |
|
|
Analog input 4 |
IN6D2 (PL3, 2) |
|
0VDC to 10VDC |
|
|
Voltage output |
-V (PL3, 3) |
|
0V |
|
|
Voltage output |
+V (PL2, 4) |
|
0.5A at 10VDC to 16VDC |
|
|
O/C output 7 |
O7 (PL3, 5) |
|
0mA to 100mA |
|
|
O/C output 8 |
O8 (PL3, 6) |
|
0mA to 100mA |
|
|
O/C output 9 |
O9 (PL3, 7) |
|
0mA to 100mA |
|
