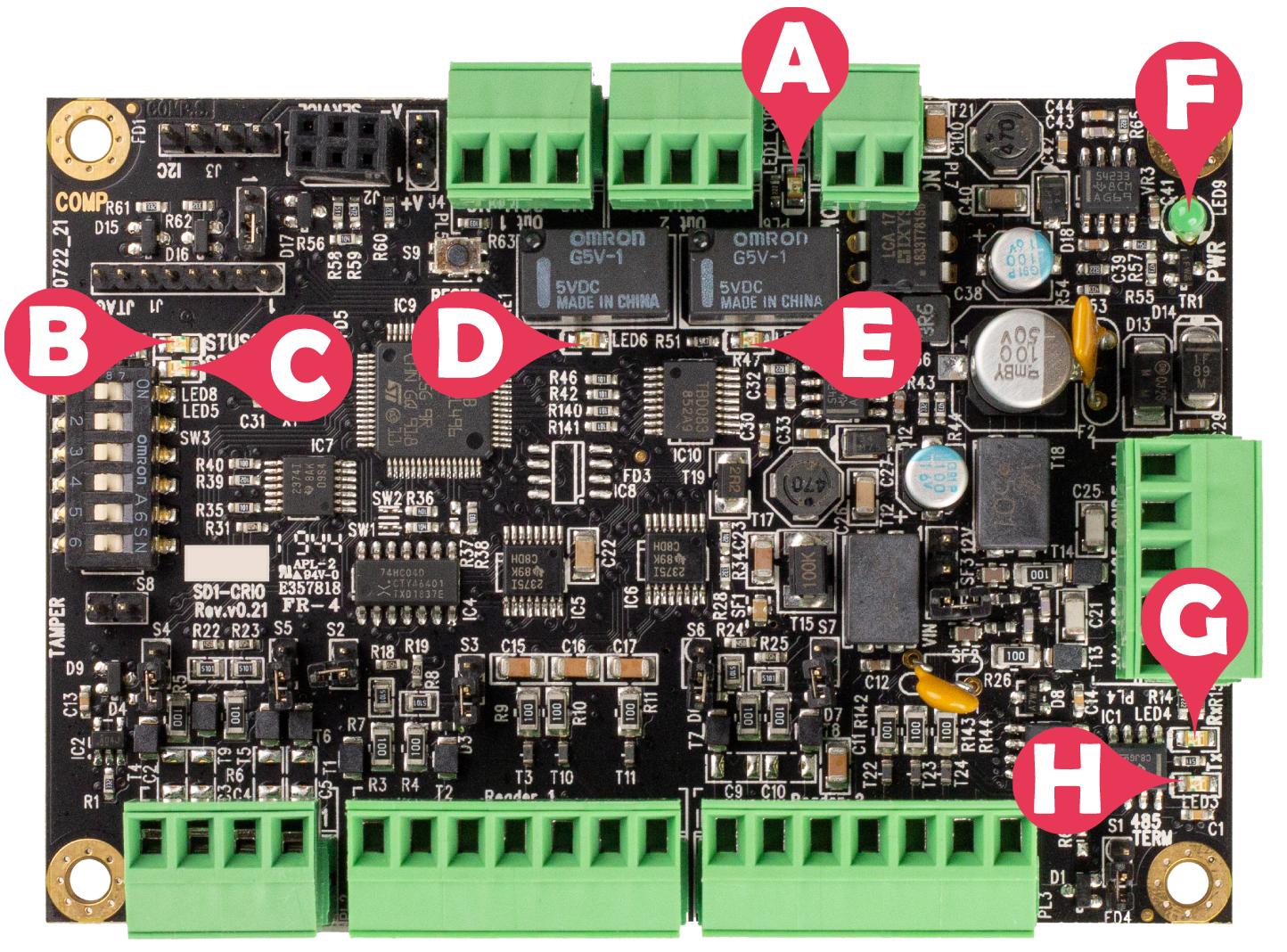

LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1 |
Solid state output 3 (PL7) |
ON - indicates that the solid state output is activated |
|
B |
LED8 |
System status 1 |
FlashingGreen - indicates that the CRI Board is not online ON Green - indicates a connection to the S1000 Controller |
|
C |
LED5 |
System status 2 |
Flashing - indicates that CPU is running |
|
D |
LED6 |
Relay output 1 (PL5) |
ON Red - indicates that the relay output is activated |
|
E |
LED7 |
Relay output 2 (PL6) |
ON Red - indicates that the relay output is activated |
|
F |
LED9 |
Power supply input present |
ON Green - indicates that power is available OFF - indicates that power has been shut down |
|
G |
LED4 |
RS485 port (PL4) receive |
ON Red - indicates data is being received on the communication line |
|
H |
LED3 |
RS485 port (PL4) transmit |
ON Green - indicates data is being transmitted on the communication line |
