6 Output Expansion Card

The 6 Output Expansion Card (SE1-6OUT-PCB) provides an additional 6 dry contact relays, all with NO NC terminals available for the S1000 Controller.

Up to 3 of these expansion cards can be installed on an S1000 Controller, expanding the output capacity to 20 relay outputs and 3 OC outputs.

Each relay has a link that can select the VOUT+ or VOUT- to the relay common pin eliminating the need to wire externally from the power supply.

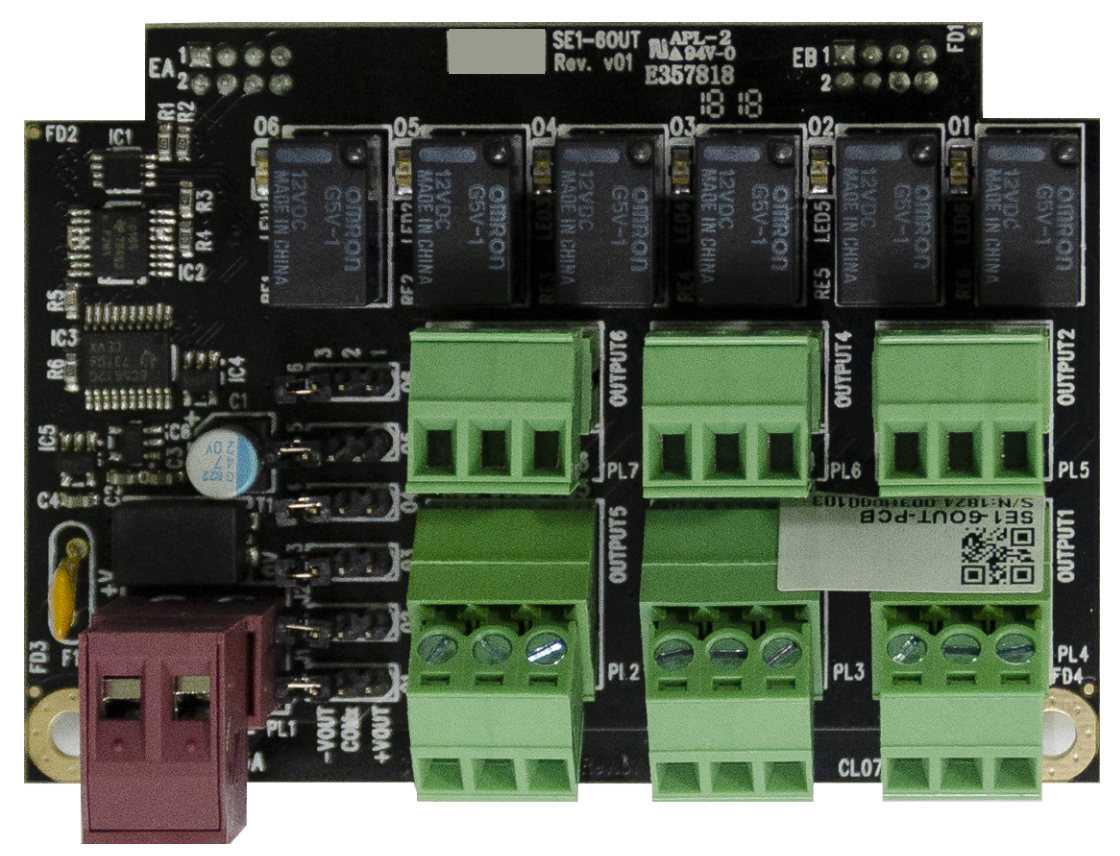

Photograph of the 6 Output Expansion Card.
