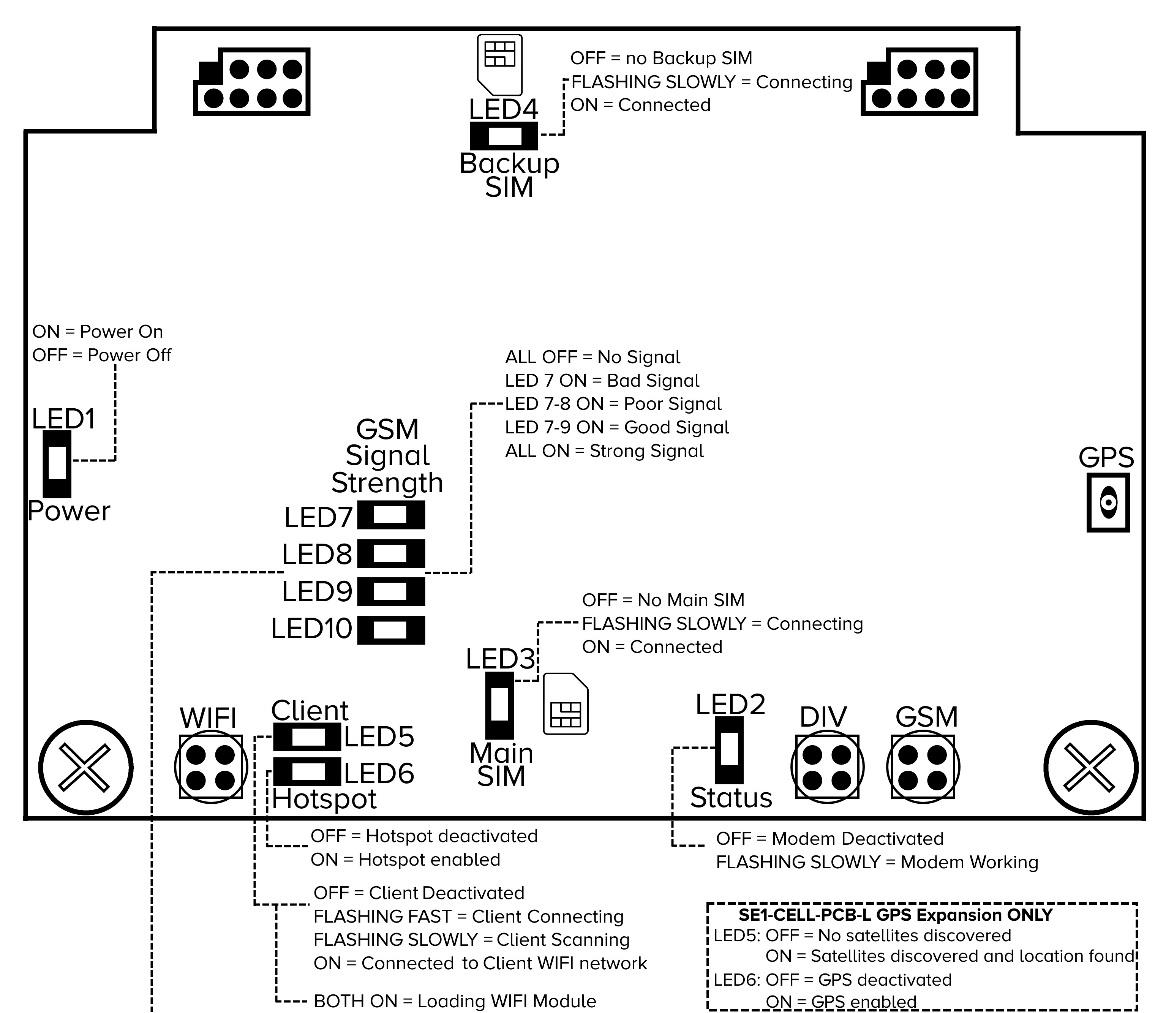

Wiring
Error codes are available.
Connections
|
Connections |
Description |
|---|---|
|
WiFi (J4) |
Connects to the WiFi antenna cable (supplied in the accessory bag).
|
|
GSM (J5) |
Check that the correct antenna is plugged into the GSM socket and check that the SIM is registered for the network.
|
|
DIV (J9) |
Connects to the GSM diversity antenna cable (optional extra). |
