Compatible Antennas
Different types of antennas can be installed with the Cellular and WiFi Expansion Card, depending on your required network environment. Suggested models are listed.
|
Model |
Type |
Frequency |
Cable |
Connector |
|---|---|---|---|---|
|

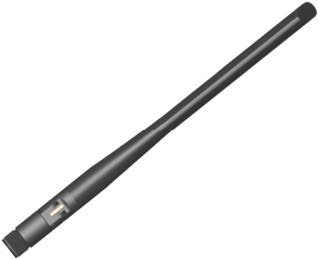

AGM410
|
LTE antenna UL compliant |
698MHz to 960MHz 1710MHz to 2655MHz |
RG174 |
SMA male |
|

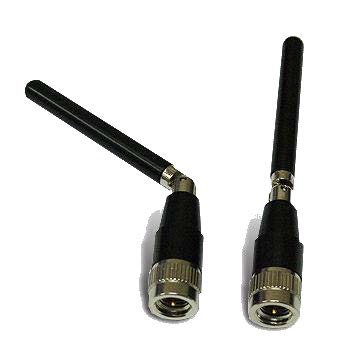

W34-S
|
4G/LTE swivel stubby antenna |
2.4GHz to 2.5GHz |
NA |
RP-SMA |
|
LCO7270-WMB
|
4G/multiband wall mount omni antenna |
690MHz to 960MHz 1710MHz to 2170MHz 2500MHz to 2700MHz |
LMR195 5m long |
N male to SMA male |
|
Model |
Type |
Frequency |
Cable |
Connector |
|---|---|---|---|---|
|
AGE058
|
Cell + WiFi |
Cellular: 824MHz to 960MHz 1710MHz to 2170MHz WiFi: 2400MHz to 2483.5MHz |
RG174 |
SMA, MCX, FAKRA or others |
|
Sentinel MA250 3in1
|
LTE MIMO and GNSS antenna |
GPS: 1575.42±1.023MHz 1602±5MHz 1561.09±2.046MHz Cellular: 698MHz to 803MHz 824MHz to 894MHz 880MHz to 960MHz 1710MHz to 1880MHz 1850MHz to 1990MHz 1920MHz to 2170MHz 2490MHz to 2690MHz |
CFD-200 and RG-174 |
SMA(M) ST connector |
|

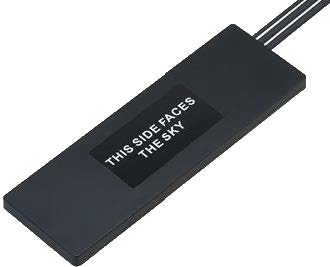

Stream MA231 3in1
|
|
GPS: 1575.42±10MHz 1602±8MHz Cellular: 700MHz to 960MHz 1710MHz to 2170MHz 2500MHz to 2690MHz WiFi: 2400MHz to 2484MHz 5150MHz to 5850MHz |
CFD-200 and RG-174 |
SMA(M) RP-SMA(M) |
|

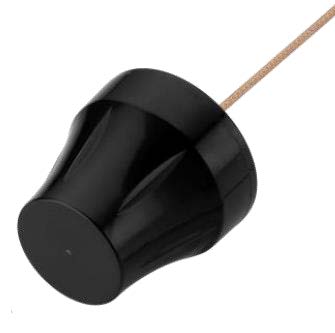

Olympian GEN 1 wide band antenna
|
4G/3G/2G LTE/Cellular/ |
Cellular: 700MHz to 960MHz 1710MHz to 2170MHz 2305MHz to 2360MHz 2500MHz to 2800MHz 3400MHz to 3500MHz WiFi: 2400MHz to 2483MHz |
RG-316 |
SMA(M) |
|
Model |
Type |
Frequency |
Cable |
Connector |
|---|---|---|---|---|
|
AGGL002 (SMA-3M)
|
GPS+GLONASS Antenna |
1592±3MHz 1602±5MHz 1561.09±2.046MHz |
RG-174 |
SMA, MCX, FAKRA or others |
