Communication Port Expansion Card

The Communication Port Expansion Card (SE1-485) provides additional:

  • 4 parallel RS485 ports
  • 1x RS232 port

Up to 3 Communication Port Expansion Cards can be installed on a S1000 Controller allowing for easier cabling termination of multiple device configurations.

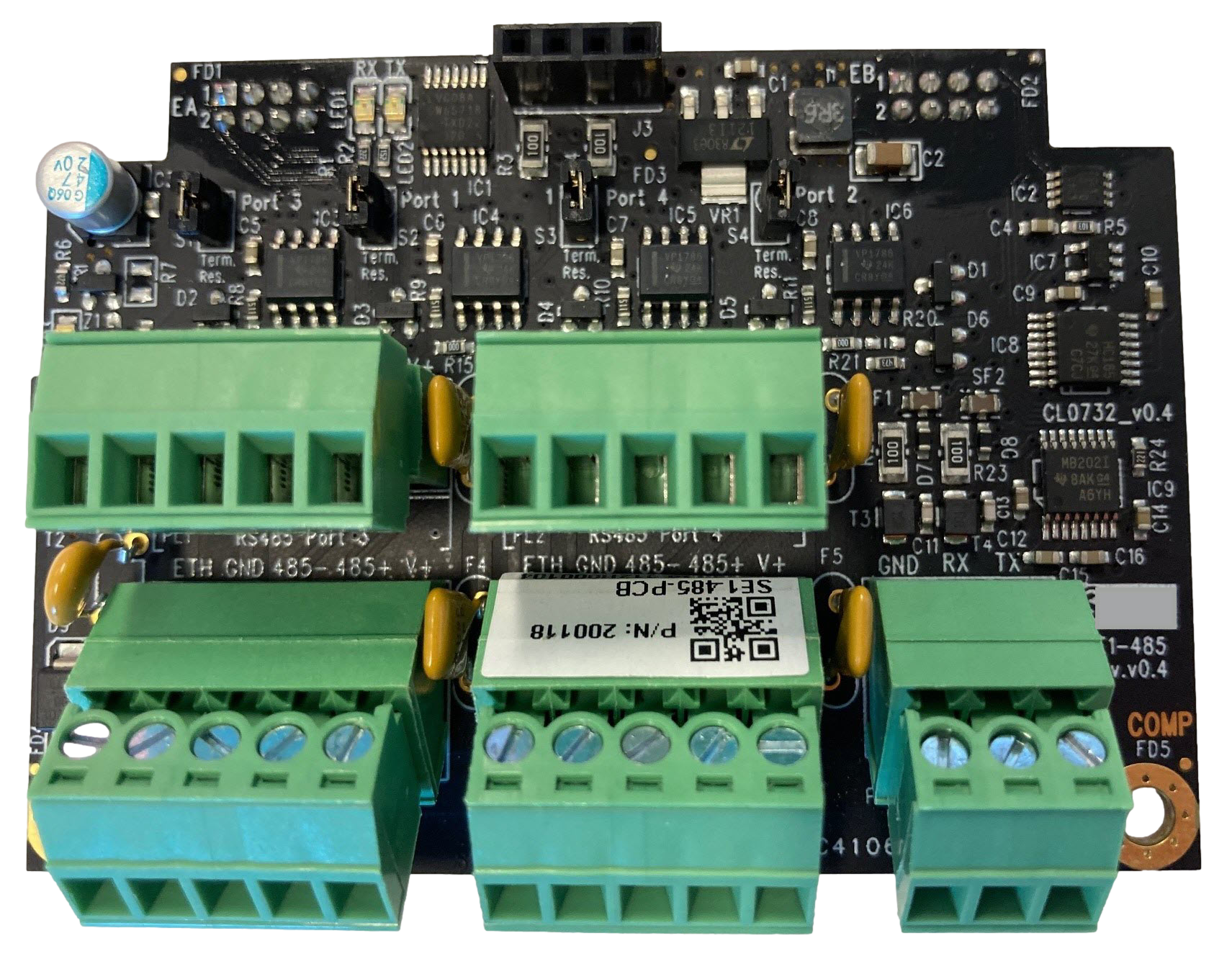

Photograph of the Communication Port Expansion Card.
