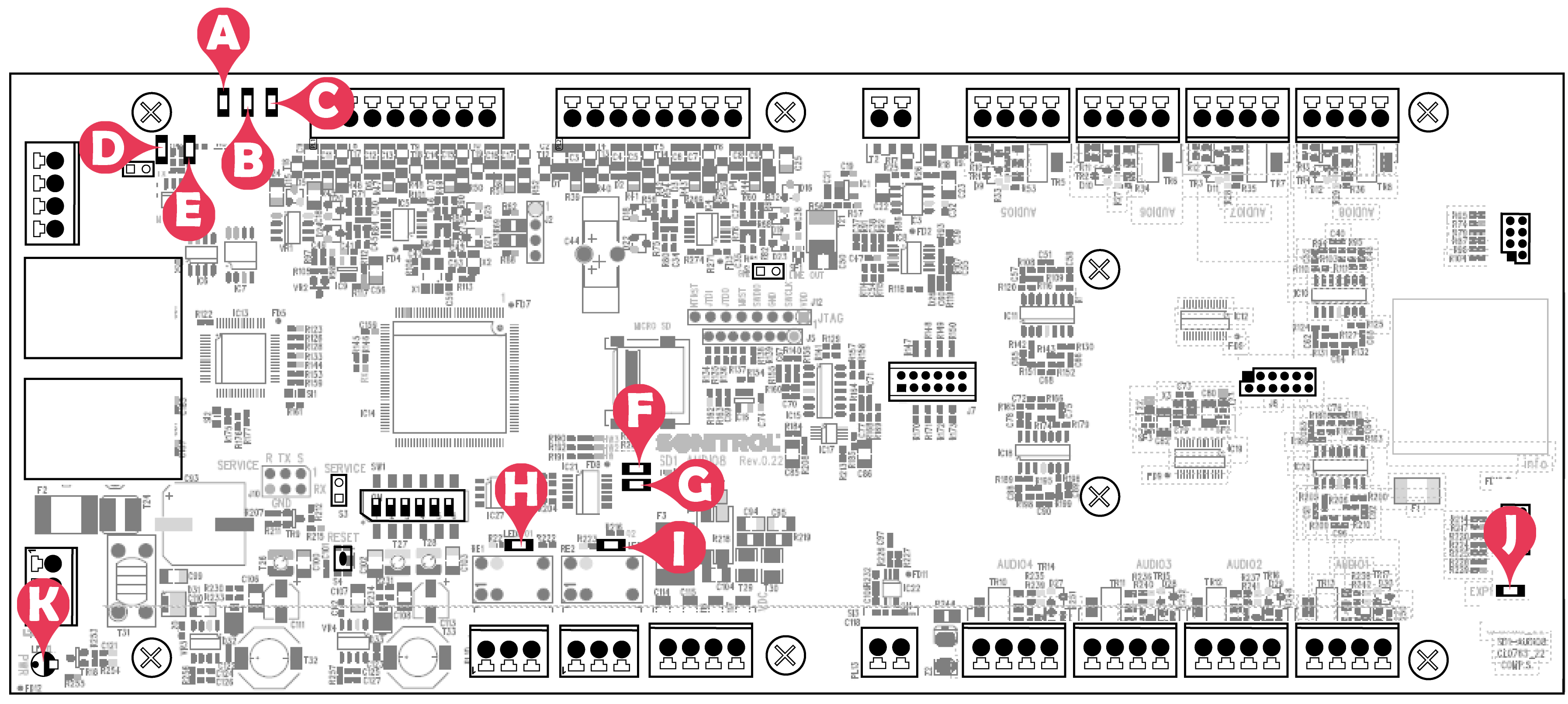

LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1 |
System status 2 |
System fault indication |
|
B |
LED2 |
System status 1 |
OFF - indicates that the Audio 8 Module is not online ON Green - indicates connection to the S1000 Controller |
|
C |
LED3 |
System status 3 |
Heartbeat of system |
|
D |
LED4 |
RS485 |
Transmission indicator |
|
E |
LED5 |
RS485 |
Receiver indicator |
|
F |
LED6 |
Output 3 status |
|
|
G |
LED7 |
Output 4 status |
|
|
H |
LED8 |
|
Output 1 status |
|
I |
LED9 |
|
Output 2 status |
|
J |
LED10 |
|
Expansion card status ON - indicates a connection to an expansion card Flashing - expansion card is not configured or not present OFF - indicates that there is a fault or error with the connection to the expansion card |
|
K |
LED11 |
|
Power status |
