Wiring

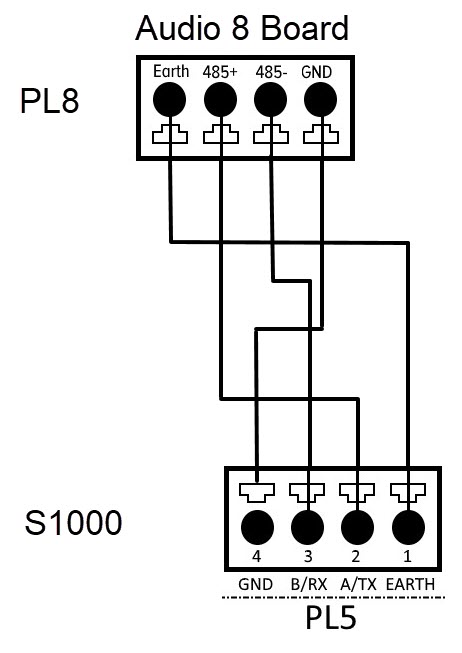

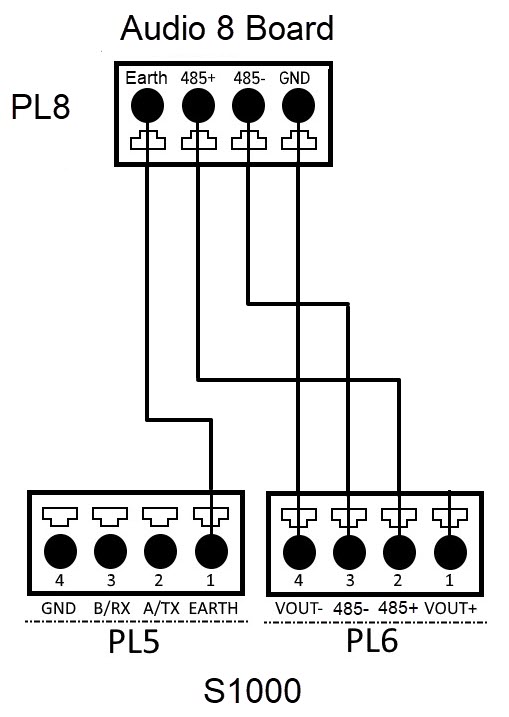

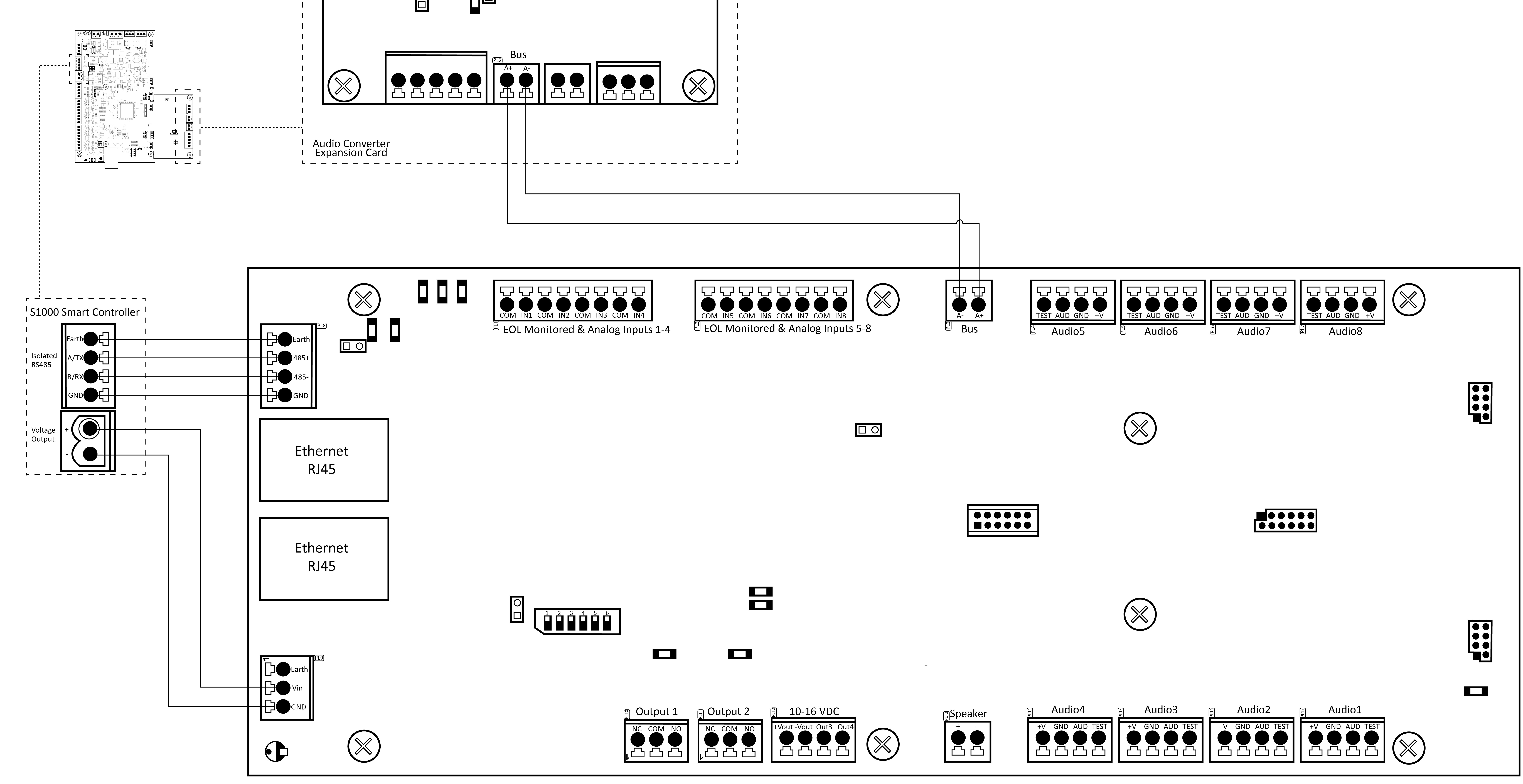

Connect the Audio 8 Board to the S1000 Controller using the Audio Converter Expansion Card. Wiring can use the connection pairs PL4-PL5 or PL5-PL6 with standard connections.
|
RS485 PL5
|
RS485 PL5-PL6
|
|
Connection |
Description |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DIP switch |

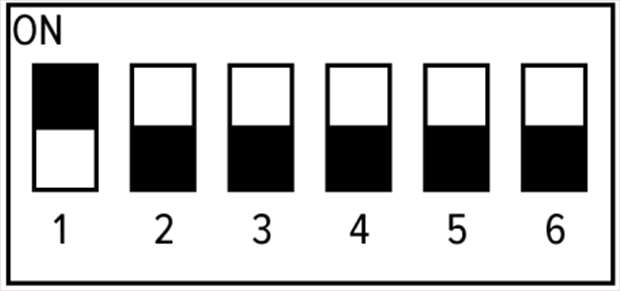

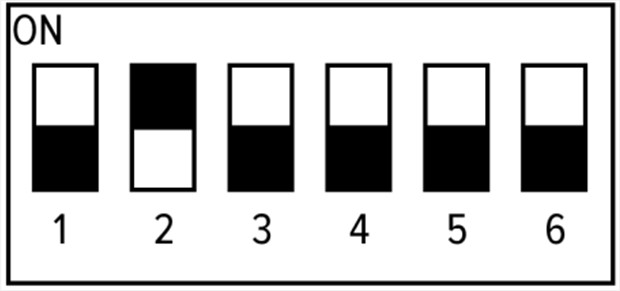

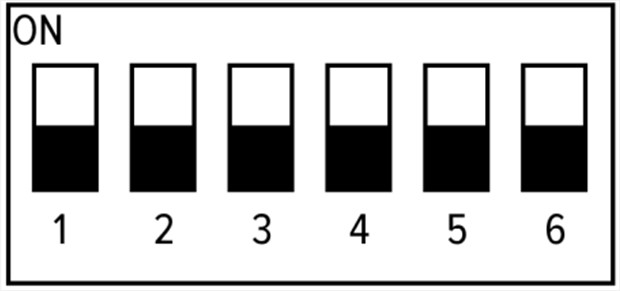

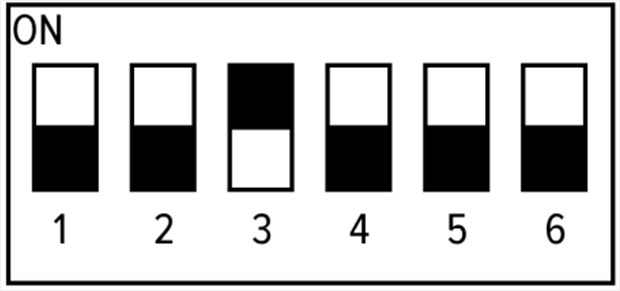

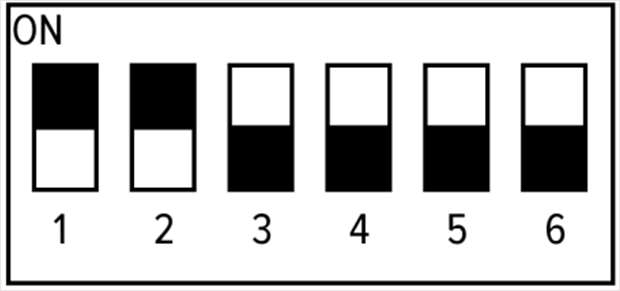

Switch 1 to Switch 4: Set the OSDP address on the bus. Switch 5 to Switch 6: Unused
|
||||||||||
|
Pushbutton switch (S3) |
Reset the Audio 8 Module |
||||||||||
|
J2 |
Internal use only |
1 Audio Sensor Board can be added to each of the 8 AUDIO connectors (AUIDO1 to AUDIO8) on the board.
