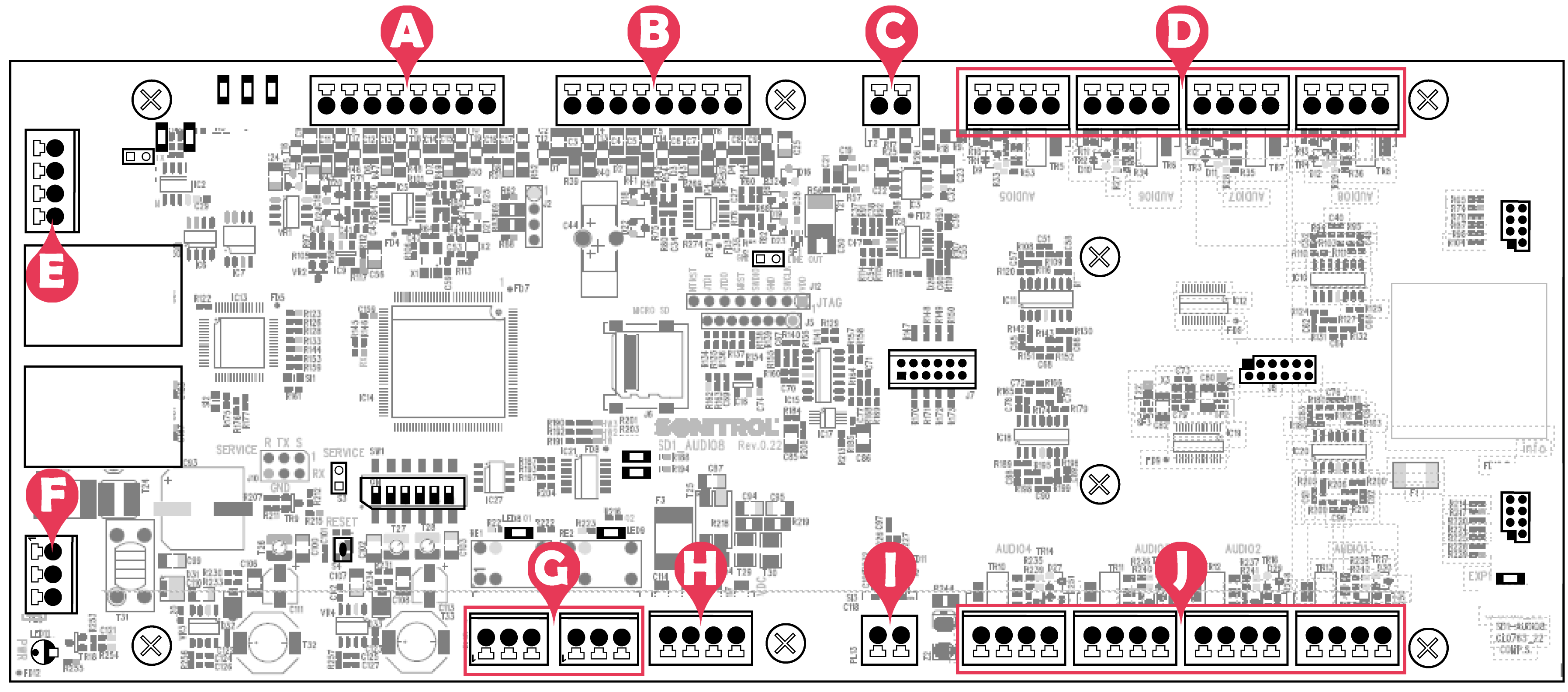

Connections
|
Function |
Connection |
Default value |
Range |
Indicator |
|---|---|---|---|---|
|
Label #A End-of-line (EOL) monitored and analog inputs 1 to 4 (PL1) |
||||
|
EOL monitored input 1 |
IN1 and COM (PL1, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 1 |
IN1 and COM (PL1, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 2 |
IN2 and COM (PL1, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 2 |
IN2 and COM (PL1, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 3 |
IN3 and COM (PL1, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 3 |
IN3 and COM (PL1, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 4 |
IN4 and COM (PL1, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 4 |
IN4 and COM (PL1, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #B End-of-line (EOL) monitored and analog inputs 5 to 8 (PL2) |
||||
|
EOL monitored input 5 |
IN5 and COM (PL2, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 5 |
IN5 and COM (PL2, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 6 |
IN6 and COM (PL2, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 6 |
IN6 and COM (PL2, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 7 |
IN7 and COM (PL2, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 7 |
IN7 and COM (PL2, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 8 |
IN8 and COM (PL2, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 8 |
IN8 and COM (PL2, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #C Audio bus (PL3) Connects to the Audio Converter Expansion Card |
||||
|
Audio bus |
ABUS (PL3, 1-ABUS+ and 2-ABUS-) |
|
||
|
Label #D Audio sensors and microphones |
||||
|
AUDIO5 - PL4 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
12V |
|
|
|
AUDIO6 - PL5 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
|
AUDIO7 - PL6 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
|
AUDIO8 - PL7 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
|
Label #E RS485/RS232 serial port (PL8) |
||||
|
Cable shield connection |
EARTH (PL8, 1) |
|
|
|
|
RS485 D+ |
A (PL8, 2) |
|
|
LED4 |
|
RS485 D- |
B (PL8, 3) |
|
|
LED5 |
|
Ground |
OUT3 (PL8, 4) |
|
|
|
|
Label #F Power supply input (PL9 ) |
||||
|
Power supply earth |
EARTH (PL9, 1) |
|
|
|
|
Power supply input |
V+ (PL9, 2) |
|
10VDC to 16VDC |
LED11 |
|
Power supply ground |
GND (PL9, 3) |
|
GND |
|
|
Label #G Relay outputs 1 to 2 (PL10 and PL11 ) |
||||
|
Relay output 1 |
OUT1 (PL10, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED8 |
|
Relay output 2 |
OUT2 (PL11, 1-NC, 2-COM and 3-NO) |
|
1A at 24VDC |
LED9 |
|
Label #H Voltage output and O/C (open collector) outputs 3 to 5 (PL12) |
||||
|
Voltage output |
VOUT+ (PL12, 1) |
|
0.5A at 10VDC to 16VDC |
|
|
Voltage output |
VOUT- (PL12, 2) |
|
0V |
|
|
O/C output 3 |
OUT3 (PL12, 3) |
|
0mA to 100mA |
LED6 |
|
O/C output 4 |
OUT4 (PL12, 4) |
|
0mA to 100mA |
LED7 |
|
Label #I Speaker (PL13) |
||||
|
Speaker |
SPKR (PL13, 1-S+ and 2-S-) |
|
||
|
Label #J Audio sensors and microphones |
||||
|
AUDIO1- PL17 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
12V |
|
|
|
AUDIO2 - PL16 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
|
AUDIO3 - PL15 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
|
AUDIO4 - PL14 |
Pin 1 +V Pin 2 - GND Pin 3 - AUD Pin 4 - TEST |
|
|
|
