Wiegand Reader

The S1000 Controller allows you to connect to third party Wiegand readers for access control in your system.

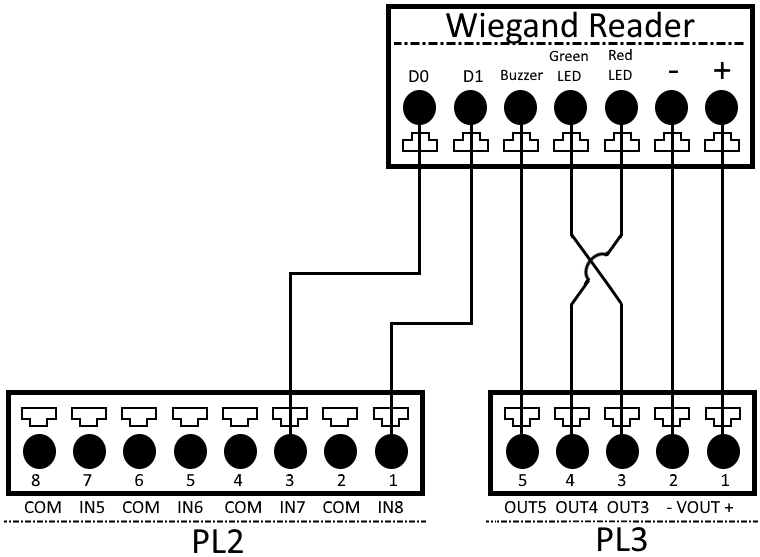

Connecting a single Wiegand reader.

Note: The input must be 12VDC.

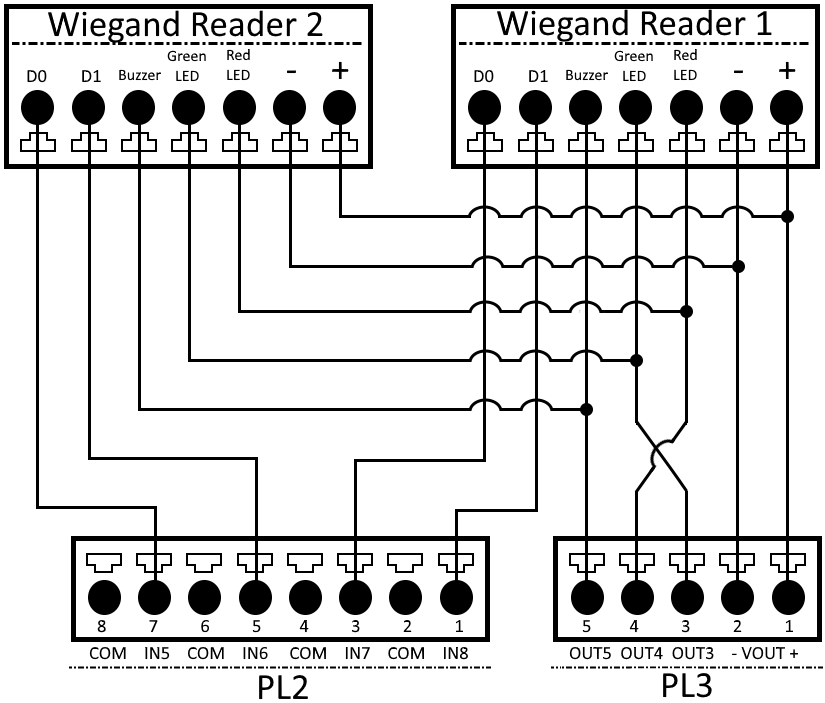

Connecting multiple Wiegand readers.

Tip: Any number of readers can be added as long as there are available ports. These include ports from I/O Expansion Cards.
