Passive Infrared Sensor (PIR)

Note: Input tolerances must be set to 1.

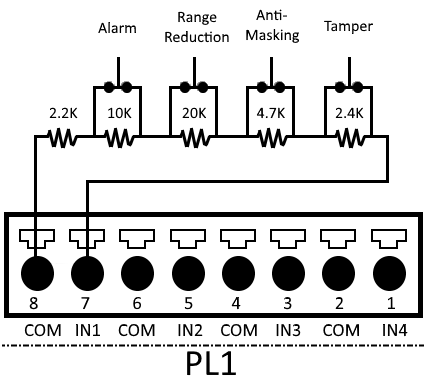

PIR with anti-masking, range reduction and tamper alarm with normally closed contact (closed for secure)

PIR with anti-masking, range reduction and tamper alarm with normally closed contact.

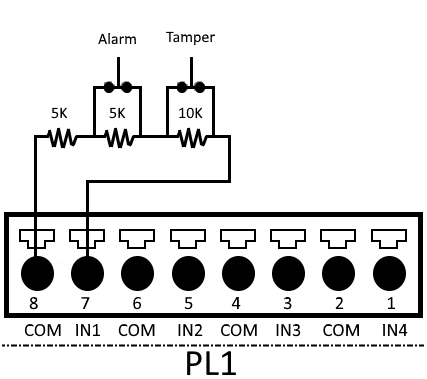

PIR with tamper alarm and normally closed contact (closed for secure)

PIR with tamper alarm and nomally closed contact.
