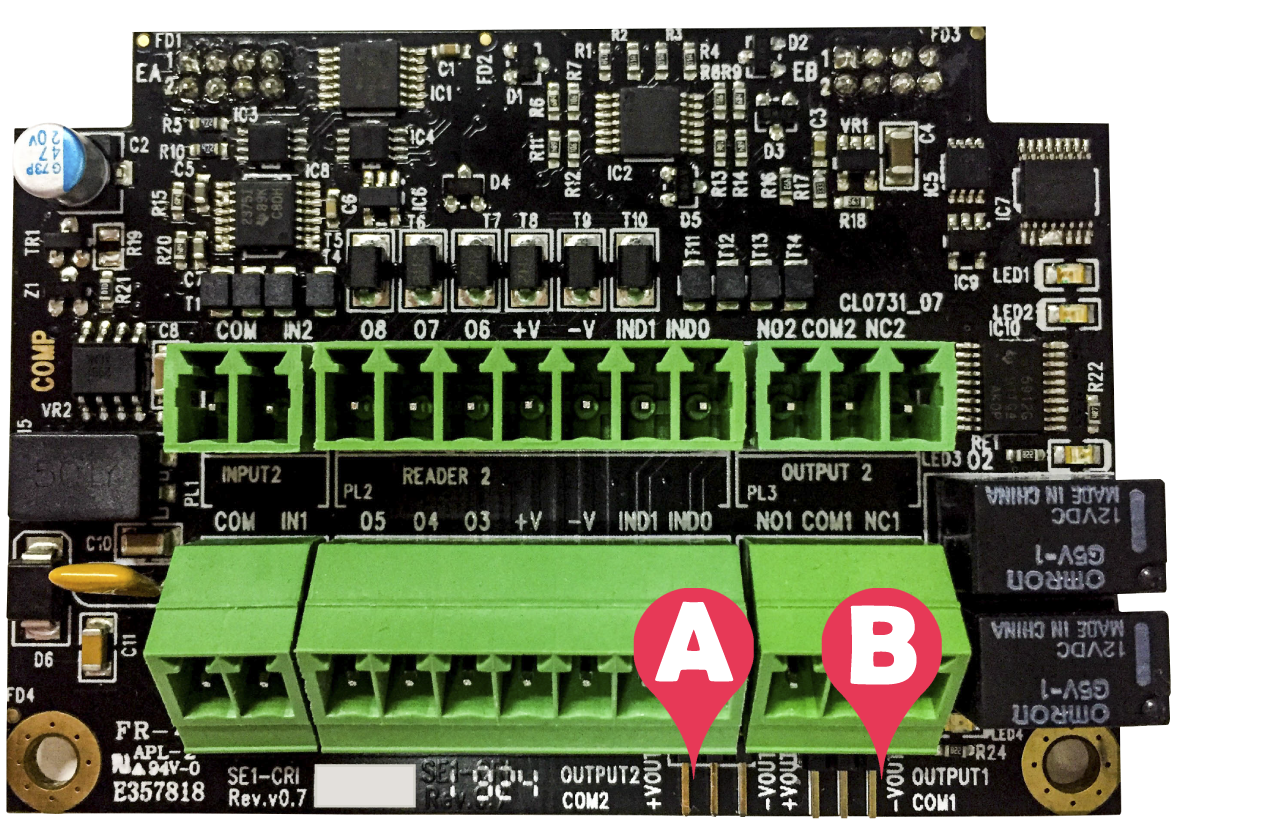

Links
|
Label # |
Link |
Pins |
|---|---|---|
|
A |
J3 |
Link to VOUT+ to provide this supply to relay common PL3, NO2 Link to VOUT- to provide this supply to relay common PL3, NC2 |
|
B |
J4 |
Link to VOUT+ to provide this supply to relay common PL6, NO1 Link to VOUT- to provide this supply to relay common PL6, NC1 |
