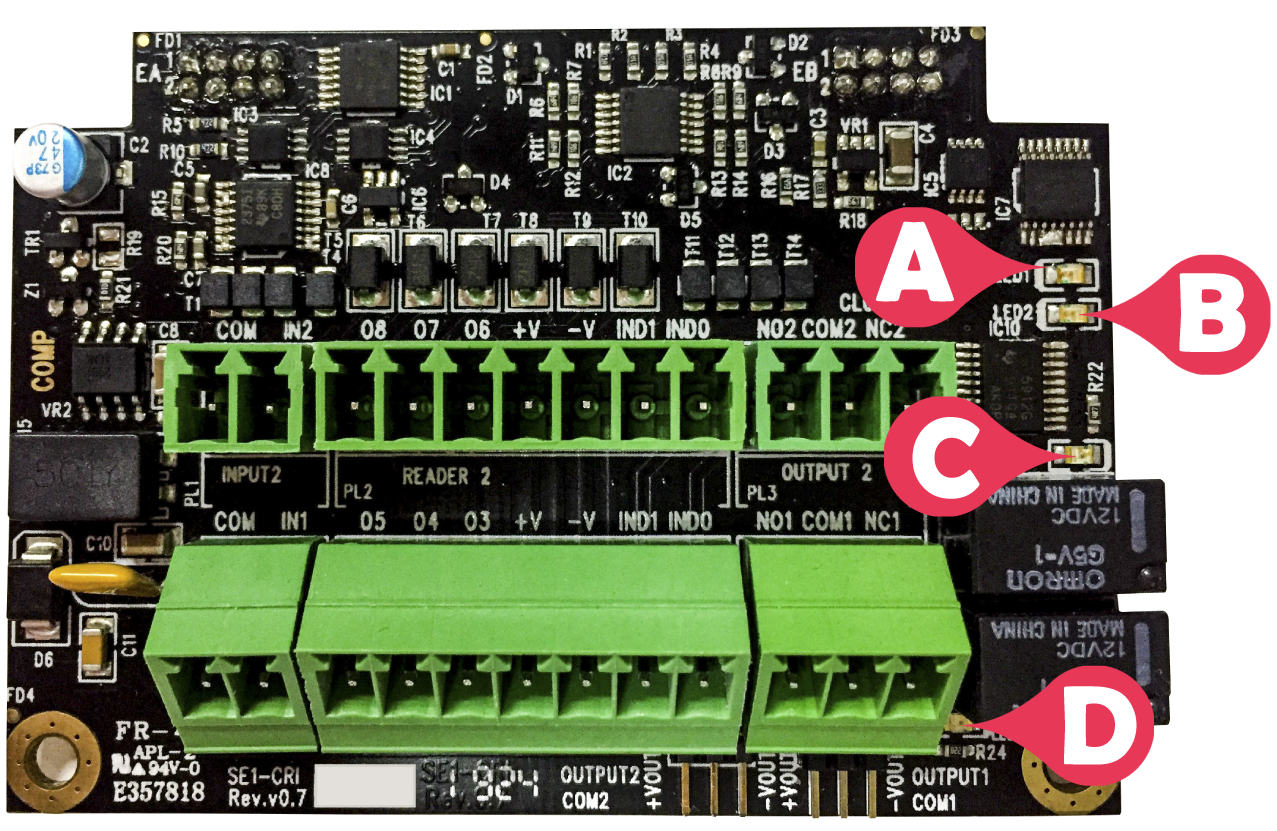

LED Indicators
|
Label # |
Indicator |
Name |
State and description |
|---|---|---|---|
|
A |
LED1 |
Voltage output + reader 2 (PL2, 4) |
ON Red indicates that the voltage output is activated |
|
B |
LED2 |
Voltage output + reader 1 (PL5, 4) |
ON Red indicates that the voltage output is activated |
|
C |
LED3 |
Relay output 2 (PL3) |
ON Red indicates that relay output is activated |
|
D |
LED4 |
Relay output 1 (PL6) |
ON Red indicates that relay output is activated |
