Installation

Unpack the supplied items from the packaging and make sure that you inspect each item for any defects or damages that may have occurred during transit before mounting and assembling the Alarm Keypad.

All measurements are in millimeters.

Main body

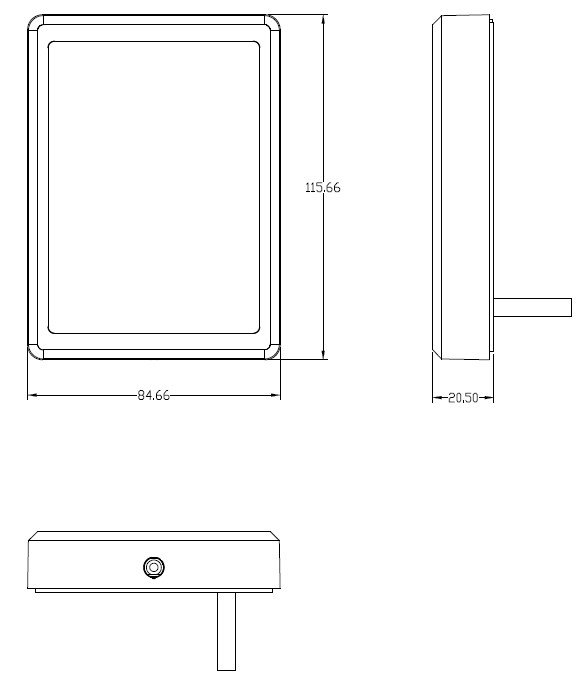

The dimensions of the main body of the Alarm Keypad.

Plastic base plate

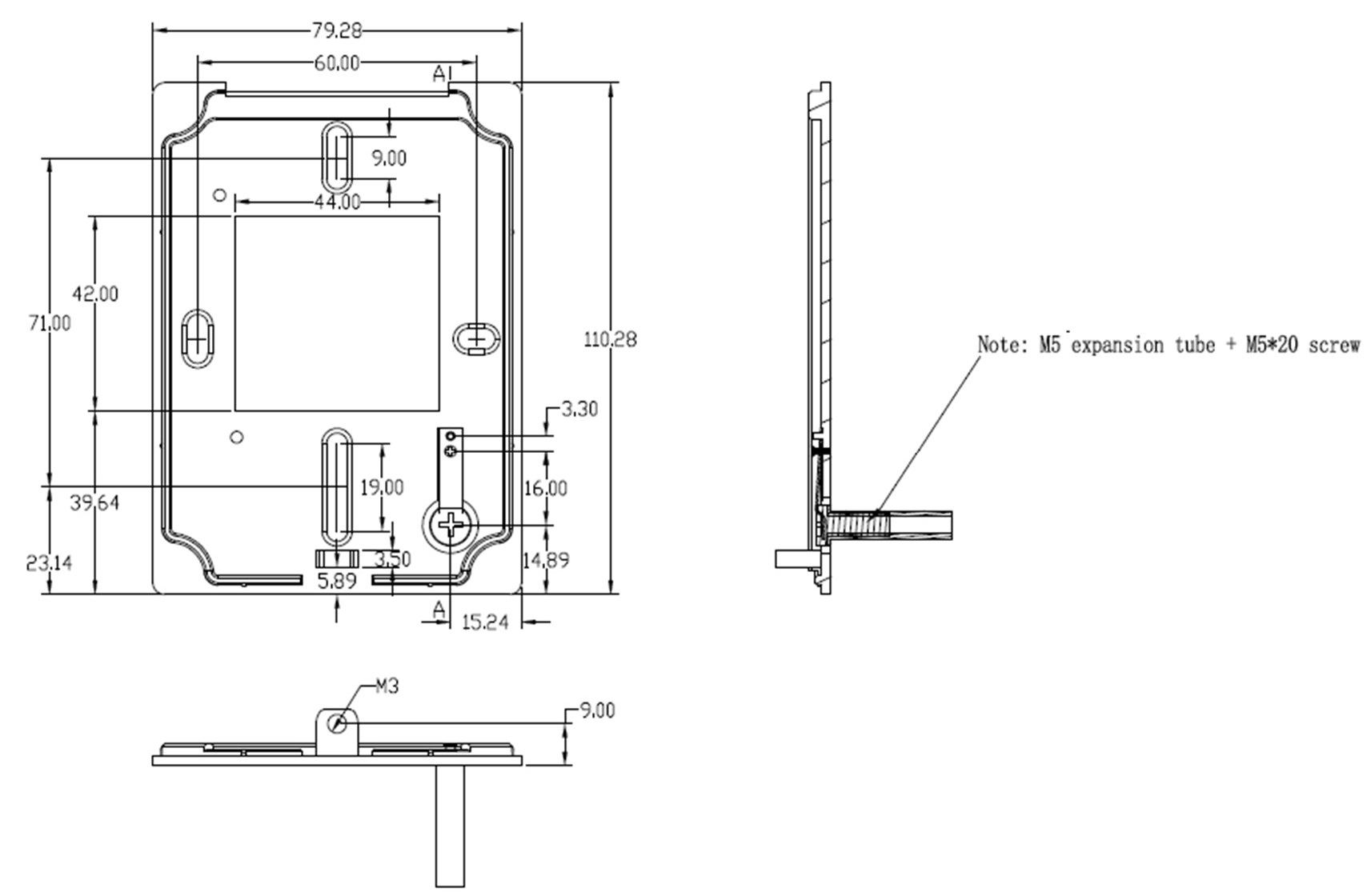

The dimensions of the plastic base plate of the Alarm Keypad.

  1. Fasten the plastic base plate to the wall (or other intended surface) using 2 or 4 screws.

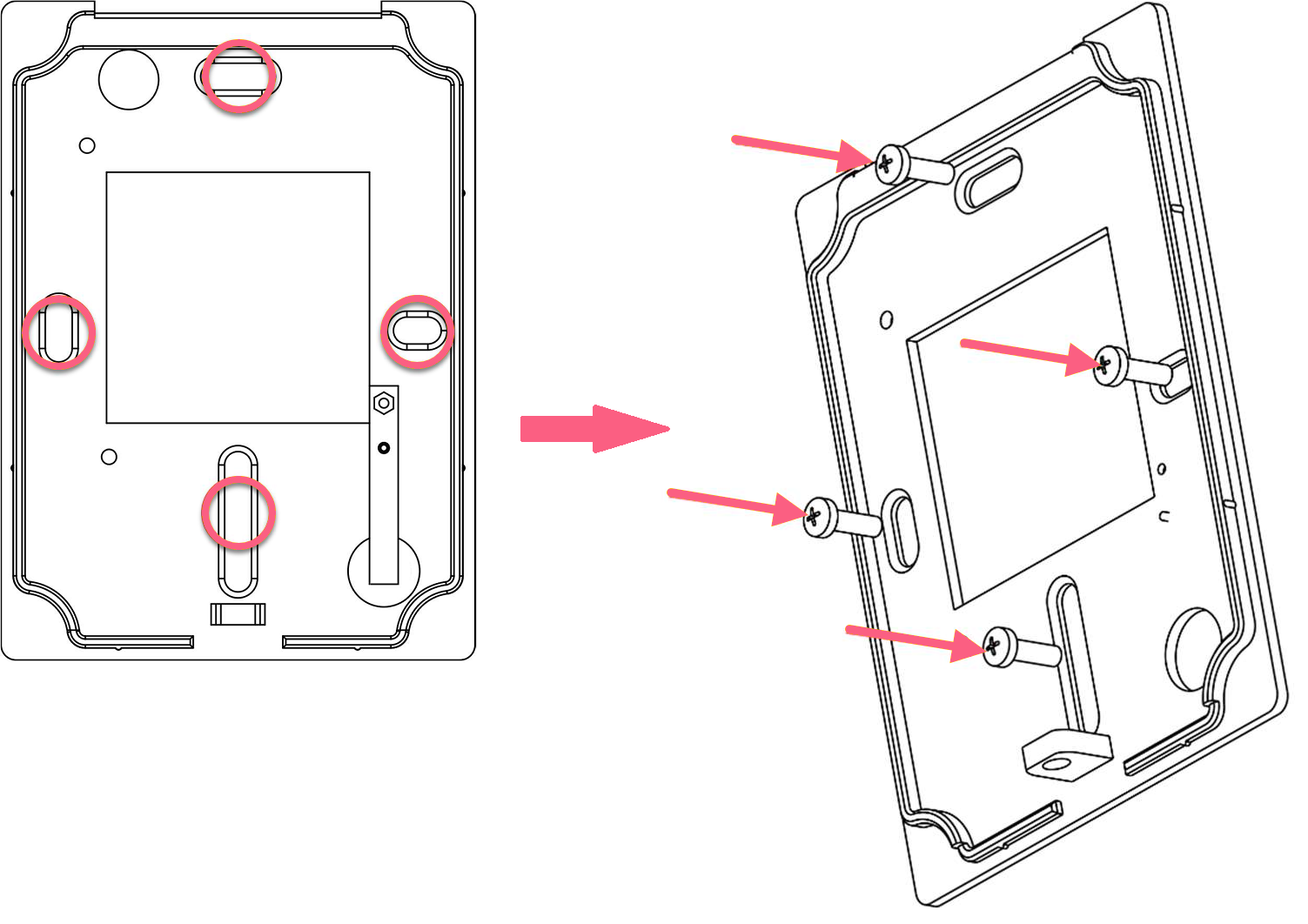

    Mounting the plastic base plate of the Alarm Keypad.

  2. Align the pre-mounted screw and clamp for the tamper switch closure.

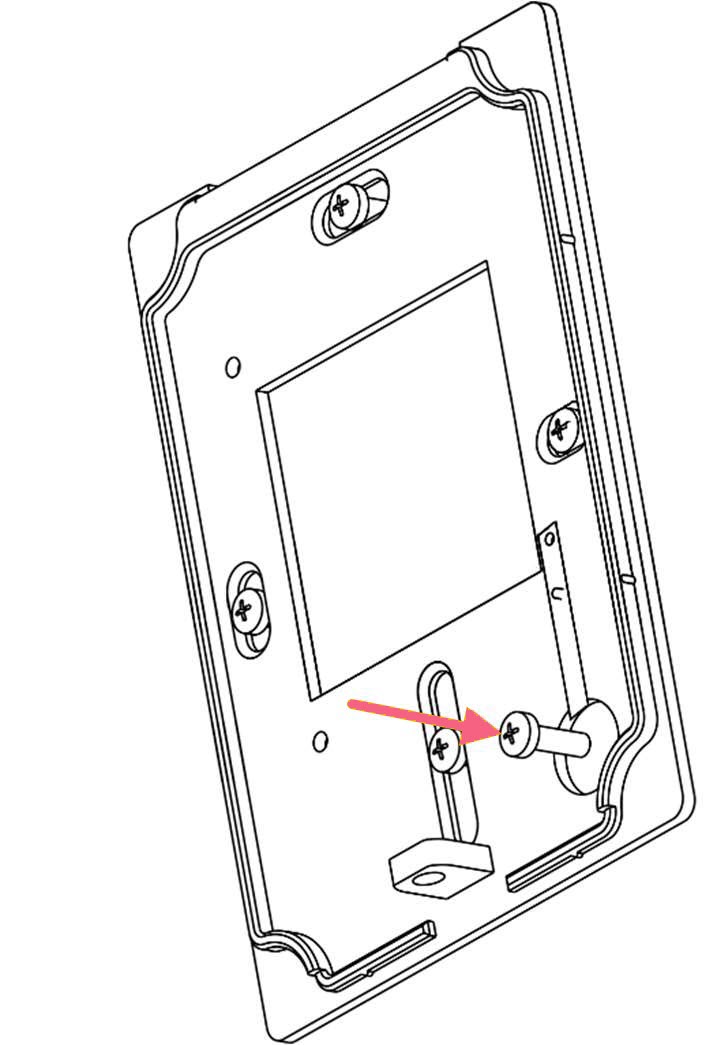

    Align the screw and clamp of the tamper switch closure.

  3. Place the keypad cover on the base plate.

    First clip the top edge of the cover, then press the bottom edge of the keypad in.

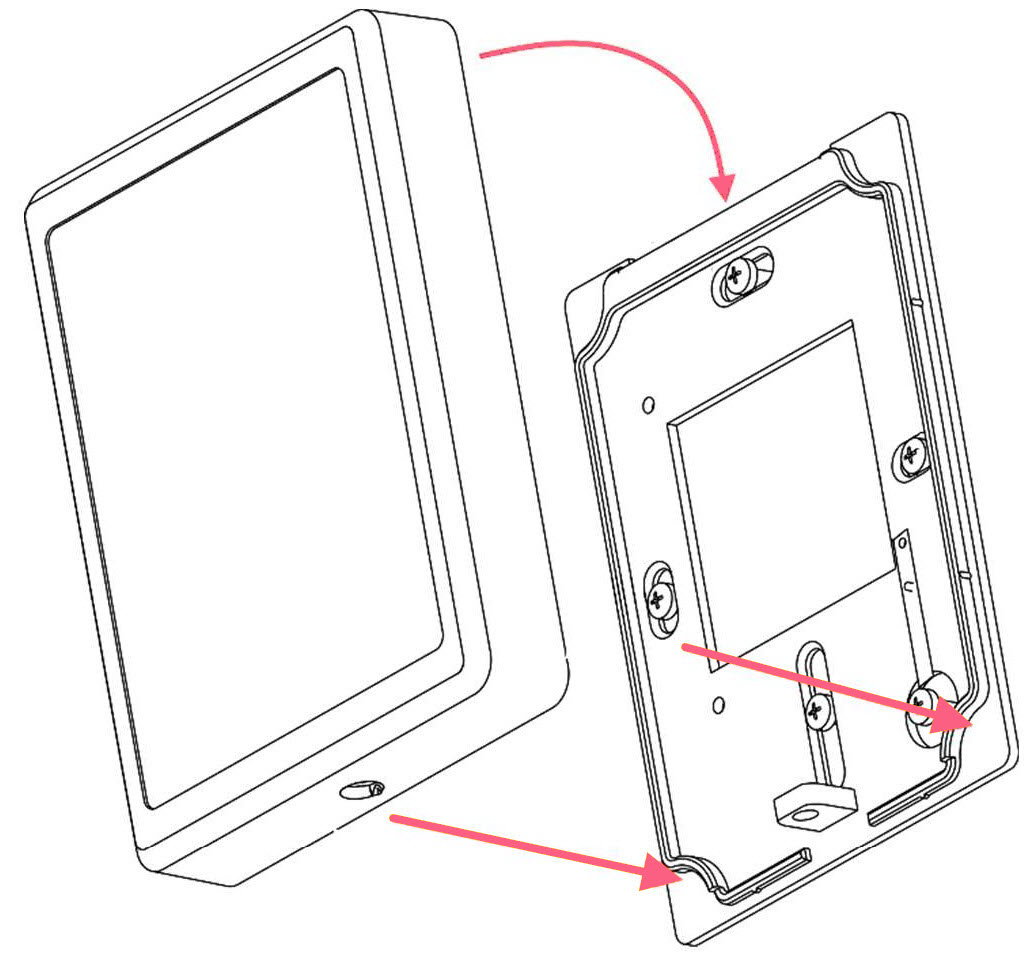

    Placing the cover on the base plate of the Alarm Keypad.

  4. Secure the top cover of the keypad to the base plate by fastening the security screw at the base of the keypad.

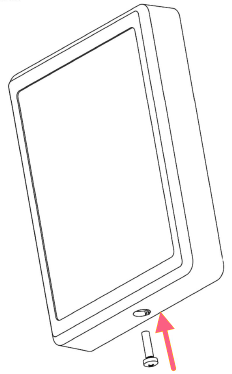

    Fastening security screw to base of Alarm Keypad.
