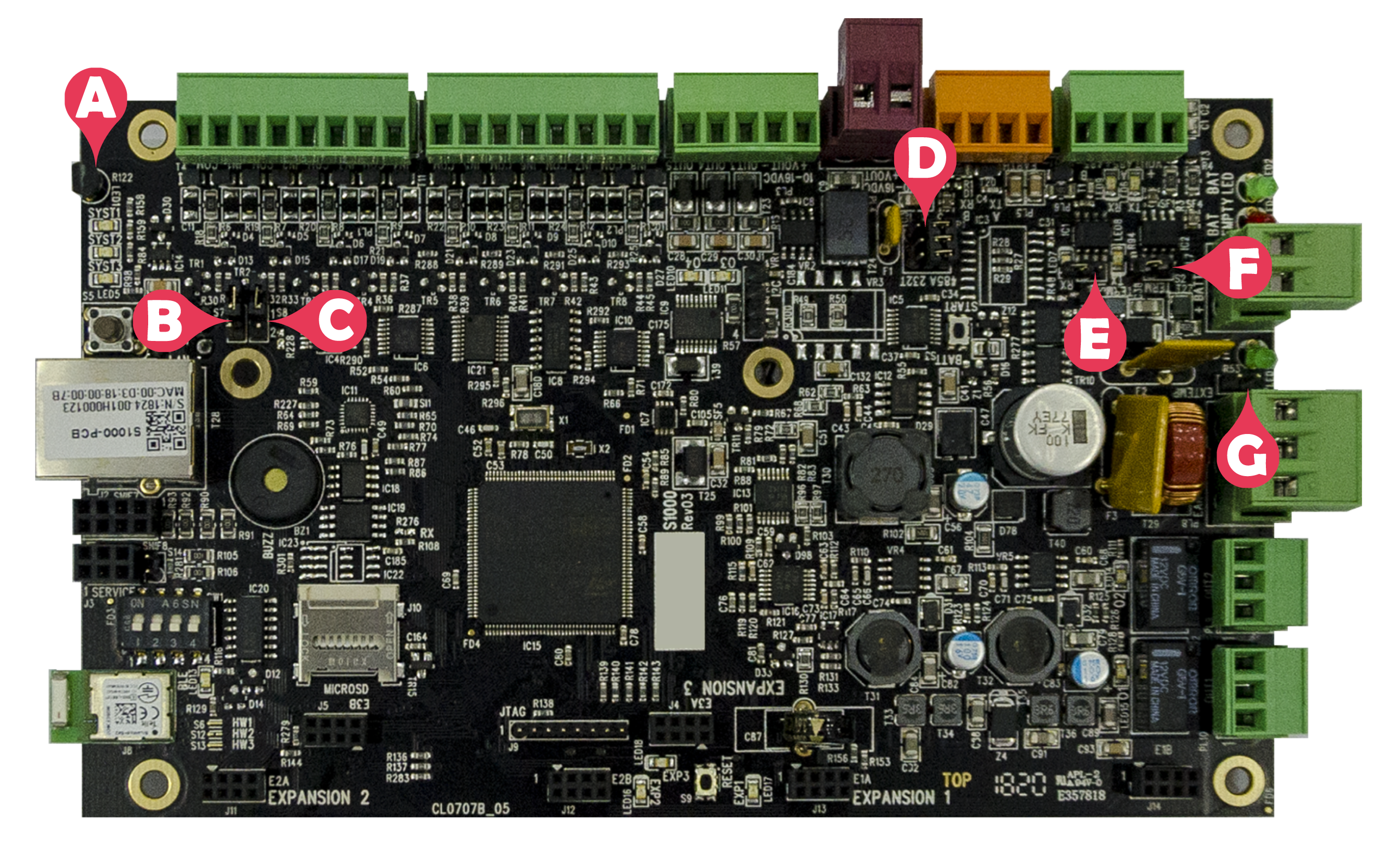

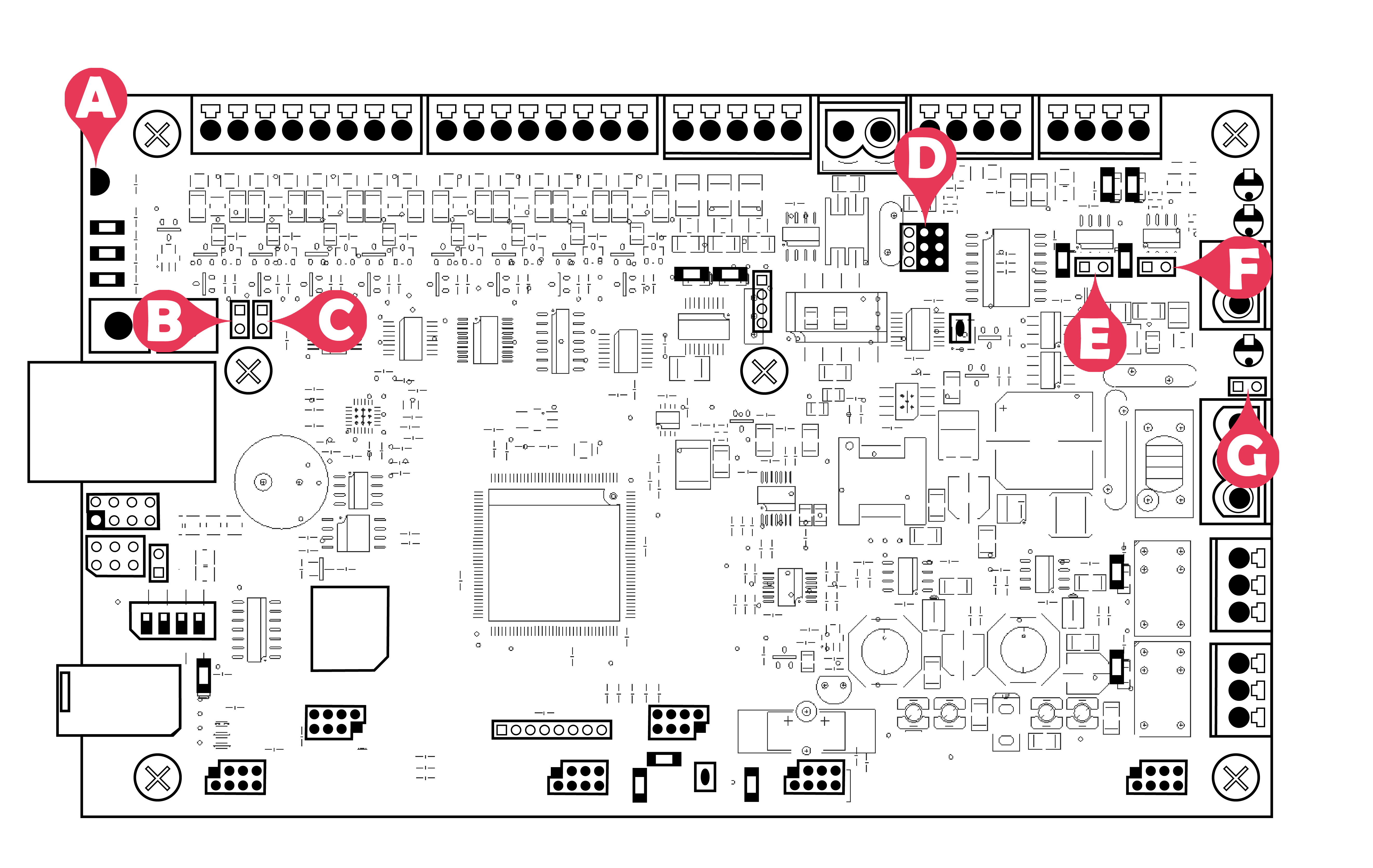

Links
|
Label # |
Link |
Description |
|---|---|---|
|
A |
|
Internal temperature sensor |
|
B |
S7 |
Enclosure lid tamper sensor Disable by placing a shorting plug on this 2-pin header. |
|
C |
S8 |
Enclosure off-the-wall tamper sensor Disable by placing a shorting plug on this 2-pin header. |
|
D |
|
RS232/RS485 selection links at port PL5 |
|
E |
S1 |
Termination link for RS232/RS485 at port PL5 |
|
F |
S2 |
Termination link for RS485 at port PL6 |
|
G |
S4 |
Battery temperature sensor link |
