Connections

Any device connected to the data ports (RS485, RS232 or Ethernet) of the S1000 Controller, with an external power supply providing power to the system, must comply with ITE (Information Technology Equipment) Safety Standard EN 60950-1:2006 + A2:2013 or EN 62368-1:2014 for Europe or CSA/UL 60950-1:2006 + A2:2013 or 62368-1:2014 for Canada for respective regional compliance.

All communication between controllers and the supervising station receiving equipment is protected by message data encryption and communication connection authentication using industry-standard encryption.

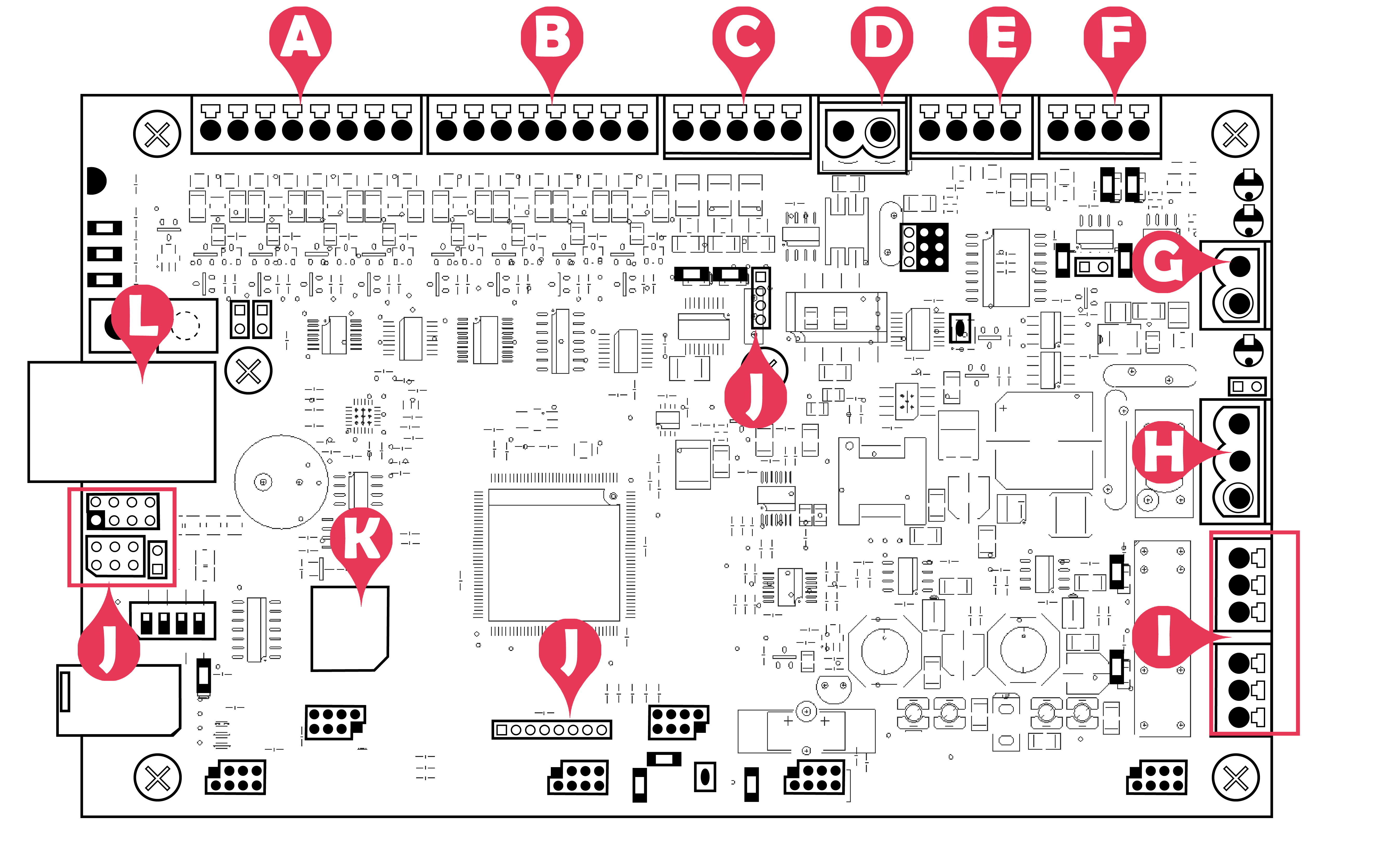

Connections labeled on the S1000 Controller.

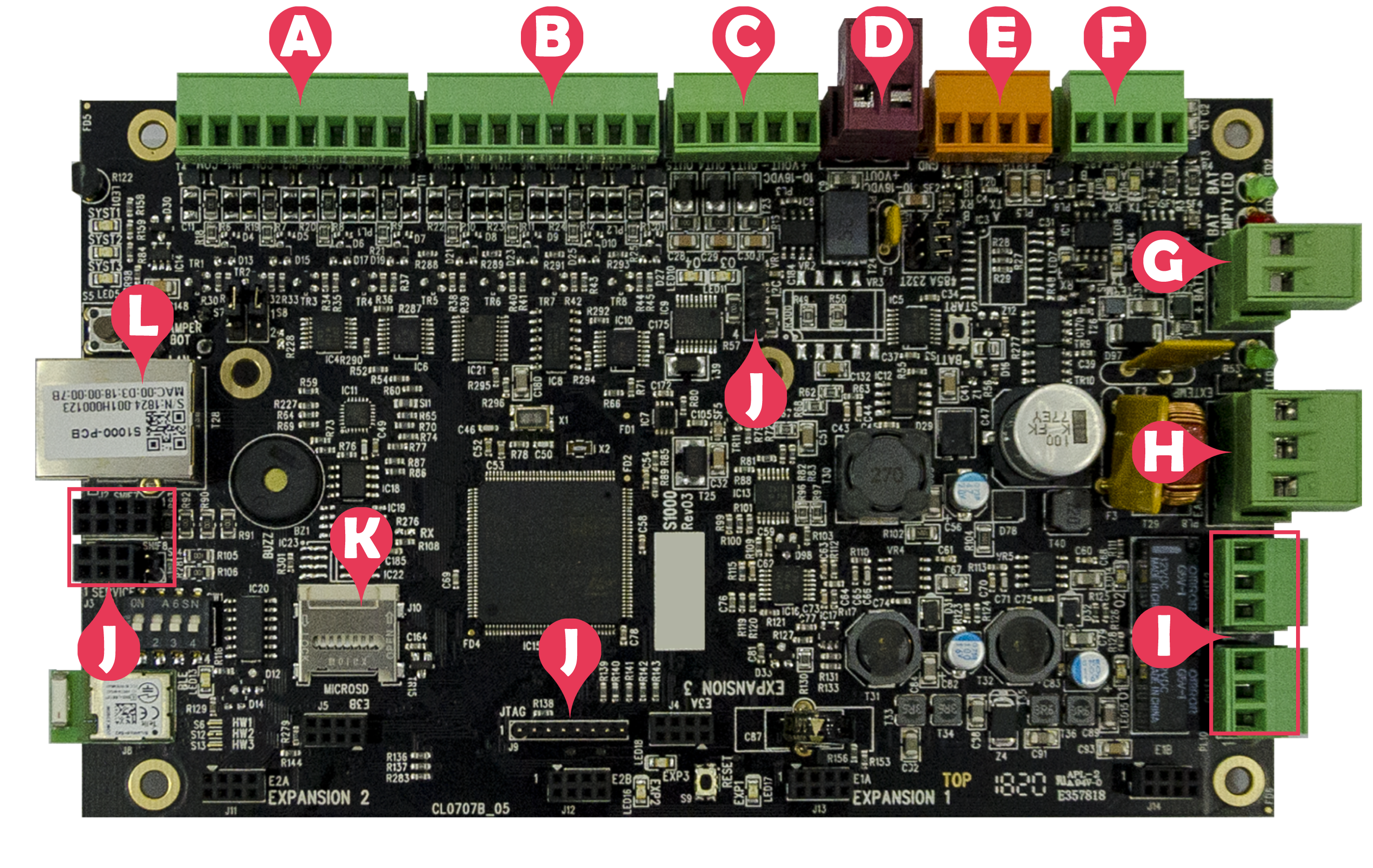

Connections labeled on the S1000.

Function

Connection

Default value

Range

Indicator

Label #A

End-of-line (EOL) monitored and analog inputs 1 to 4 (PL1)

EOL monitored input 1

IN1 and COM

(PL1, 7 and 8)

10K

1K to 50K



Analog input 1

IN1 and COM

(PL1, 7 and 8)



0VDC to 10VDC



EOL monitored input 2

IN2 and COM

(PL1, 5 and 6)

10K

1K to 50K



Analog input 2

IN2 and COM

(PL1, 5 and 6)



0VDC to 10VDC



EOL monitored input 3

IN3 and COM

(PL1, 3 and 4)

10K

1K to 50K



Analog input 3

IN3 and COM

(PL1, 3 and 4)



0VDC to 10VDC



EOL monitored input 4

IN4 and COM

(PL1, 1 and 2)

10K

1K to 50K



Analog input 4

IN4 and COM

(PL1, 1 and 2)



0VDC to 10VDC



Label #B

End-of-line (EOL) monitored and analog inputs 5 to 8 (PL2)

EOL monitored input 5

IN5 and COM

(PL2, 7 and 8)

10K

1K to 50K



Analog input 5

IN5 and COM

(PL2, 7 and 8)



0VDC to 10VDC



EOL monitored input 6

IN6 and COM

(PL2, 5 and 6)

10K

1K to 50K



Analog input 6

IN6 and COM

(PL2, 5 and 6)



0VDC to 10VDC



EOL monitored input 7

IN7 and COM

(PL2, 3 and 4)

10K

1K to 50K



Analog input 7

IN7 and COM

(PL2, 3 and 4)



0VDC to 10VDC



EOL monitored input 8

IN8 and COM

(PL2, 1 and 2)

10K

1K to 50K



Analog input 8

IN8 and COM

(PL2, 1 and 2)



0VDC to 10VDC



Label #C

Voltage output and O/C (open collector) outputs 3 to 5 (PL3)

Voltage output

VOUT+ (PL3, 1)



0.5A at 10VDC to 16VDC



Voltage output

VOUT- (PL3, 2)



0V



O/C output 3

OUT3 (PL3, 3)



0mA to 100mA

LED11

O/C output 4

OUT4 (PL3, 4)



0mA to 100mA

LED10

O/C output 5

OUT5 (PL3, 5)



0mA to 100mA



Figure #D

Voltage output (PL4)

Voltage output +

VOUT+ (PL4, 1)



0.5A at 10VDC to 16VDC



Voltage output -

VOUT- (PL4, 2)



0V



Label #E

RS485/RS232 (optionally isolated) serial port (PL5)

Cable shield connection

EARTH (PL5, 1)







RS485 D+/RS232 Tx

A/TX (PL5, 2)





LED8

RS485 D-/RS232 Rx

B/RX (PL5, 3)





LED7

Ground

OUT3 (PL5, 4)







Label #F

RS485 serial port (PL6 )

Voltage output +

VOUT+ (PL6, 1)



10VDC to 16VDC



RS485 D+

A (PL6, 2)





LED6

RS485 D-

B (PL6, 3)





LED9

Voltage output -

VOUT- (PL6, 1)



0V



Label #G

Battery input (PL7 )

Battery input +

BATT+ (PL7, 1)



12VDC

LED2

Battery input -

BATT- (PL7, 2)



0V



Label #H

Power supply input (PL8 )

Power supply earth

EARTH (PL8, 1)







Power supply input

V+ (PL8, 2)



10VDC to 16VDC

LED12

Power supply ground

0V (PL8, 3)



0V



Label #I

Relay outputs 1 to 2 (PL10 and PL9)

Relay output 1

OUT1

(PL10, 1-NC, 2-COM and 3-NO)



1A at 24VDC

LED15

Relay output 2

OUT2

(PL9, 1-NC, 2-COM and 3-NO)



1A at 24VDC

LED14

Label #J

Engineering use

Service port

SERVICE (J3)







Sniffer ports

SNIF7 and SNIF8 (J2)







JTAG port

JTAG (J9)







12C port

12C (J1)







Label #K

MicroSD memory card socket. See Specifications for recommended SD cards.

MicroSD memory card socket

MICROSD (J10)







Label #L

Ethernet (10M/100M)

Ethernet 10M/100M LAN (T28)

RJ45 Connector





Yellow -

Green -
