Connections
|

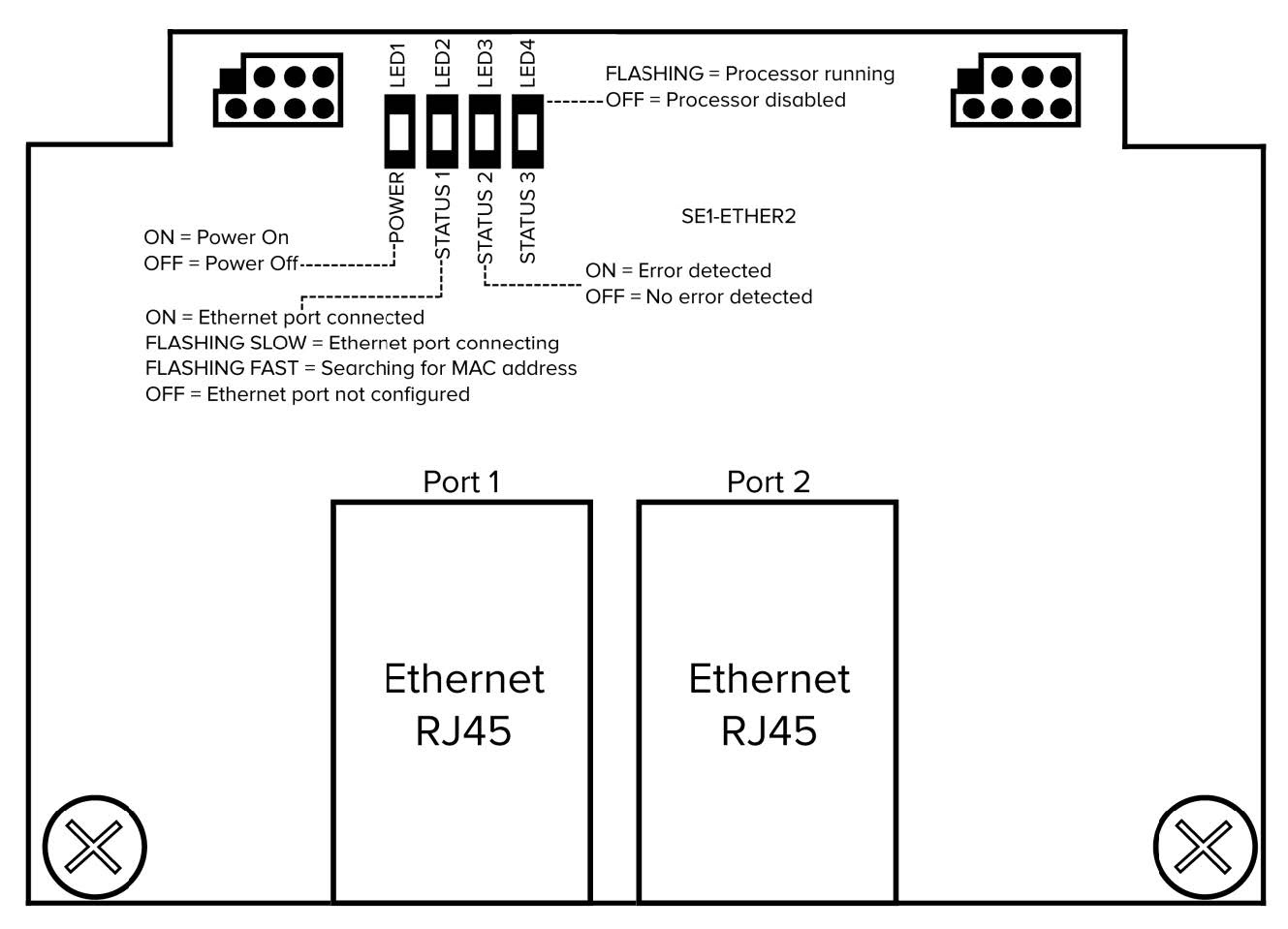

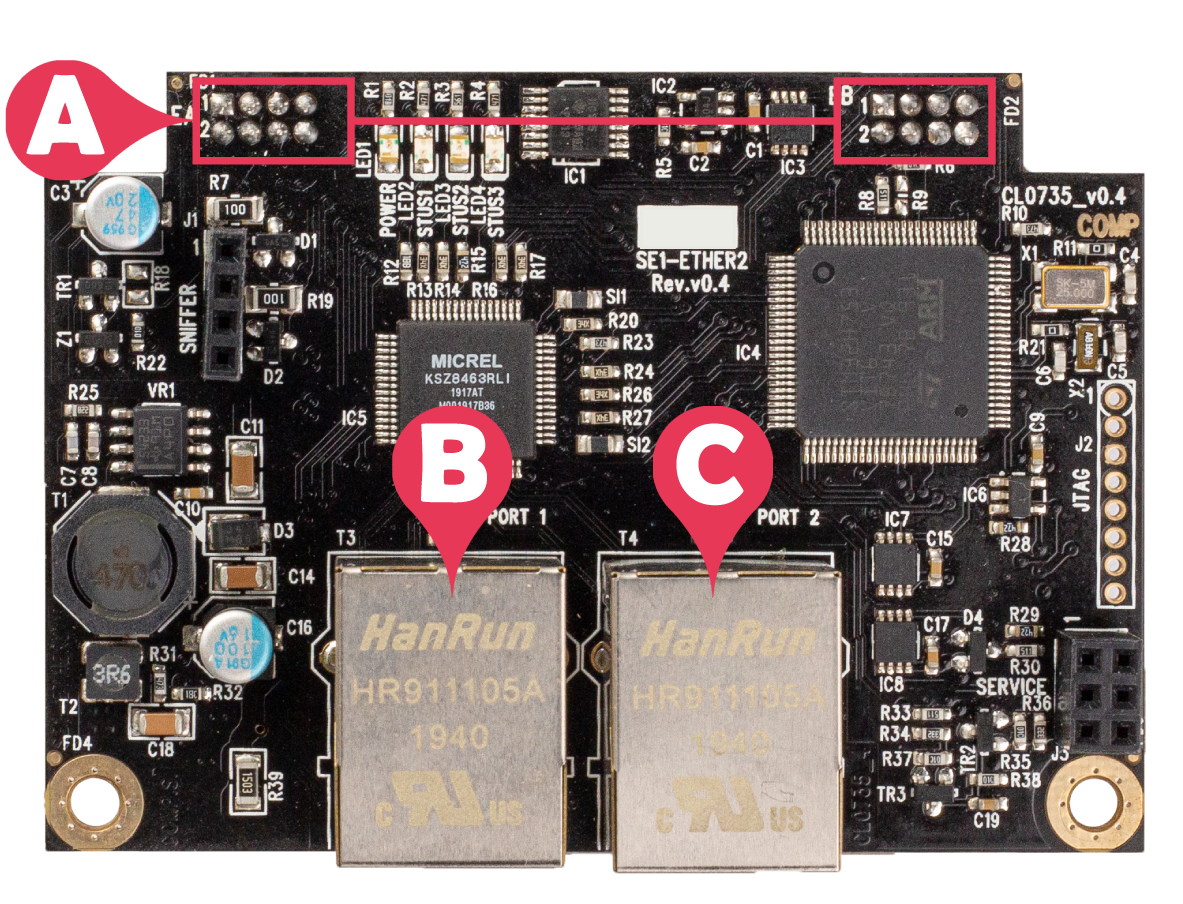

Label # |
Name |
Function |
Connection |
|---|---|---|---|
|
A |
Expansion plug |
Connects to the S1000 Controller |
Any available expansion slot |
|
B |
Ethernet port 1 (10/100M) |
Ethernet 10/100M LAN (T28) |
RJ45 connector |
|
C |
Ethernet port 2 (10/100M) |
Ethernet 10/100M LAN (T28) |
RJ45 connector |
