Configuration

An Elevator Control Module includes installation of:

  • a Remote IO
  • 1 x 8 Input 2 Output Expansion Card
  • 2 x 6 Output Expansion Cards.

Each Elevator Control Module, controls and monitors 1 elevator car for up to 16 floors. Install more modules for every 16-floor increment to a maximum of 60 floors.

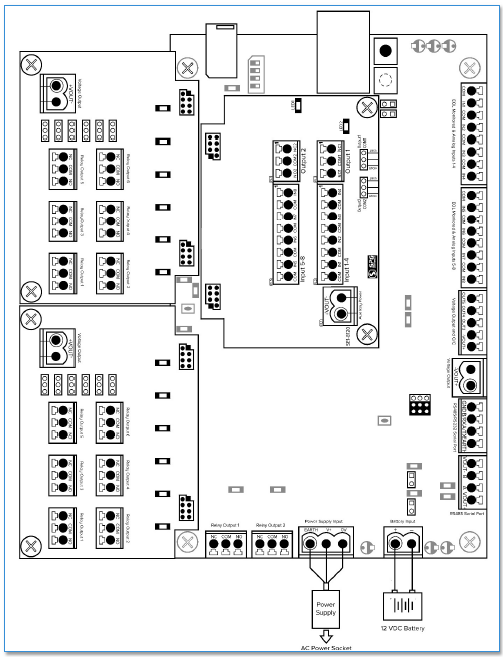

An Elevator Module.
