Wiring the Face Reader

Refer to the manufacturer's installation guide for complete details.

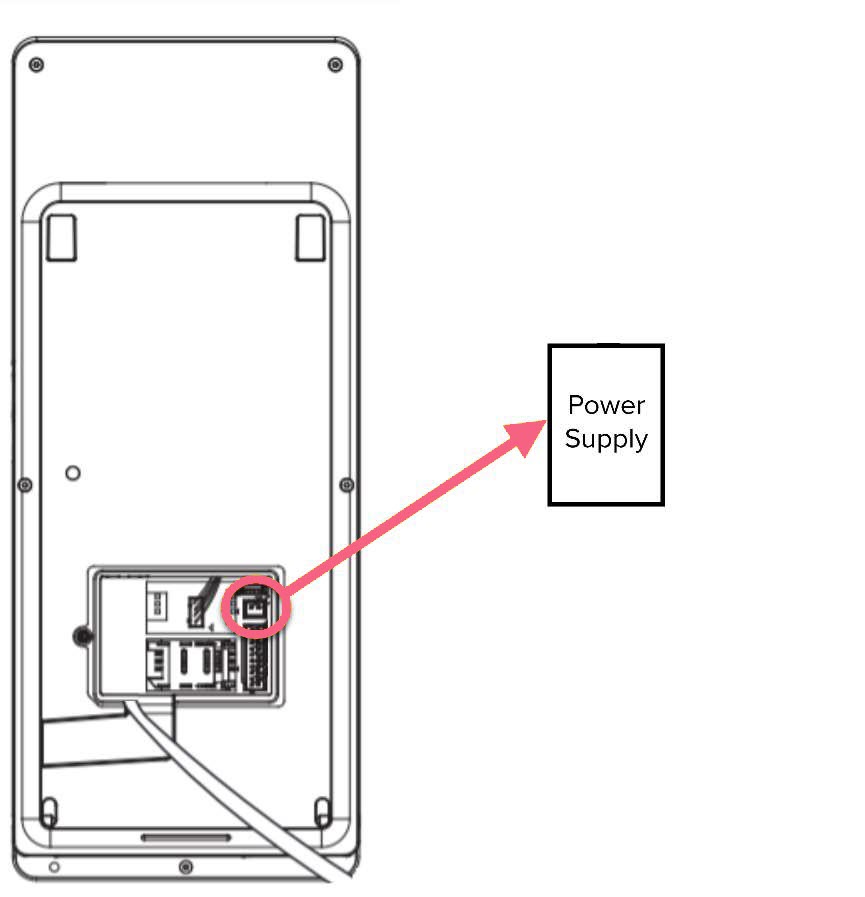

1. Connect the 12V and ground wires from the face reader power interface to a power supply.

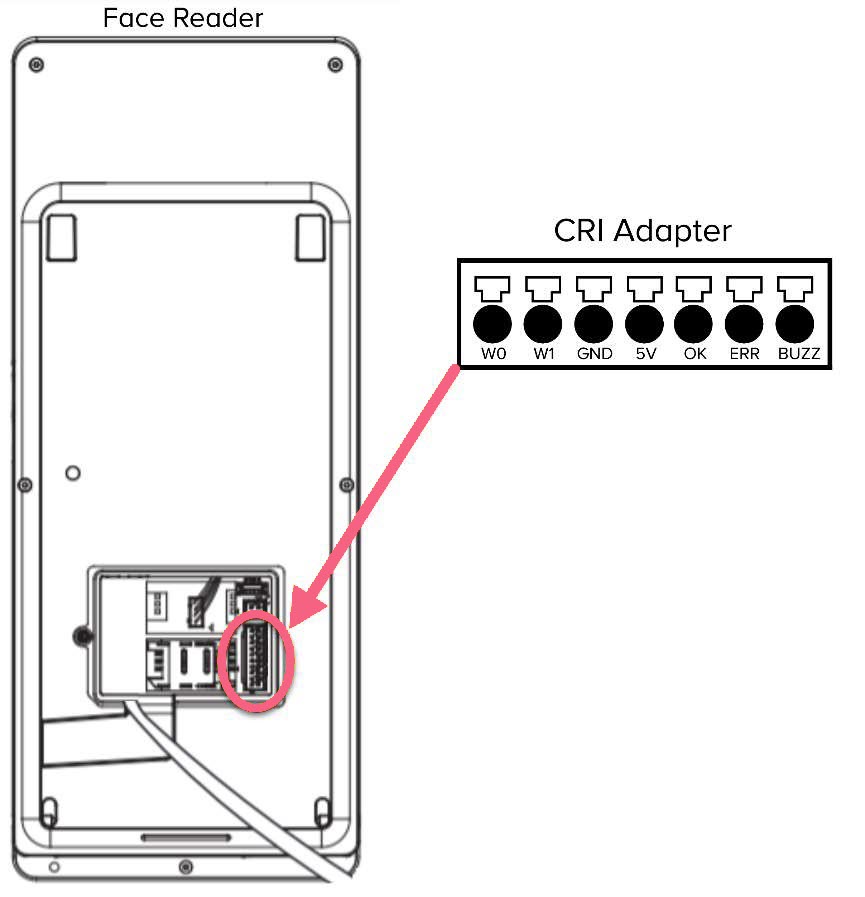

2. Snap the CRI adapter on the face reader data ports.

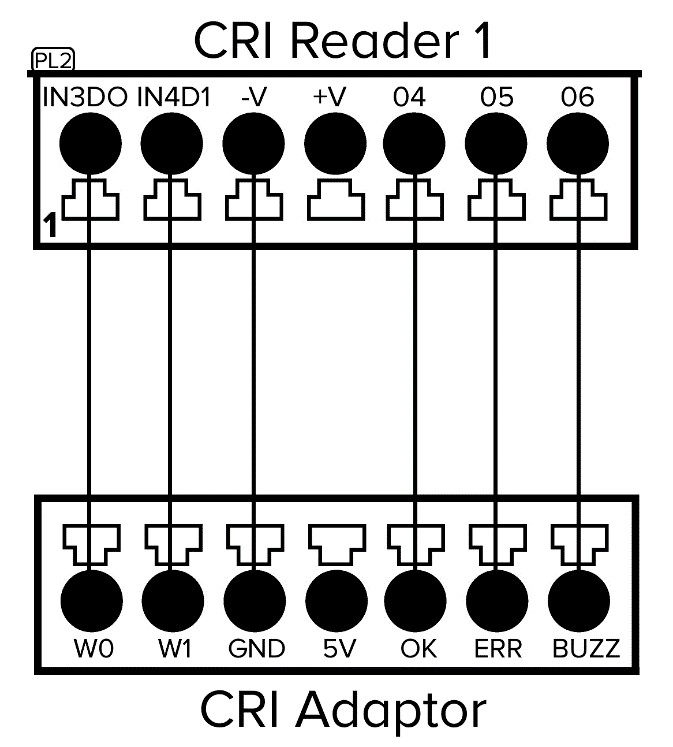

3. Connect the face reader W0, W1, 0K and ERR wires to the CRI adapter and plug the adapter into the CRI.

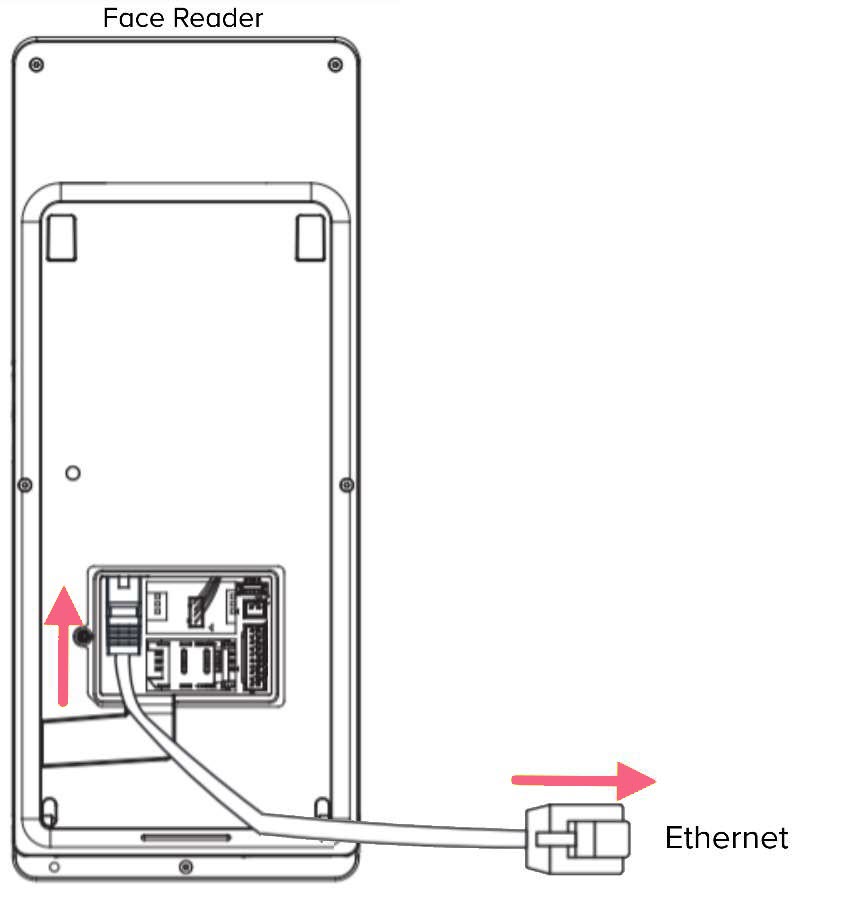

4. Connect the face reader to the same network as the gateway using the Ethernet.
