Wiring

Connect the ASSA ABLOY AH-30 Hub directly to the S1000 Controller's RS485 bus, either isolated or non-isolate.

Wiring can use the connection pairs PL4-PL5 or PL6 with standard connections.

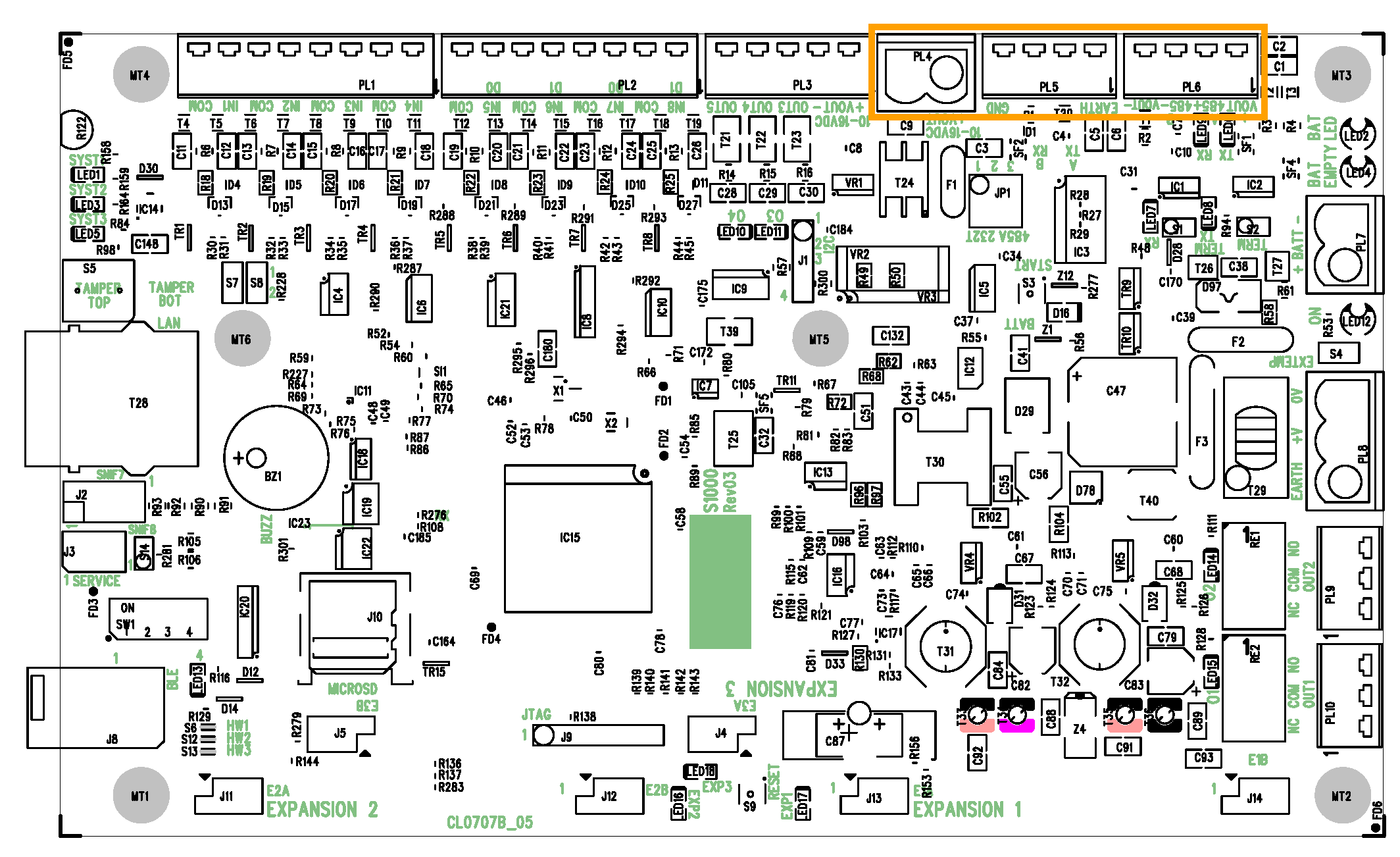

Connection pairs for wiring labeled on the S1000.

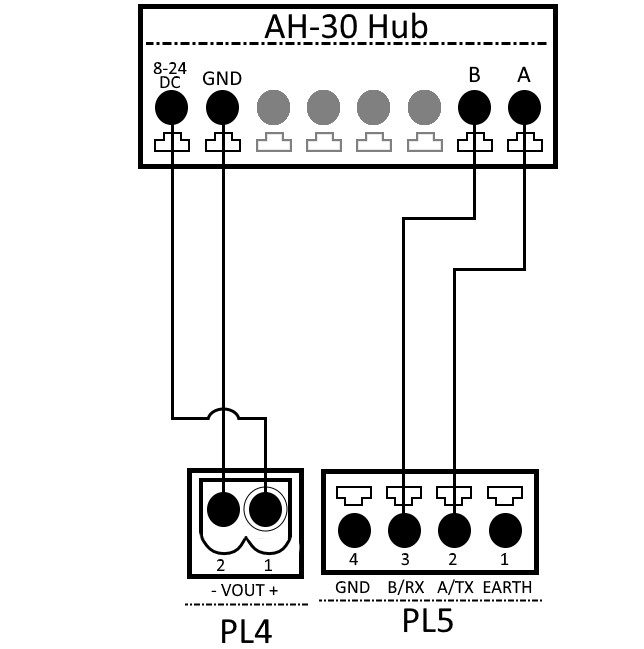

Isolated RS485: PL4 and PL5 connection

Wiring the AH-30 hub to the S1000 using the isolated RS485 bus.

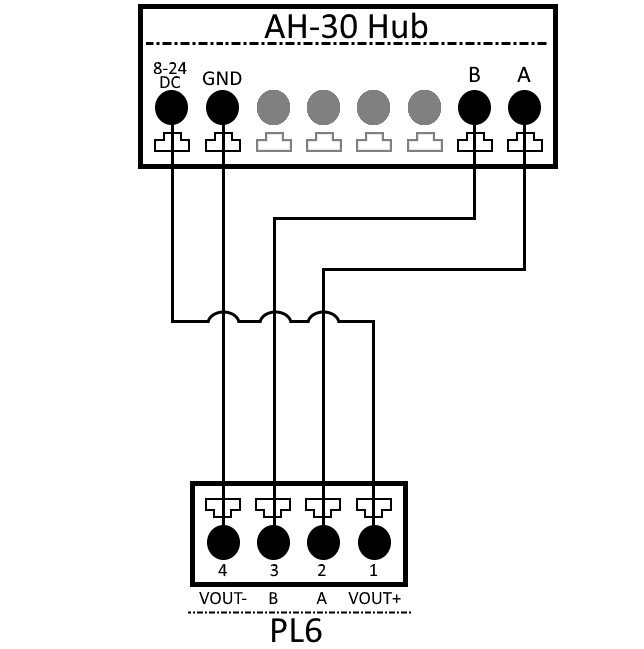

Non-isolated RS485: PL6 connection

Wiring the AH-30 hub to the S1000 using the non-isolated RS485 bus.
