Setting the AH-30 Hub Address

The AH-30 Hub's address can be set using DIP switches. Each hub on a RS485 bus must have a unique address.

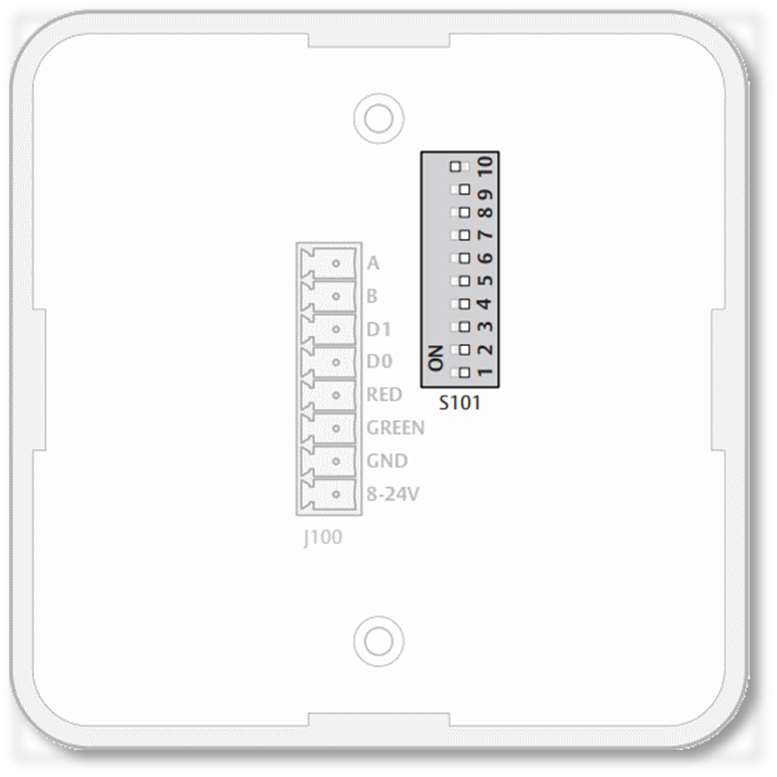

Access the hub's DIP switches by removing the back cover of the hub (if fitted).

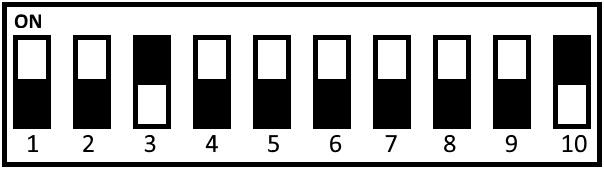

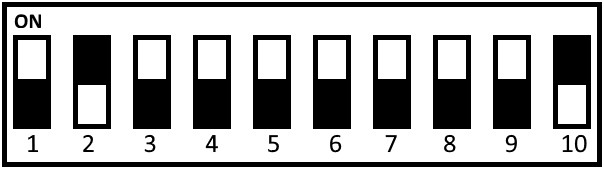

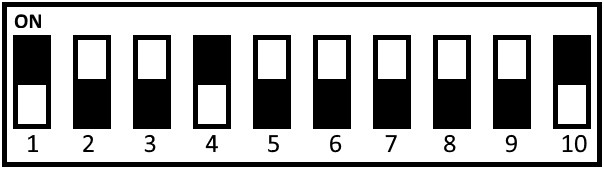

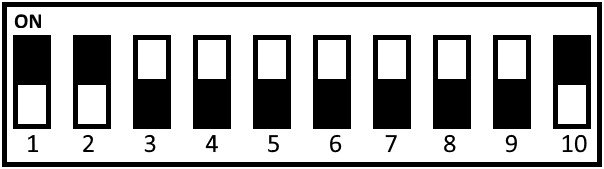

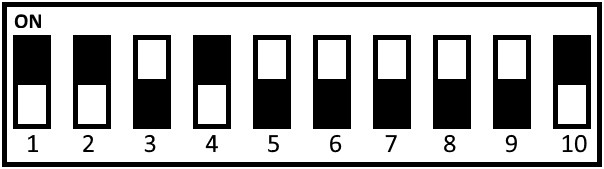

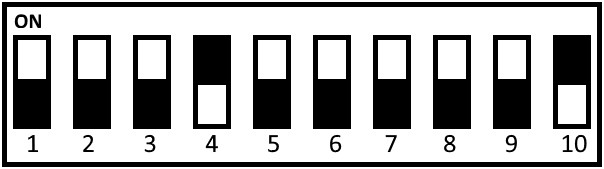

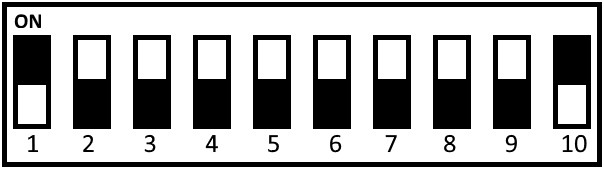

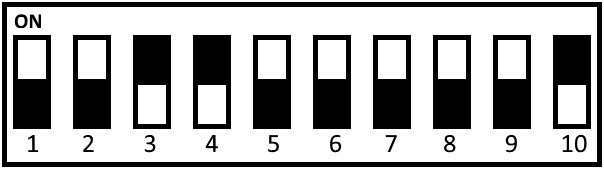

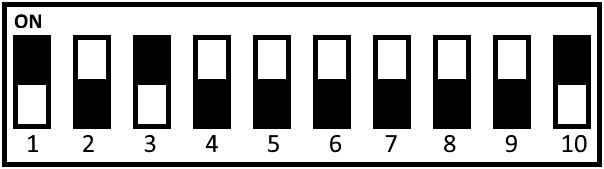

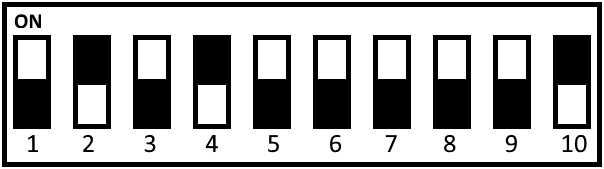

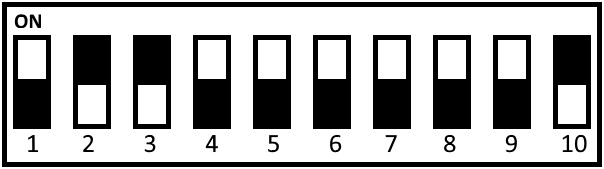

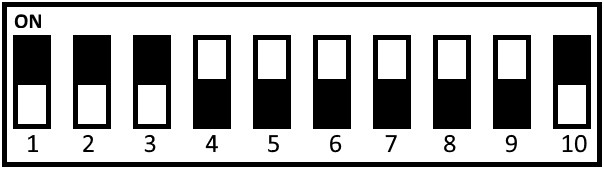

The following table shows DIP switch settings for addresses 1 to 12.

Address	PINs
1
2
3
4
5
6
7
8
9
10
11
12

For more information about DIP switch settings, RS485 termination, pull-up, pull-down and antenna DIP switch settings, see the Aperio documentation.
