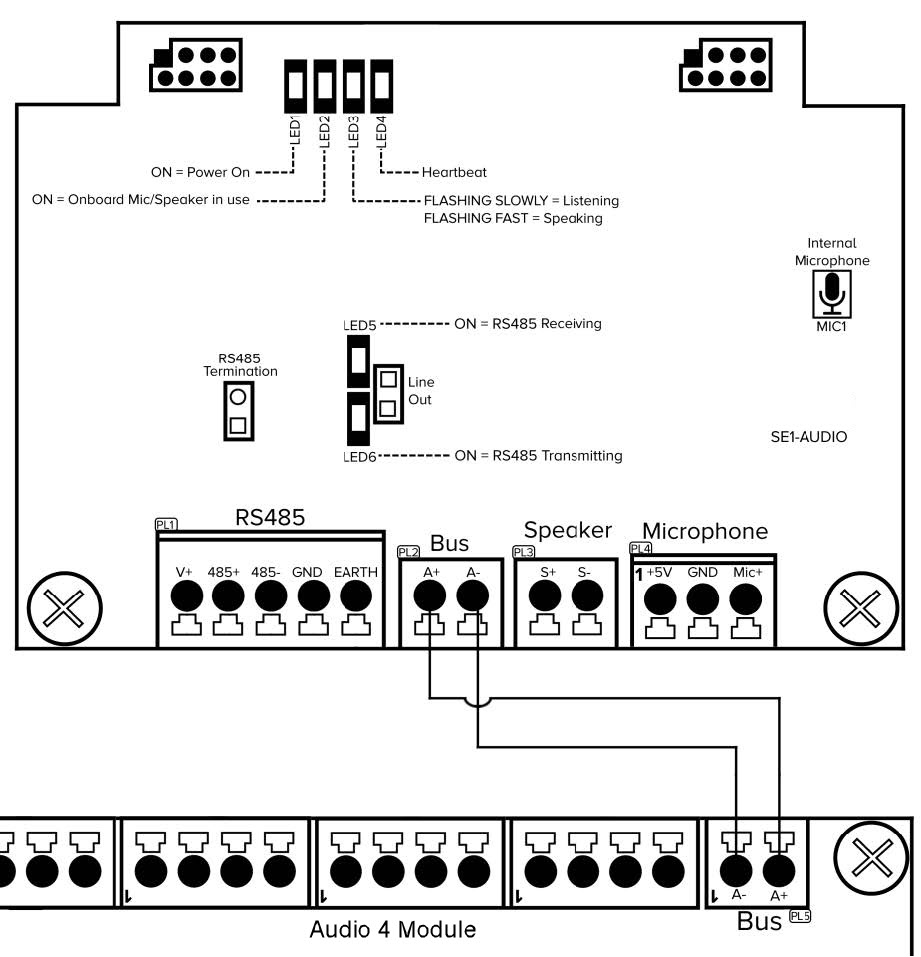

Wiring
The Audio Converter Expansion Card must connect to the Audio 4 Module of the S1000 Controller.
