Device Functions
|
Function |
Connection |
Default value |
Range |
Indicator |
|---|---|---|---|---|
|

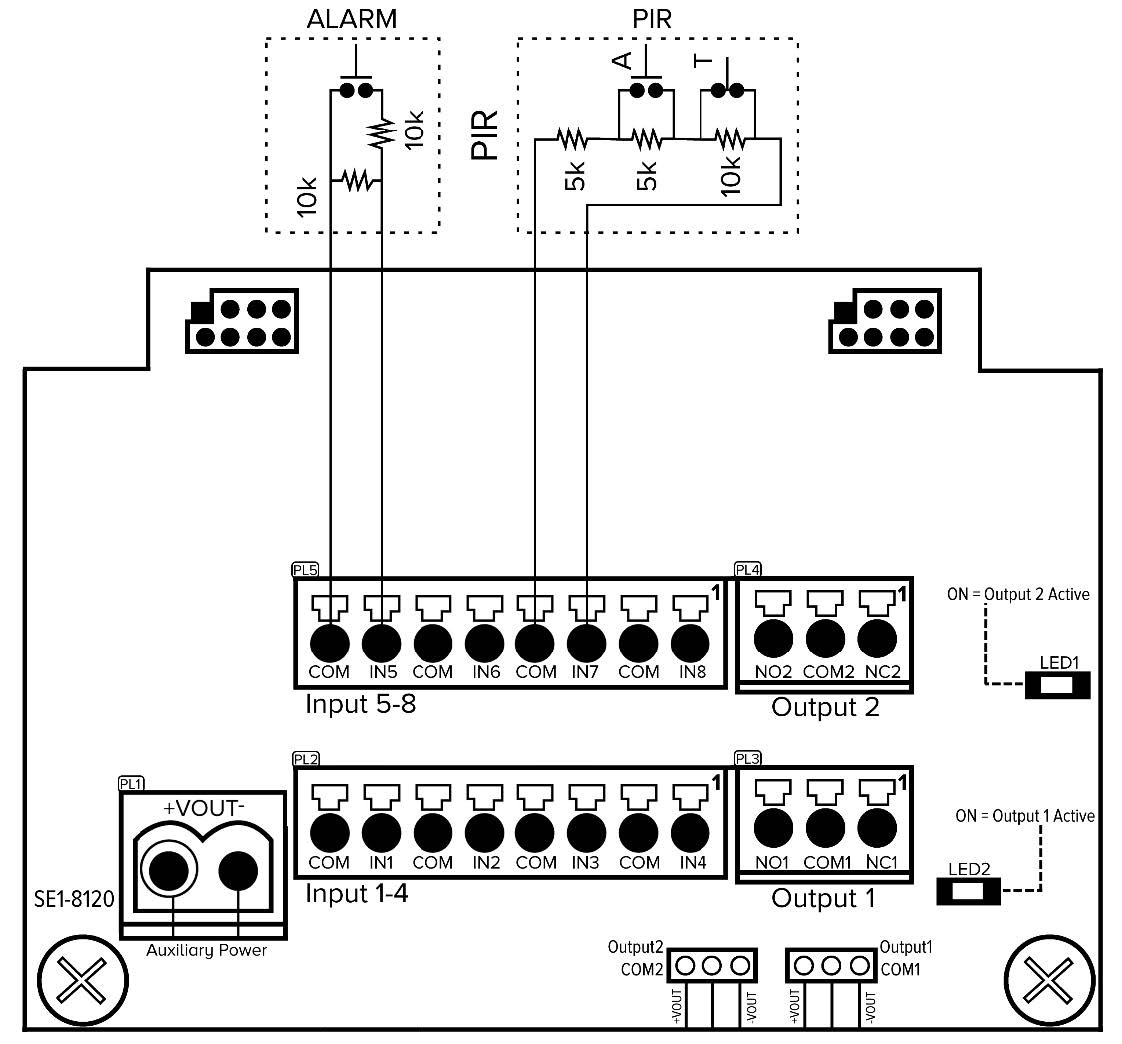

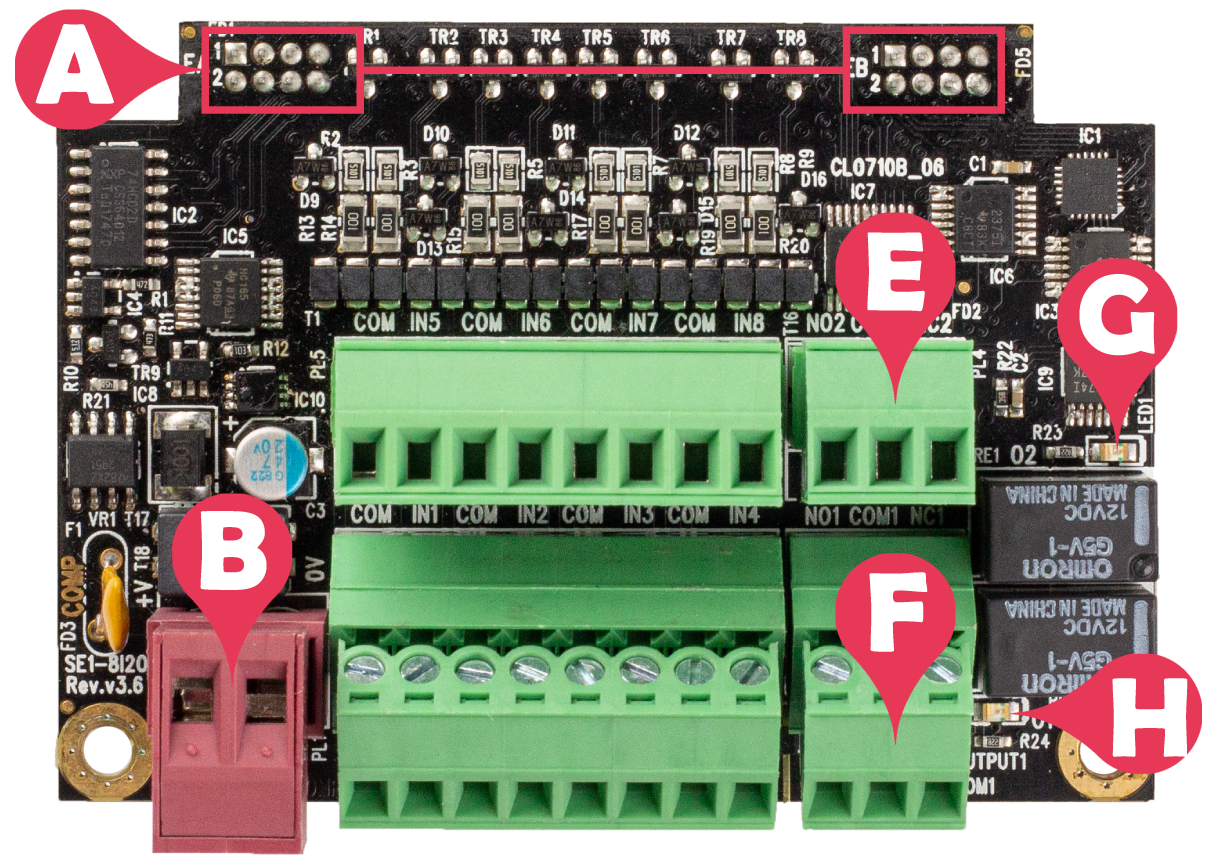

Label #A Expansion plug |
||||
|
Connects to the S1000 Controller |
Any available expansion slot |
|
|
|
|
Label #B Auxiliary power (PL1) |
||||
|
Voltage output + |
VOUT+ |
|
0.5A at 10VDC to 16VDC |
|
|
Voltage output - |
VOUT- |
|
0V |
|
|
Label #C End-of-line (EOL) monitored and analog inputs 5 to 8 (PL2) |
||||
|
EOL monitored input 5 |
IN5 and COM (PL2, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 5 |
IN5 and COM (PL2, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 6 |
IN6 and COM (PL2, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 6 |
IN6 and COM (PL2, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 7 |
IN7 and COM (PL2, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 7 |
IN7 and COM (PL2, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 8 |
IN8 and COM (PL2, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 8 |
IN8 and COM (PL2, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #D End-of-line (EOL) monitored and analog inputs 1 to 4 (PL1) |
||||
|
EOL monitored input 1 |
IN1 and COM (PL1, 7 and 8) |
10K |
1K to 50K |
|
|
Analog input 1 |
IN1 and COM (PL1, 7 and 8) |
|
0VDC to 10VDC |
|
|
EOL monitored input 2 |
IN2 and COM (PL1, 5 and 6) |
10K |
1K to 50K |
|
|
Analog input 2 |
IN2 and COM (PL1, 5 and 6) |
|
0VDC to 10VDC |
|
|
EOL monitored input 3 |
IN3 and COM (PL1, 3 and 4) |
10K |
1K to 50K |
|
|
Analog input 3 |
IN3 and COM (PL1, 3 and 4) |
|
0VDC to 10VDC |
|
|
EOL monitored input 4 |
IN4 and COM (PL1, 1 and 2) |
10K |
1K to 50K |
|
|
Analog input 4 |
IN4 and COM (PL1, 1 and 2) |
|
0VDC to 10VDC |
|
|
Label #E Relay outputs 1 to 2 (PL3 and PL4) |
||||
|
Relay output 2 |
OUT2 (PL4, 1-NC2, 2-COM2 and 3-NO2) |
|
1A at 24VDC |
LED2 |
|
Label #F Relay outputs 1 to 2 (PL3 and PL4) |
||||
|
Relay output 1 |
OUT1 (PL3, 1-NC1, 2-COM1 and 3-NO1) |
|
1A at 24VDC |
LED1 |
|
Label #G Relay output LED |
||||
|
LED1 |
ON indicates that the relay output 2 is activated. |
|||
|
Label #H Relay output LED |
||||
|
LED2 |
ON indicates that the relay output 2 is activated. |
|||
