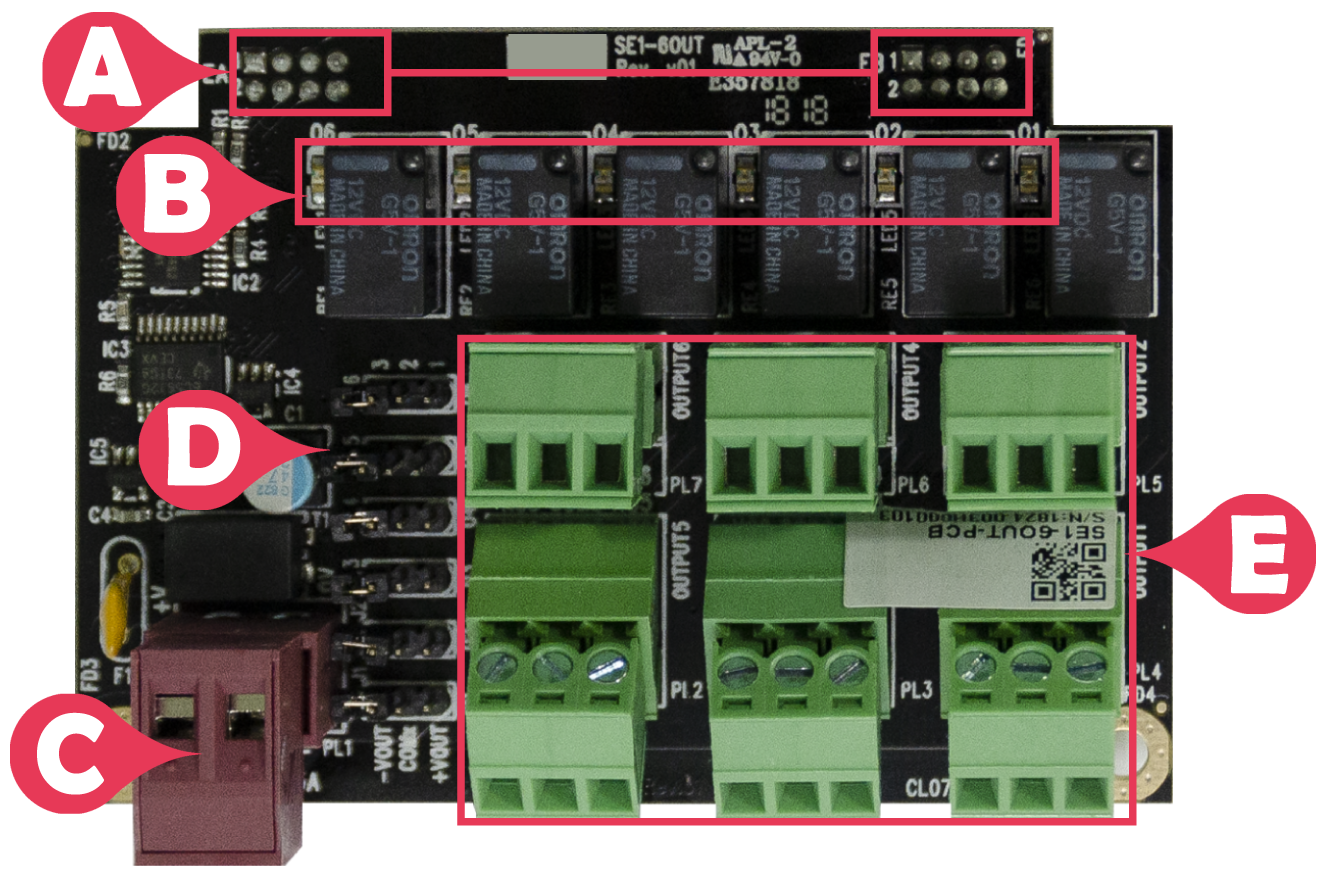

Device Functions
|
Function |
Connection |
Range |
Indicator |
|---|---|---|---|
|
Label #A Expansion plug |
|||
|
Connects to the S1000 Controller |
Any available expansion slot |
|
|
|
Label #C Auxiliary power (PL1) |
|||
|
Voltage output + |
VOUT+ |
0.5A at 10VDC to 16VDC |
|
|
Voltage output - |
VOUT- |
0V |
|
|
Label #E Relay outputs 1 to 6 (PL2 and PL7) |
|||
|
Relay output 1 |
OUT1 (PL2, 1-NC1, 2-COM1 and 3-NO1) |
1A at 24VDC |
LED1 |
|
Relay output 2 |
OUT2 (PL3, 1-NC2, 2-COM2 and 3-NO2) |
1A at 24VDC |
LED2 |
|
Relay output 3 |
OUT3 (PL4, 1-NC3, 2-COM3 and 3-NO3) |
1A at 24VDC |
LED3 |
|
Relay output 4 |
OUT1 (PL5, 1-NC4, 2-COM4 and 3-NO4) |
1A at 24VDC |
LED4 |
|
Relay output 5 |
OUT1 (PL6, 1-NC5, 2-COM5 and 3-NO5) |
1A at 24VDC |
LED5 |
|
Relay output 6 |
OUT1 (PL7, 1-NC6, 2-COM6 and 3-NO6) |
1A at 24VDC |
LED6 |
Label #B - Relay output LED
|
Indicator |
State and description |
|---|---|
|
LED1 |
ON indicates that relay output 1 is activated |
|
LED2 |
ON indicates that relay output 2 is activated |
|
LED3 |
ON indicates that relay output 3 is activated |
|
LED4 |
ON indicates that relay output 4 is activated |
|
LED5 |
ON indicates that relay output 5 is activated |
|
LED6 |
ON indicates that relay output 6 is activated |
Label #D - J1 to J6 termination link for relay output port at PL2 to PL7
|
Link |
Pins |
|---|---|
|
J1 |
Link to VOUT+ to provide this supply to relay common PL2, 3-NO1 Link to VOUT- to provide this supply to relay common PL2, 1- NC1 |
|
J2 |
Link to VOUT+ to provide this supply to relay common PL3, 3-NO2 Link to VOUT- to provide this supply to relay common PL3, 1- NC2 |
|
J3 |
Link to VOUT+ to provide this supply to relay common PL4, 3-NO3 Link to VOUT- to provide this supply to relay common PL4, 1- NC3 |
|
J4 |
Link to VOUT+ to provide this supply to relay common PL5, 3-NO4 Link to VOUT- to provide this supply to relay common PL5, 1- NC4 |
|
J5 |
Link to VOUT+ to provide this supply to relay common PL6, 3-NO5 Link to VOUT- to provide this supply to relay common PL6, 1- NC5 |
|
J6 |
Link to VOUT+ to provide this supply to relay common PL7, 3-NO6 Link to VOUT- to provide this supply to relay common PL7, 1- NC6 |
