Wiring

The S1000 Controller support the Modbus RTU protocol. Wiring can use the connection PL5 or PL6 with standard connections.

Note: The overall RS485 cable length connecting all devices must not be more than 1200m.

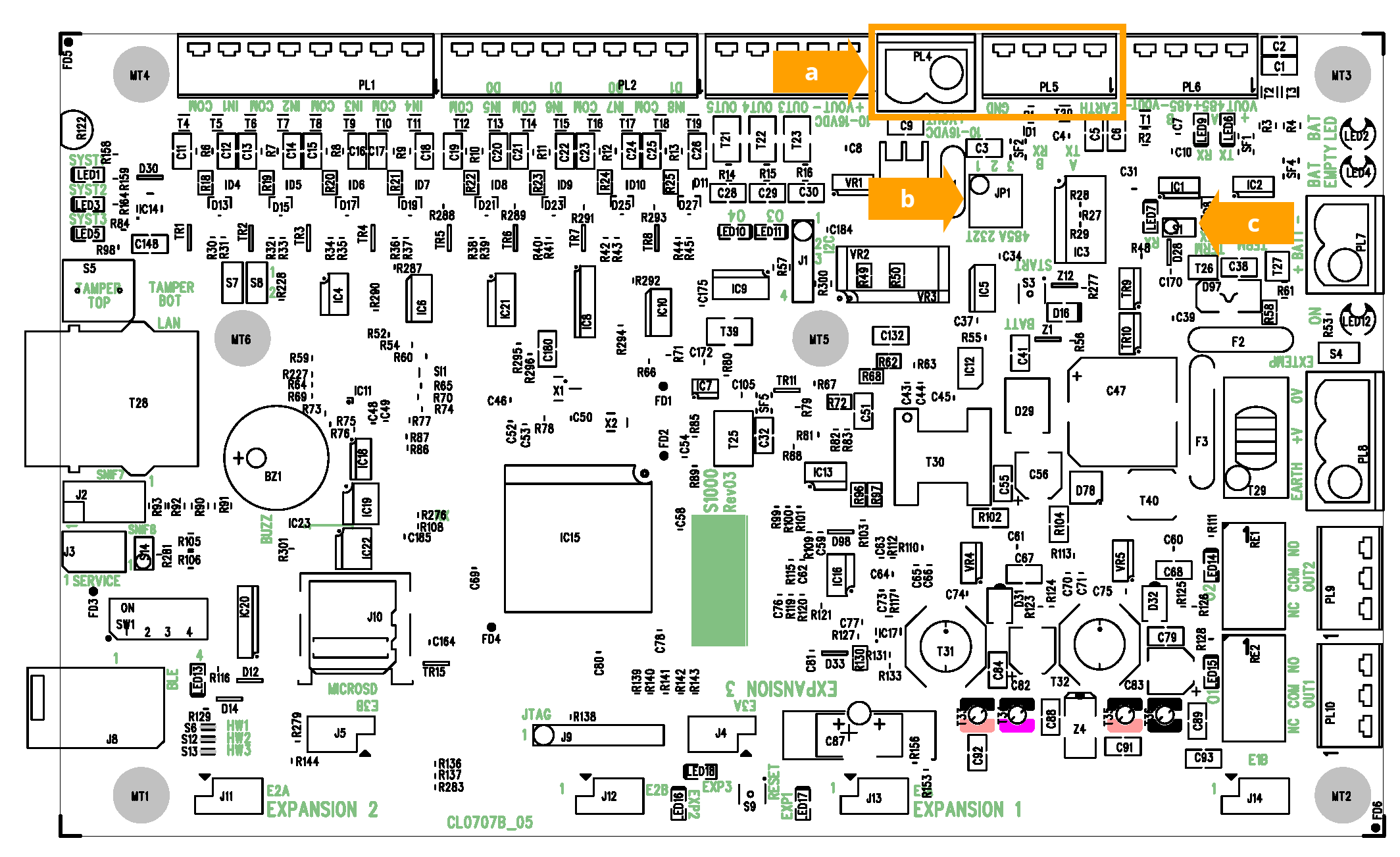

Wiring connections on the S1000 labeled for the Inovonics Receiver.

Label #

Description

a

Wiring can use the PL5 or PL6 connection with standard connections.

b

Set the jumper settings to enable the RS485 signal.

c

Open the S7: Termination Link for port PL5 or the S8: Termination Link for port PL6.

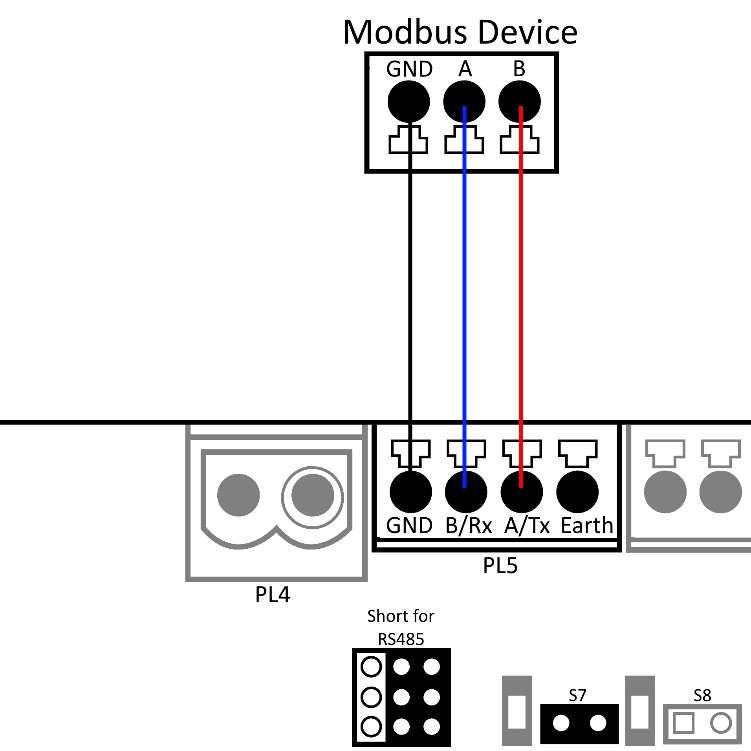

Wiring diagram to connect a Modbus device to the PL5 connection on the S1000 Controller.

Label #

Description

a

Wiring can use the PL5 connection with standard connections.

b

Set the jumper settings to enable the RS485 signal.

c

Open the S7: Termination Link for port PL5.

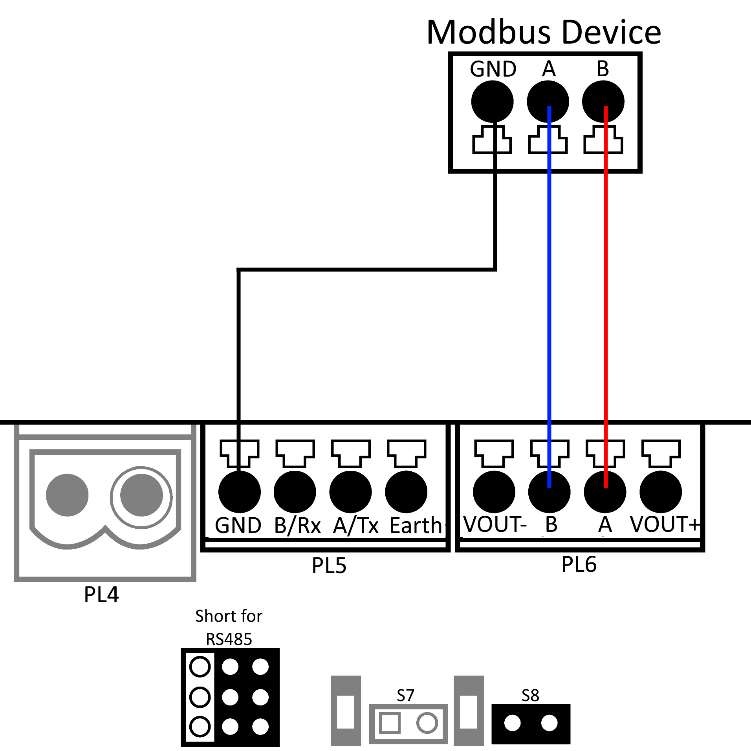

Wiring diagram to connect a Modbus device to the PL6 connection on the S1000 Controller.

Label #

Description

a

Wiring can use the PL5 and PL6 connection with standard connections.

b

Set the jumper settings to enable the RS485 signal.

c

Open the S8: Termination Link for port PL6.

Each Modbus device is given a unique address on the RS485 bus. Up to 8 Modbus devices can be added to the S1000 Controller.

The RS485 requires termination on both sides of the bus:

  • S1000 using the jumper
  • last device using the 120Ω resistor.

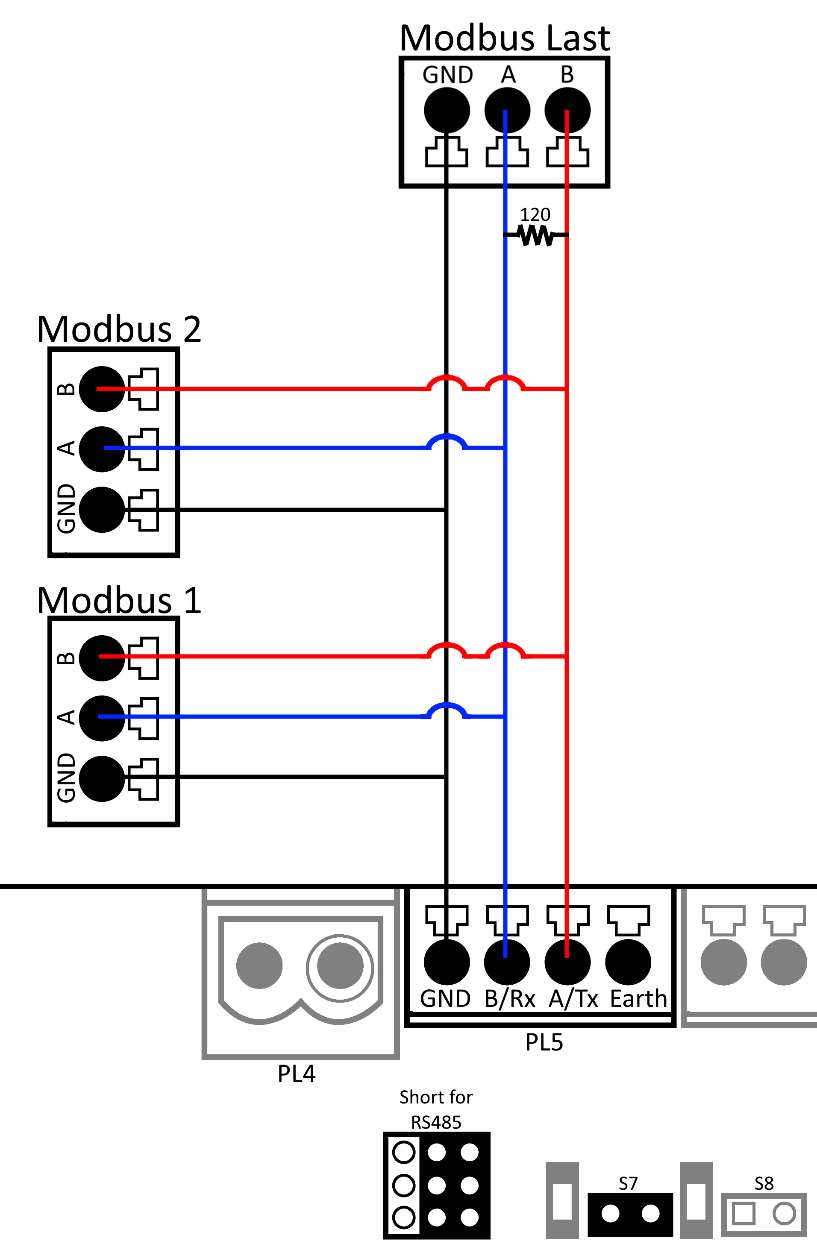

Wiring diagram to connect a multiple Modbus devices on the S1000 Controller.

Label #

Description

a

Terminate the last Modbus device using the 120Ω resistor as close to the last device as possible.

b

Wiring can use the PL5 and PL6 connection with standard connections.

c

Set the jumper settings to enable the RS485 signal.

d

Open the S7: Termination Link for port PL5 or the S8: Termination Link for port PL6.
Note: For OSDP RS485 termination, the first and last devices must be terminated. When using the S1000 Controller this is usually achieved with the DIP switch or TERM link header.
