Receiver Wiring

Connect the Inovonics EchoStream EN4000 Universal Serial Receiver or EN4200 Security-only Receiver directly to the S1000 Controller's RS232 connector (otherwise used as the isolated RS485 bus).

Wiring connections on the S1000 labeled for the Inovonics Receiver.

Label #

Description

a

Wiring can use the PL4-PL5 connection pairs with standard connections.

b

Set the jumper settings to enable the RS232 signal.

c

Open the S1: Termination Link for port PL5.

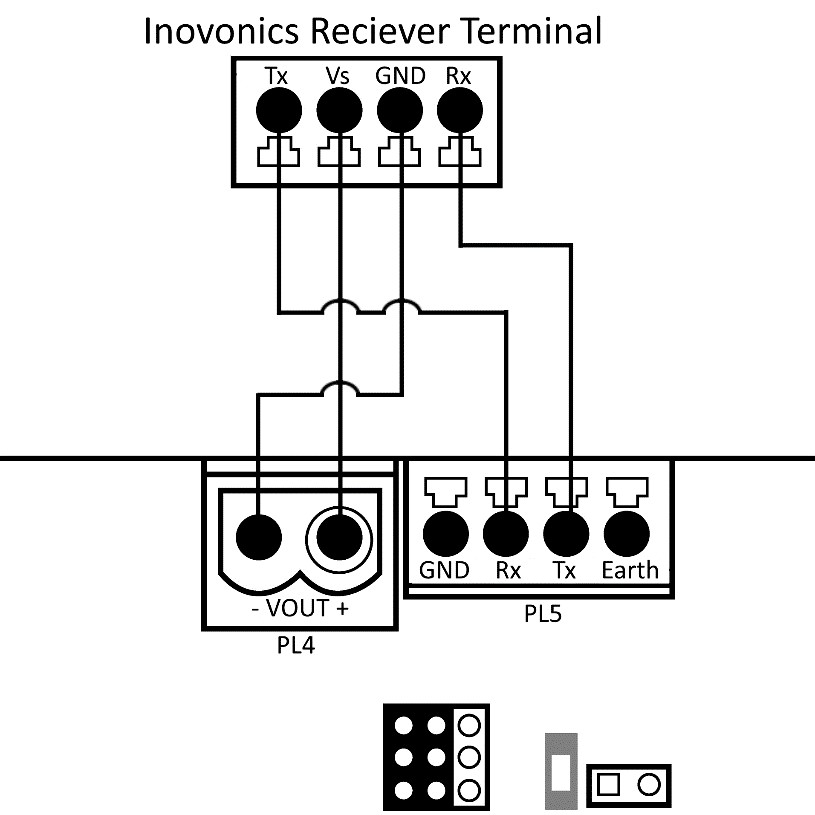

Wiring the Inovonics Receiver to the S1000.
